  • Page 1 User Manual Model ID: ROGUEOUTCAST1BEAMWASH...
  • Page 2 Edition Notes The Rogue Outcast 1 Beam Wash User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Rogue Outcast 1 Beam Wash as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered trademarks or trademarks of Chauvet &...
  • Page 3: Table Of Contents

    15CH/24CH/30CH/37CH ................... 17 Configuration (Settings) ................Pan Reverse ...................... 19 Tilt Reverse ......................19 Pan Angle......................19 Tilt Angle ......................19 Fan Mode ......................19 Display Backlight Timer..................19 Screen Reverse ....................19 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 4 Factory Reset..................... 20 Test Mode ..................... Auto Test......................21 Manual Test ....................... 21 System Information ..................Offset Mode (Zero Adjust)................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 5: Before You Begin

    2. This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 1 of 25...
  • Page 6: Safety Notes

    Make sure to replace the fuse with another of the same type and rating. • Never disconnect this product by pulling or tugging on the power cable. Page 2 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 7: Operation

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 3 of 25...
  • Page 8: Introduction

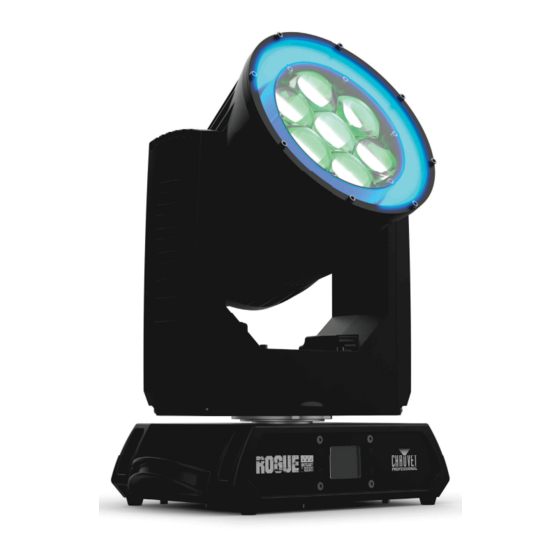

    2. Introduction Description The Rogue Outcast 1 Beam Wash is an IP65 moving head that outputs a bright, powerful light and offers twelve zones of LED control in the pixel-mappable outer ring. The outdoor-ready unit raises the bar in dynamic effect options with a standout zoom range of 3.9° to 55.3° giving it the spread to cover even the largest areas.
  • Page 9: Product Dimensions

    8.28 in 210 mm 10.12 in 15.75 in 257 mm 391 mm 13.03 in 331 mm 2.91 in 74 mm 11.92 in 7.58 in 192 mm 303 mm Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 5 of 25...
  • Page 10: Setup

    3. Setup AC Power The Rogue Outcast 1 Beam Wash has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
  • Page 11: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The Rogue Outcast 1 Beam Wash comes with 2 omega brackets to which you can directly attach mounting clamps (sold separately). Make sure the clamps are capable of supporting the weight of this product.
  • Page 12: Operation

    Red 4 Green 4 Blue 4 Red 5 Green 5 Blue 5 Red 6 Green 6 Blue 6 Red 7 Green 7 Blue 7 Red 8 Page 8 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 13 Normal screen display Screen Rev Inverted screen display Linear Square Dimmer Curve Set the dimmer curve I Squa SCurve Smooth Dimmer Speed Sets the dimmer speed Fast Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 9 of 25...
  • Page 14 _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Head Fan1–6 _ _ _ _ _ Shows the speed of the fans in rpm Page 10 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 15: Configuration (Dmx)

    085  089 Color 17 090  094 Color 18 095  099 Color 19 100  104 Color 20 105  109 Color 21 110  114 Color 22 Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 11 of 25...
  • Page 16: Background Color Chart

    164  200 Blue increases 001–254 Magenta 202  238 Red decreases 254–001 Blue 240  247 Color fade, fast to slow 248  255 Color jump, fast to slow Page 12 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 17: Led Macro Chart

    165  169 WHITE mode 065  069 Reserved for future use 170  174 FULL mode 050  074 Reset all* 175  179 Single-color calibration off Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 13 of 25...
  • Page 18: 64Ch/111Ch/135Ch

    000  255 0–100% – Fine red 000  255 Fine control (16-bit) Green 000  255 0–100% – Fine green 000  255 Fine control (16-bit) Page 14 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 19 Fine blue 5 000  255 Fine control (16-bit) – – Dimmer 6 000  255 0–100% – – Fine dimmer 6 000  255 Fine control (16-bit) Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 15 of 25...
  • Page 20 000  255 0–100% – Fine green 11 000  255 Fine control (16-bit) Blue 11 000  255 0–100% – Fine blue 11 000  255 Fine control (16-bit) Page 16 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 21: 15Ch/24Ch/30Ch/37Ch

    000  255 0–100% – Ring dimmer 000  255 0–100% – – Ring fine dimmer 000  255 Fine control (16-bit) – Center dimmer 000  255 0–100% Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 17 of 25...
  • Page 22 000  255 Fine control (16-bit) – – – Center white 000  255 0–100% – – – Center fine white 000  255 Fine control (16-bit) Page 18 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 23: Configuration (Settings)

    To set the dimmer speed: 1. Go to the Setup main level. 2. Select the Dimmer Speed option. 3. Select the dimmer speed, from Smooth or Fast. Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 19 of 25...
  • Page 24: Pulse Width Modulation

    See the USB Software Update section for the detailed instructions on how to update the Rogue Outcast 1 Beam Wash software using a USB C connection. Reset Function To reset specific functions or the entire product: 1. Go to the Setup main level.
  • Page 25: Test Mode

    Operation Test Mode Auto Test To have the Rogue Outcast 1 Beam Wash automatically test all functions one after the other: 1. Go to the Run Mode main level. 2. Select the Auto Test option. Manual Test To manually test an individual function of the Rogue Outcast 1 Beam Wash: 1.
  • Page 26: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fans with compressed air. Damage may result. Page 22 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 27: Technical Specifications

    15, 24, 30, 37, 64, 111 or 135 Ordering Product Name Item Name Item Code UPC Number Rogue Outcast 1 Beam Wash ROGUEOUTCAST1BEAMWASH 08011841 781462221898 UL 1573 CSA C22.2 No. 166 E113093 Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 23 of 25...
  • Page 28: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Page 24 of 25 Rogue Outcast 1 Beam Wash User Manual Rev. 4...
  • Page 29: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Rogue Outcast 1 Beam Wash User Manual Rev. 4 Page 25 of 25...
