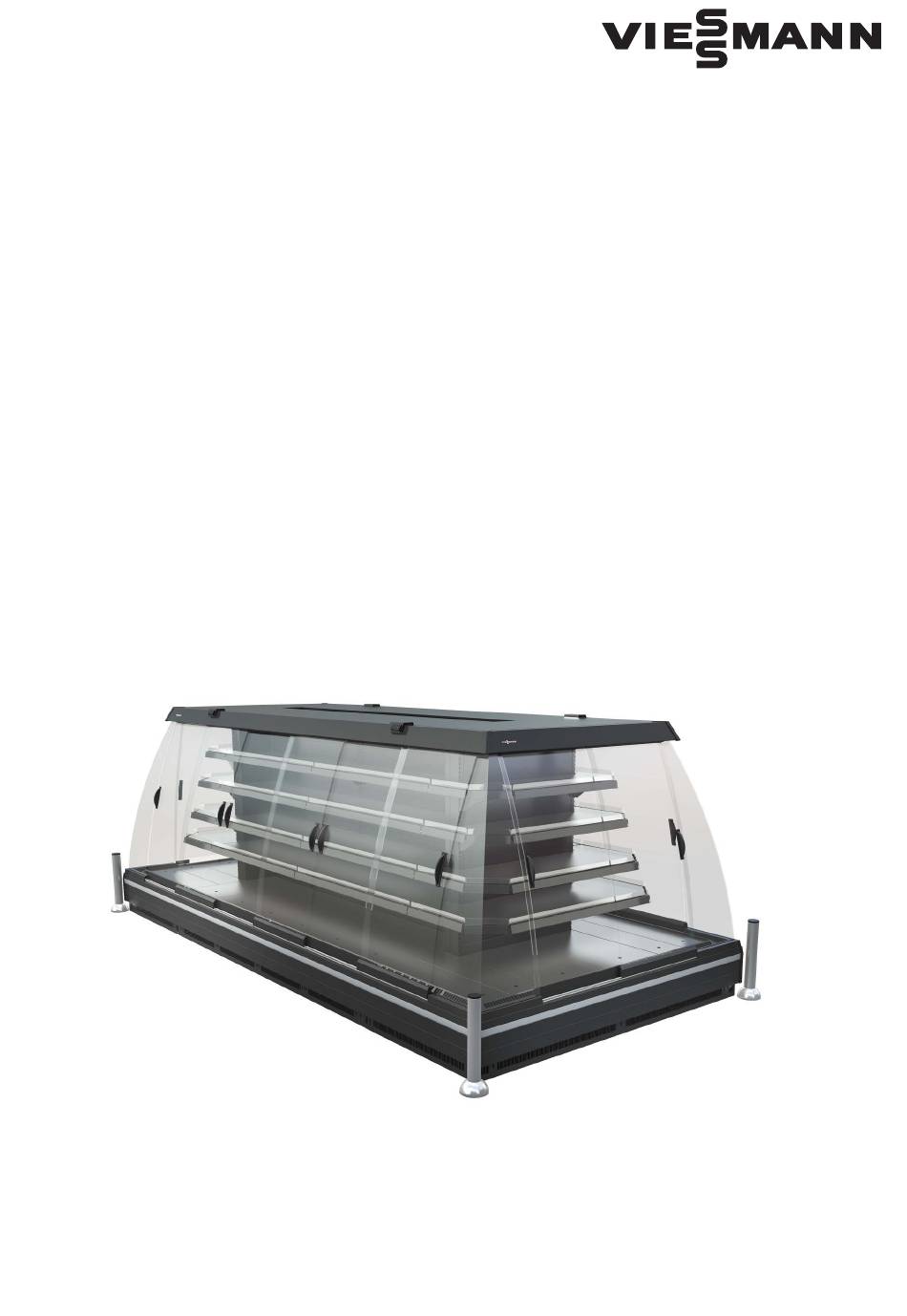

- Page 1 Installation Guide Multideck Tecto SV5 9606286_0...
- Page 2 Original instructions...
-
Page 3: Table Of Contents
EN DE ES FR PL RU NL FI SV NO DA EE LT LV CONTENTS Introduction ..............................3 1.1. Contents of delivery ........................... 3 Restrictions and warnings ..........................4 Preparations ..............................5 3.1. -
Page 4: Introduction
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 1. Introduction Read these instructions carefully. Tecto SV5 cabinets must be installed and started up in compliance with the manufacturer's instructions and local instructions and regulations. Note! Tecto SV5 cabinets are meant for indoor use only. -
Page 5: Restrictions And Warnings
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 2. Restrictions and warnings Due to fire hazard, only qualified technicians are allowed to install the system. No electrical equipment should be placed inside the cabinets unless specifically approved by the manufacturer. -
Page 6: Preparations
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 3. Preparations 3.1. Required documents Make sure you have the following documents: Layout-drawing of the store Electrical wiring diagram Confirmation of order 3.2. Required tools for multiplexing Make sure you have the following tools: Spirit level Laser level... -
Page 7: Unloading And Preparing Cabinets
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 4. Unloading and preparing cabinets Before you start: Check the layout drawing for the intended locations of the cabinets. Measure out and mark the locations of the cabinets on the floor. ... - Page 8 EN DE ES FR PL RU NL FI SV NO DA EE LT LV Remove any fibre remains from all cabinet ends and Take the end cabinet to its final installation position. Do not push the cabinets together yet. wipe clean with a damp cloth. Apply insulating tape on line cabinet ends.
-
Page 9: Preparing Electrical Junction Boxes
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 4.1. Preparing electrical junction boxes Junction boxes on the end cabinets are packed on the outside of the cabinet. Note! Handle the junction boxes and their cabling carefully to avoid damage to electrical parts! When assembling an SV5 panorama island, the end cabinets’... -
Page 10: Connecting Cabinets
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 5. Connecting cabinets Push the cabinets together. Make sure the guiding Remove the bottom plates at the end of line cabinets. pins and the canopy brace slide into their corresponding slots on the end cabinet. - Page 11 EN DE ES FR PL RU NL FI SV NO DA EE LT LV Connect line cabinet to end cabinet using screw and Insert a bolt through the angle brackets underneath washer. Insert bolt through the angle brackets on the the canopy and tighten with a nut.
-
Page 12: Drainage
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 6. Drainage 1. Cut drainage pipes to correct length. 2. Round the pipe ends. 3. Install to fittings. 4. Mount and fasten horizontally to the cabinet bottom. ... -
Page 13: Finishing
EN DE ES FR PL RU NL FI SV NO DA EE LT LV 7. Finishing 7.1. Installing bumper trim and corner pieces Assemble the plastic bumper trim. Insert the notch on the assembled plastic bumper trim Line up two bumper trim sections and slide the top into the groove on the bottom of the trim profile. -
Page 14: Installing Plinth Plates
EN DE ES FR PL RU NL FI SV NO DA EE LT LV Push the bumper trim plates on the other side onto corner piece. Do this at both corners of the panorama cabinet. Note! As the corner glass of a fully assembled and installed SV5 panorama island is exposed and vulnerable to collisions, it is strongly recommended to use protective 450 mm tall anti-collision posts in front of all corners. - Page 16 Telephone +47 3336 3500 www.viessmann.cz post@viessmann.no www.viessmann.no Denmark Viessmann Refrigeration Systems ApS Poland Telephone +45 4120 5420 Viessmann Systemy Chłodnicze Sp. z o.o. info.dk@viessmann.com Telephone +48 22 882 0020 www.viessmann.dk info.pl@viessmann.com www.viessmann.pl Estonia Viessmann Külmasüsteemid OÜ Russia Telephone +372 675 5150 Viessmann Refrigeration Systems info.ee@viessmann.com...
