5. MACHINE DESCRIPTION

5.1. Introduction

The electric automatic creasing and perforating machine serves for the processing of graphic material of up
to 450 mm in width. The creasing allows for easy folding of the paper, thereby making the machine
convenient for use in combination with a folding module. Waste-free perforation allows you to tear off the
paper easily.
13 14 11 12

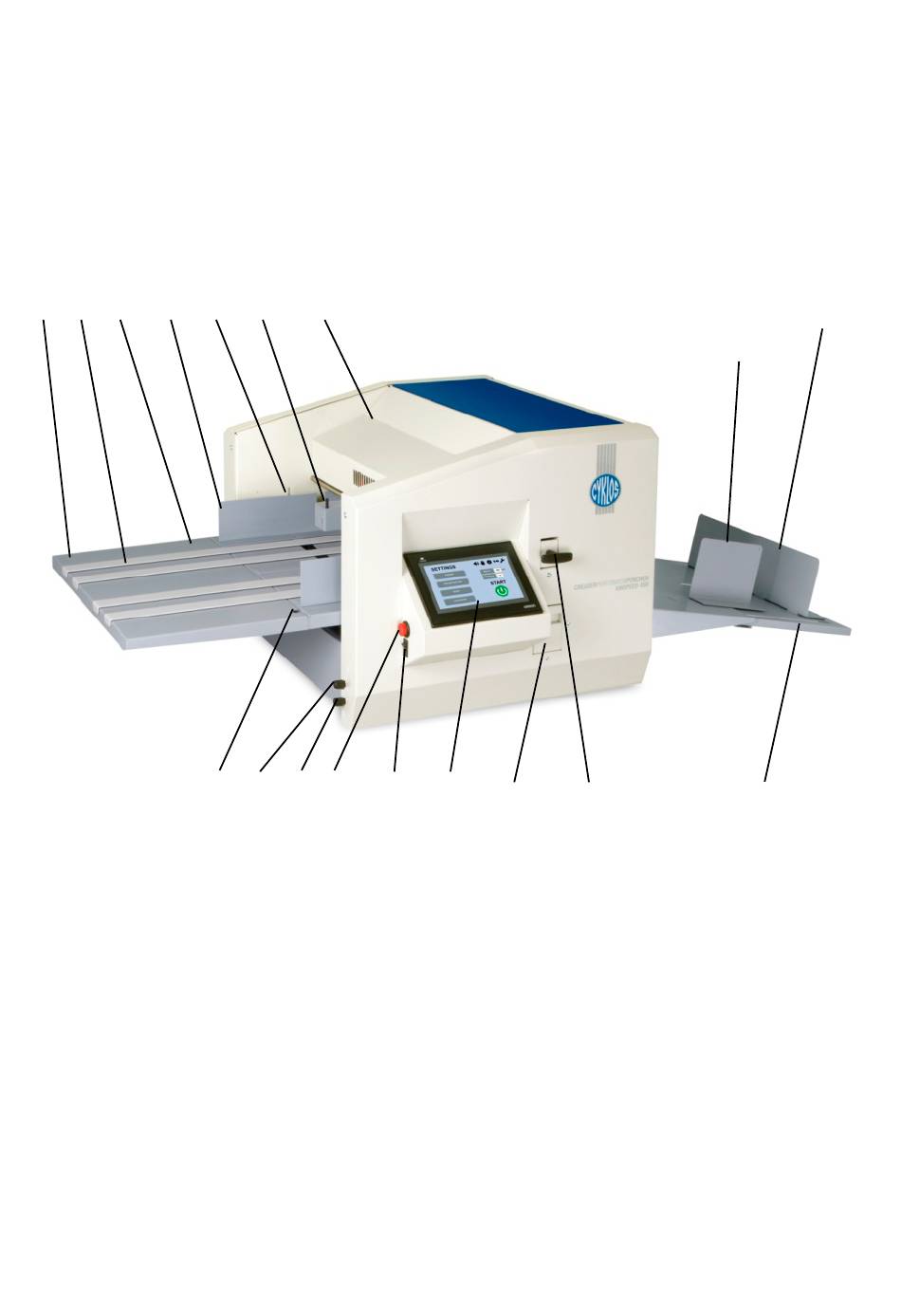

Fig. 1: View of the Machine
1 – Waste drawer
2 – STOP button
3 – Separator position regulation screw
4 – Electric switch
5 – Back stop
6 – Rear side guide
7 – Delivery table
8 – Table position regulation screw
9 – Side guide lock
10 – Side guides turning screw
11 – Front table
12 – Side guide
9 8 18
10 41 2
3 4 15
1
13 – Front auxiliary table
14 – Levelling strip
15 – Touch screen
16 – Front stop (Fig. 8)
17 – Exchangeable tool
18 – Front cover
19 – Plug socket (Fig. 2)
20 – Tool thrust regulation screw (Fig. 2)
21 – Needle bearing
22 – Safety ring
23 – Top bar (Fig. 1)
24 – Top bar bearing
