This document including its appendices is the exclusive intellectual property of Cyklos (producer
cooperative) Choltice. Any other use (copying, distribution, or sale) is possible only with the approval of the
chairman of the cooperative
Operating Instructions

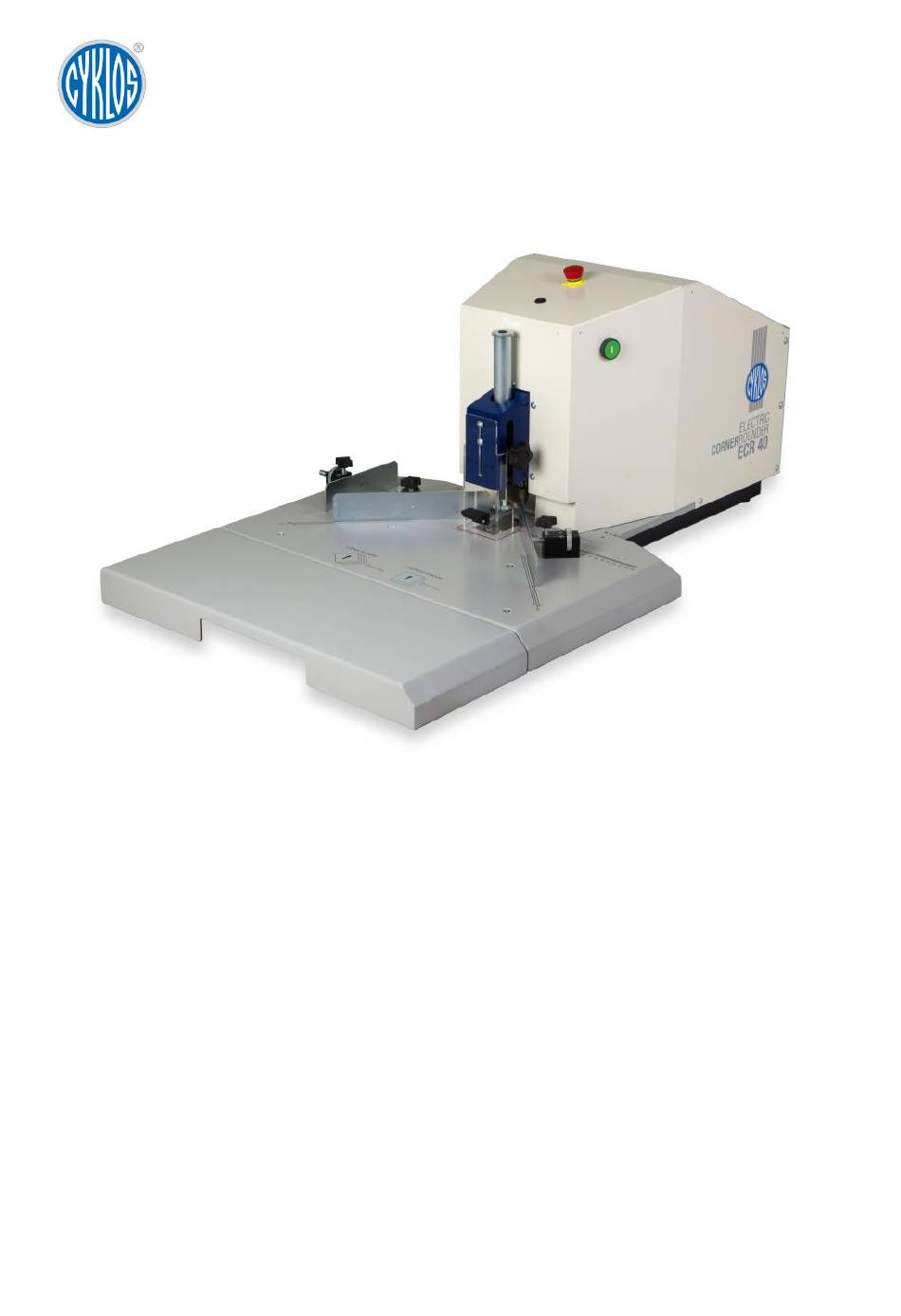

Electric Corner Rounder
ECR 40
Warning
Valid from serial number:
202135648
Issue No.
1
Sheets
15
Advertisement
Table of Contents
Related Manuals for Cyklos ECR 40
Summary of Contents for Cyklos ECR 40
- Page 1 Electric Corner Rounder ECR 40 Warning This document including its appendices is the exclusive intellectual property of Cyklos (producer cooperative) Choltice. Any other use (copying, distribution, or sale) is possible only with the approval of the chairman of the cooperative...
-
Page 2: Table Of Contents
Operating Instructions | ECR 40 CONTENT 1. Introduction................................... 1 2. Safety risks ..................................2 2.1 Hazard warning ..............................2 2.2 Health and safety at work in general ........................2 3. Warnings ..................................3 4. Technical parameters ..............................4 5. Machine description ..............................5 5.1. -
Page 3: Safety Risks
Operating Instructions | ECR 40 The design of the machine complies with Directive 98/37/EC of the European Parliament and of the Council. If all the instructions in this manual are followed, you will be satisfied with the accuracy and performance of the machine. -
Page 4: Warnings
Operating Instructions | ECR 40 'Declaration of conformity of machinery' means the document by which the manufacturer certifies that the machinery in question is in conformity with the requirements of Directive 98/37/EC of the European Parliament and of the Council and the harmonised technical standards. Directive 98/37/EC of the European Parliament and of the Council is the document formulating the generally applicable essential health and safety requirements for machinery operated by a user within the EEA. -
Page 5: Technical Parameters
Operating Instructions | ECR 40 4. TECHNICAL PARAMETERS a) Maximum working width 520 mm 80 – 400 g/m² b) Recommended paper grammage c) Min. sheet size 85 x 55 mm d) Max. stock capacity for corner rounding 40 mm e) Max. stock capacity for calendar punching will be specified f) Max. -
Page 6: Machine Description
Operating Instructions | ECR 40 5. MACHINE DESCRIPTION 5.1. Introduction The ECR 40 electric corner rounder is a machine whose primary function is to round corners on prepared paper. Fig. 1: View of the Machine 1) START button (starting the cycle – on both sides) 2) Emergency STOP button 3) SERVICE MODE button –... -
Page 7: Installation / Tools Replacement
Operating Instructions | ECR 40 10) Tray 11) Tray extension 12) Plastic protective cover 13) Lower tool – Fig. 3 14) Upper tool – Fig. 3 15) Setting angle – Fig. 3 16) Locking screw of paper holder 17) Side guide for calendar punch (not part of the standard equipment) – Fig. 6... - Page 8 Operating Instructions | ECR 40 5) Unscrew the screws from the Upper tool (14) and remove the tool. 6) Prepare the desired other tool and assemble it starting from the Upper tool (14), attaching it with the screws and tightening it firmly.
-
Page 9: Installation And Setting Of The Machine
Operating Instructions | ECR 40 Fig. 4: Interchangeable tools INTERCHANGEABLE TOOLS ON CUSTOMER'S ORDER POS. PRODUCT CODE DESCRIPTION 556 49 273 TOOL R=4 556 49 267 TOOL R=6 556 49 266 TOOL R=9 556 49 265 TOOL R=12 9,10 556 49 264... -
Page 10: Machine Preparation For Corner Rounding
Operating Instructions | ECR 40 6.1 Machine preparation for corner rounding Installing the components needed for rounding corners (according to Figure 5). Place the aluminium cubes of the side guides (8) onto the holes with the pins and fix them by screws to the table (10). Using the positioning wheel (19) of the side guide, set the guides according to the radius of the tool on its radius line. -
Page 11: Setting Of Paper Holder
Operating Instructions | ECR 40 6.3 Setting of paper holder Loosen the paper holder (7) with the locking screw (16), place the lower edge of the paper holder approx. 10 mm below the blade of the upper tool (14) and tighten the locking screw (16). -
Page 12: Setting The Guides According To The Angle
Operating Instructions | ECR 40 6.5 Setting the guides according to the angle Install and adjust the guides according to chapter 6.1 and then loosen the locking screw (20) on both guides. Position the setting angle (15) between the guides so that the edge of the angle is aligned with the edge of the lower tool (13), then tighten the locking screw (20) on the guides. -
Page 13: Working Cycle Of The Machine
Operating Instructions | ECR 40 563 59 813 CALENDAR PUNCHING SET POS. PRODUCT CODE NAME 556 59 821 CALENDAR GUIDE 563 27 350 CALENDAR TOOL To set the machine for calendar punching (8), you need to reposition the guides according to chapter 6.2. - Page 14 Operating Instructions | ECR 40 Fig. Both START buttons must be pressed simultaneously Conditions to be met: Press both buttons at the same time within 0.5 seconds Hold the buttons for the entire cycle before the cycle completes and the tool returns to the top...
-
Page 15: Error Messages
Operating Instructions | ECR 40 Fig. 14: Working cycle – calendar punching 8. ERROR MESSAGES LED indication (5): - - .. Short red flash (approx. 0.2s) Long red flash (approx. 0.8s) Errors are machine faults, unauthorised operating conditions and indications of special operating conditions. -
Page 16: Machine Disposal
Operating Instructions | ECR 40 Faulty operating conditions: 1. Pressed LEFT button for more than 0.5 s 2. Pressed RIGHT button for more than 0.5 s This is a condition where the right button is not pressed within 0.5 seconds of pressing the left button (and vice versa), or the button is still pressed after the work cycle is complete.
