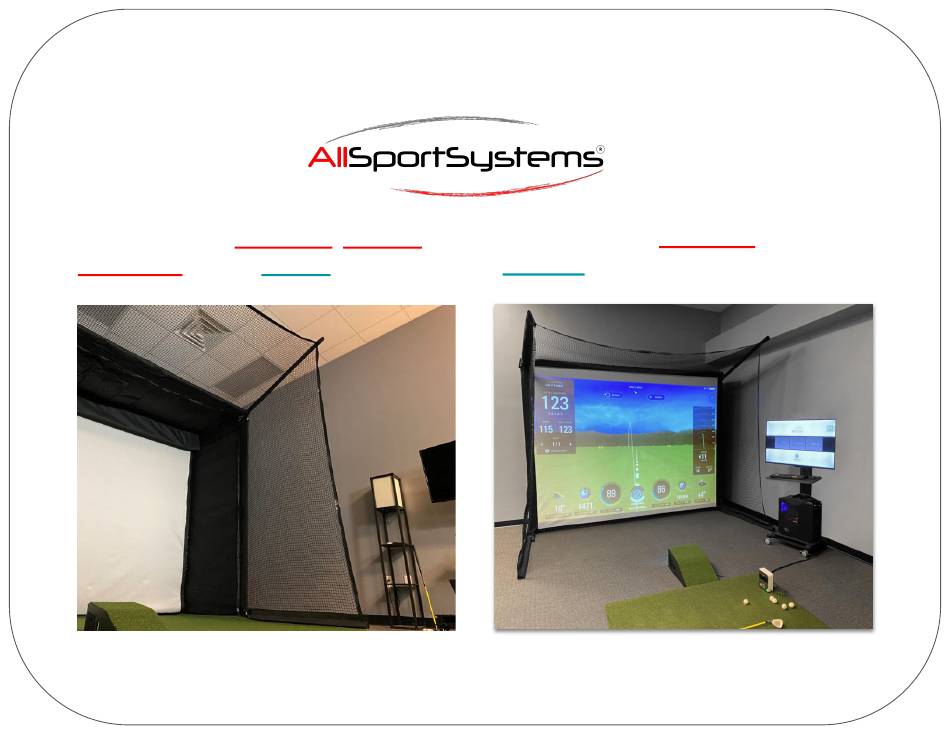

- Page 1 SkyGuard™ & SkyGuardPlus™ External Netting Installation Guide SkyGuard™ for MicroBay begins SkyGuard™ for SuperBay, Bay, StudioBay begins Page 3 Page 11 10/24/2023...
-
Page 2: Important Warning
IMPORTANT WARNING USE THIS PRODUCT AT YOUR OWN RISK. NO CLAIM IS MADE AS TO ITS SAFETY, FITNESS, OR RELIABILITY FOR ANY PURPOSE. HITTING GOLF BALLS IN AN INDOOR ENVIRONMENT IS EXTREMELY DANGEROUS! ALWAYS EXERCISE CAUTION WHEN USING YOUR SYSTEM. WE RECOMMEND HITTING 'ALMOST... - Page 3 SkyGuard™ Parts List SuperBay, Bay, StudioBay Netting: Brackets 2 x SkyGuard Brackets 1 x Top net ● 2 x Side nets (SkyGuardPlus™ only) ● Fabric parts: 2 x blackout arm sleeves ● 2 x weight pockets (SkyGuardPlus™ only) ● 6 x U-bolts & nuts ●...
- Page 4 Install SkyGuard™ Brackets for SuperBay, Bay, StudioBay For clarity blackout wrapper (already installed) not shown. Replace eye-bolt with hex bolt on 3-Way connector Use U-bolts and nuts to attach brackets to front of enclosure With SkyBridge Configuration Nuts should be snug and secure,...
- Page 5 Attach Strut Arms to Brackets for SuperBay, Bay, StudioBay For clarity blackout wrapper (already installed) not shown. ½” nut ¼” nut Insert Strut Nuts Strut Arms attach to INSIDE of brackets 3 height positions Use ½” bolt and ¼” bolt to attach arm to bracket...
- Page 6 Wrap Strut Arms 2 X Blackout Arm Sleeves ● Wrap sleeves around arms and velcro closed...
- Page 7 Attach Side Nets (SkyGuardPlus™ only) ● Position SkyGuard Strut Arms at the desired angle. ● Extend netting to the highest point of arm while keeping netting horizontal to floor. ○ You will likely have extra netting on floor. ● Align and attach to velcro on bay while using zip ties to attach netting to strut arms.
- Page 8 Attach Weight Pockets to side nets (SkyGuardPlus™ only) ● Place extra netting and heavy object (not included) such as a piece of strut channel, EMT pipe or chain in weight pockets and velcro closed through netting.
- Page 9 Attach netting to ● Netting should be snug but not velcro on overly tight. inside of enclosure ● Stretching the net too tightly SkyGuardPLUS™ will cause arms to overly bend (top and side netting) inward. SkyGuard™ (top netting only)
- Page 10 SuperBay, Bay, StudioBay instruction begins Page 3 MicroBay instruction begins Page 11...
- Page 11 SkyGuard™ Parts List MicroBay Netting: Brackets 2 x SkyGuard Brackets 1 x Top net ● 2 x Side nets (SkyGuardPlus only) ● Fabric parts: 2 x blackout arm sleeves ● 2 x weight pockets (SkyGuardPlus only) ● 6 x U-bolts & nuts ●...
- Page 12 Install SkyGuard™ Brackets for Microbay For simplicity blackout wrapper, already installed, is not shown here bolts Use U- and nuts to attach brackets to enclosure on each side 17.5” With SkyBridge 17.5” Do not overtighten. Nuts Configuration should be snug and secure, without bending the bracket.
- Page 13 Attach Strut Arms to Brackets for MicroBay For simplicity blackout wrapper, already installed, is not shown shown here ½” nut ¼” nut Insert Strut Nuts Arms attach to OUTSIDE Use ½” bolt and ¼” bolt of brackets to attach arm to bracket 3 height positions...
- Page 14 Wrap Strut Arms 2 X Blackout Arm Sleeves ● Wrap sleeves around arms and velcro closed...
- Page 15 Attach Side Nets (SkyGuardPlus™ only) For each side: ● Position SkyGuard Strut Arms at the desired angle. ● Extend netting to the highest point of arm while keeping netting horizontal to floor. ○ You will likely have extra netting on floor.
- Page 16 Attach Weight Pockets to side nets (SkyGuardPlus™ only) ● Place extra netting and heavy object (not included) such as a piece of strut channel, EMT pipe or chain in weight pockets and velcro closed through netting.
- Page 17 MicroBay while using zip ties to attach netting to strut arms. ● Netting should be snug but not overly tight. SkyGuardPLUS™ (top and side netting) ● Stretching the net too tightly will cause arms to overly bend inward. SkyGuard™ (top netting only)
- Page 18 Your SkyGuard™ System is ready for Golf! Double check that everything is secured in place and enjoy!
