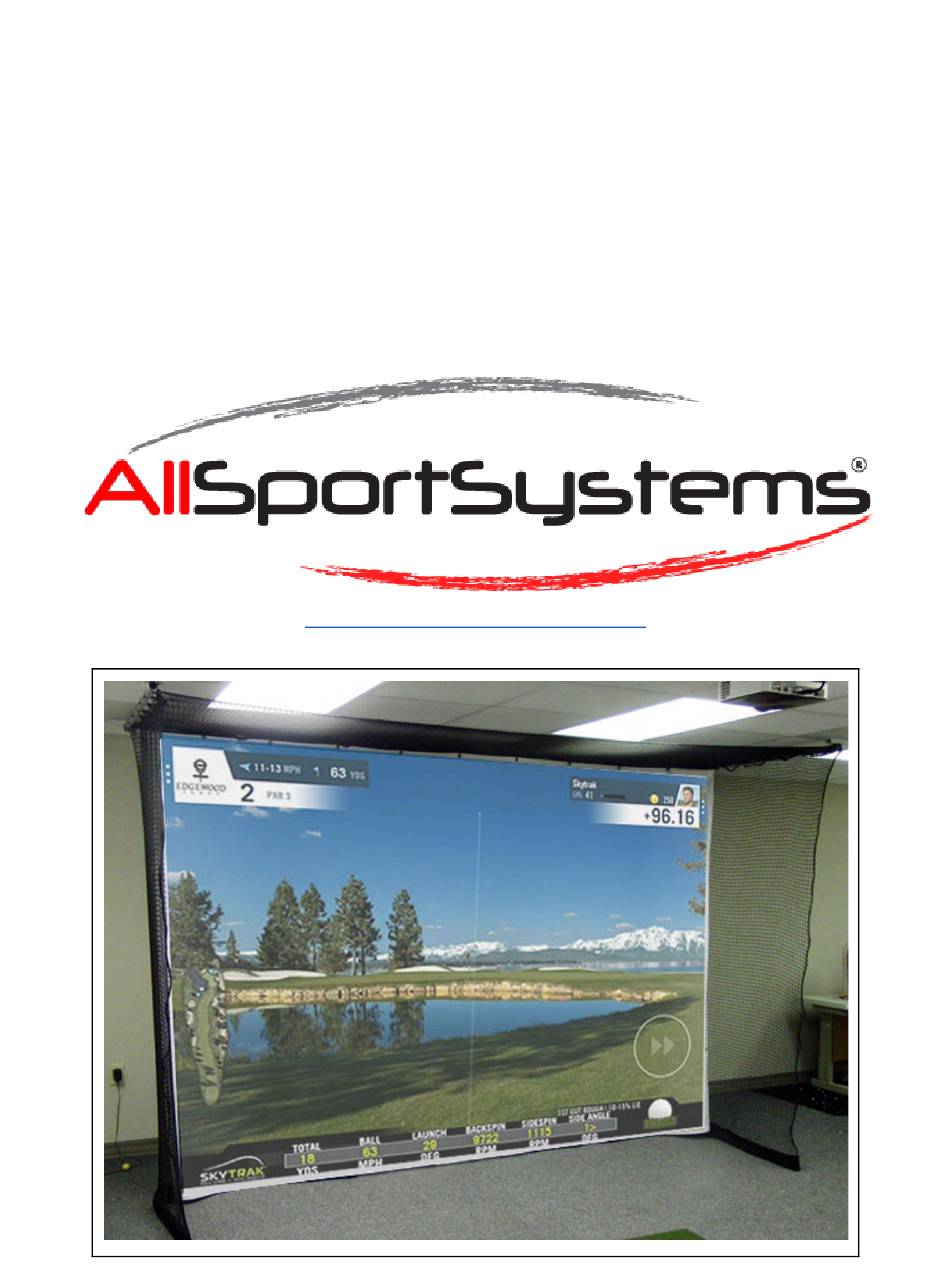

- Page 1 SETUP GUIDE FOR THE HANGING MINIBAY™ and SUPERBAY™ Golf Simulator Screen Systems www.allsportsystems.com...
- Page 2 Page 2 of 15 Rev 3/1/2018...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION What’s Included: Additional Items Needed: Tools/Equipment needed: Obtain And Cut Metal Poles: Step 1 - Add Extender Poles (SuperBay only) Step 2 - Attach Ceiling Brackets and attach poles Step 2 - Hang Netting Step 3 - Install Chain Pockets Step 4 - Hang Screen Attached screen to width pole Attach Sides of Screen... -
Page 4: Introduction
INTRODUCTION The following instructions apply to the hanging MiniBay and hanging SuperBay. The below diagram provides an overview of the Hanging system, showing the SuperrBay. The only difference between MiniBay and SuperBay is width. The MiniBay does not require the use of the Inline Coupler or Extende pole, otherwise the setup is identical. -
Page 5: What's Included
What’s Included: Cable Ties Toggle bolts and lag screws to attach brackets to ceiling. Lag screws are used for studs, toggle bolts when attaching to drywall with no stud. At least one side of the ceiling bracket should be anchored to a ceiling joist. -
Page 6: Tools/Equipment Needed
Tools/Equipment needed: ● Two six foot step ladders ● Screwdriver ● Hacksaw/Tubing Cutter (or ask the store to cut the EMT poles for you) ● Scissors/Utility Knife ● Measuring Tape ● Pencil ● Joist/Stud finder ● Power Drill to tap holes in ceiling for ceiling brackets. Obtain And Cut Metal Poles: Poles used to hang the screen and netting are not included. -
Page 7: Step 1 - Add Extender Poles (Superbay Only)
Step 1 - Add Extender Poles (SuperBay only) ● For SuperBay only, add I nline Coupler a nd Extender pole to the Width pole. Page 7 of 15 Rev 3/1/2018... -
Page 8: Step 2 - Attach Ceiling Brackets And Attach Poles
Step 2 - Attach Ceiling Brackets and attach poles Measure and position ceiling brackets to hold the width pole and two side poles into a “U” shape on the ceiling. It is recommended that netting and screen be hung no closer than 24” from the nearest wall. -
Page 9: Step 2 - Hang Netting
Step 2 - Hang Netting ● Layout netting locating the TOP REAR CORNERS ● With your assistant and step ladder, use cable ties to attach Top Rear Corners to the side and width poles. ● Next attach leading edge of the netting to the front of the side depth poles, ●... -
Page 10: Step 3 - Install Chain Pockets
Step 3 - Install Chain Pockets Chain Pockets are used to keep netting in place. They are black sleves with velcro on either side. You will recieve 4 ea pockets, 1 for each side and two for the width of the enclosure. ●... -
Page 11: Step 4 - Hang Screen
Step 4 - Hang Screen Attached screen to width pole Your screen will attached to the width pole with cable ties.. ● Do not tighten screen all the way up to the pole. To help void sag, attach the screen as shown in the diagram below. -
Page 12: Attach Sides Of Screen
Attach Sides of Screen ● Attach the bungee cords between the side grommets on your screen and the chain inside the chain pockets. This will create downward tension on the screen to help keep it flat, and will also assist with absorbing golf shots. Page 12 of 15 Rev 3/1/2018... -
Page 13: Optional Upgrades
OPTIONAL UPGRADES ShotDefender™ ● Wrap the ShotDefender™ cable around each of the side bars approximately 5 to 6 inches in front of the screen. ● Attach the hook end of the turnbuckle to the other end of the cable. ● Tighten the cable by twisting the turnbuckle causing the cable to shorten. It should have good tension. - Page 14 ● Attach the long black sleeve to the cable. Sleeve will open lengthwise via velco seam for easy installation. ● Place a 1 inch pvc pipe, cut to the width of your sreen, in the pocket of the shot defender for added weight in holding it down.
-
Page 15: Safety Precautions
SAFETY PRECAUTIONS With the screen installed your hitting bay is now complete and is ready for golf. SAFETY PRECAUTIONS We recommend that you position the sides of your enclosure no closer than 12” away from side walls or other objects. We also strongly recommend using “Almost Golf Balls”, or foam balls rather than real golf balls when hitting indoors.
