AllSportSystems, Inc.
2021
sales@allsportsystems.com
877-847-1280
www.allsportsystems.com

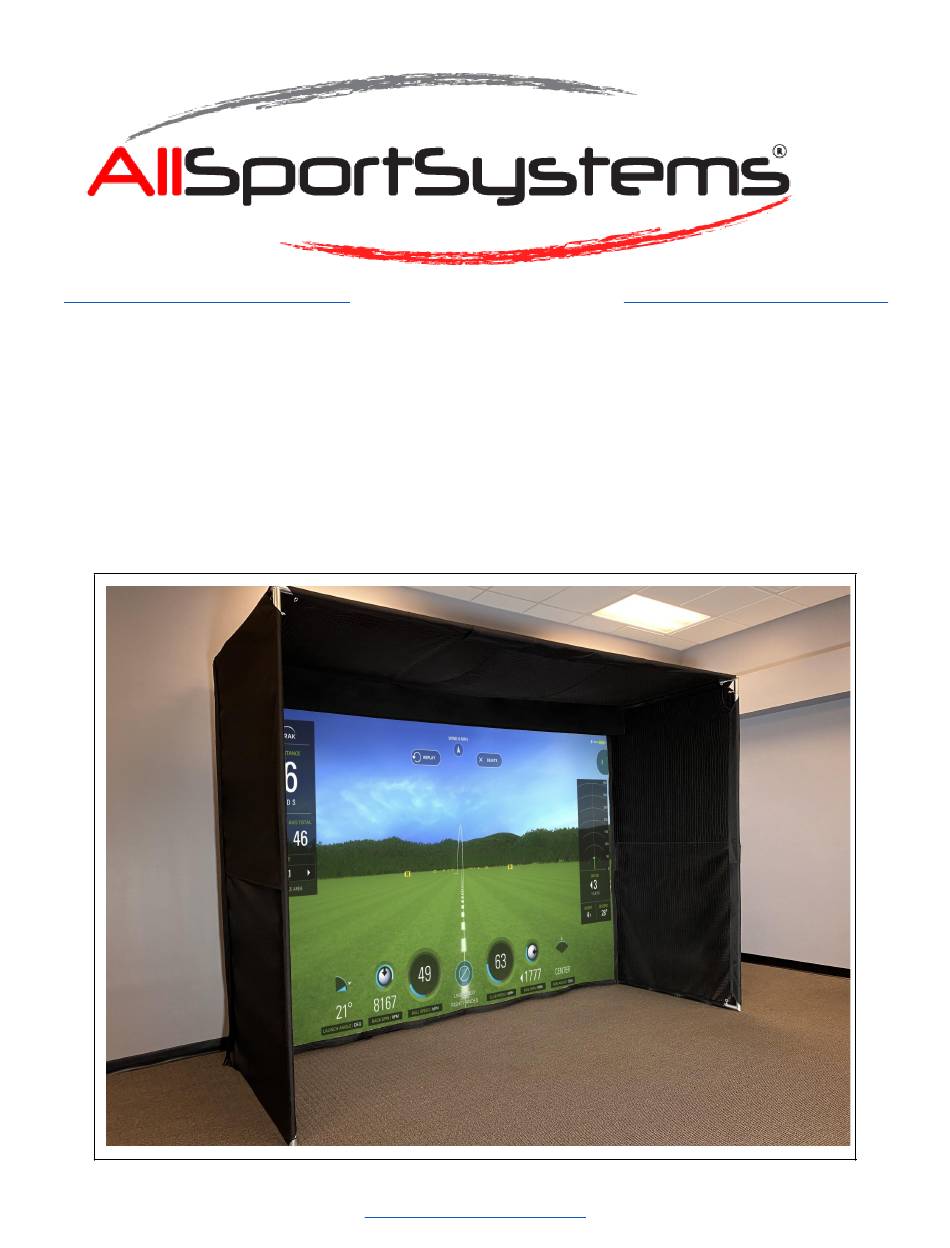

SETUP GUIDE FOR THE
SUPERBAY™
Golf Simulator Screen Systems
Page 1 of 39
Return to Table of Contents
Last Revised 8/5/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERBAY 10W and is the answer not in the manual?

Questions and answers

Related Manuals for AllSportSystems SUPERBAY 10W

Summary of Contents for AllSportSystems SUPERBAY 10W

  • Page 1 © AllSportSystems, Inc. 2021 sales@allsportsystems.com 877-847-1280 www.allsportsystems.com SETUP GUIDE FOR THE SUPERBAY™ Golf Simulator Screen Systems Page 1 of 39 Return to Table of Contents Last Revised 8/5/21...
  • Page 2 © AllSportSystems, Inc. 2021 Page 2 of 39 Return to Table of Contents Last Revised 8/5/21...

  • Page 3: Table Of Contents

    © AllSportSystems, Inc. 2021 Table of Contents ITEMS YOU WILL NEED MEASURING AND CUTTING EMT POLES ITEMS PROVIDED BY ALLSPORTSYSTEMS BUILDING THE FRAME INSTALL NETTING PROJECTION SCREEN INSTALLATION BLACKOUT™ PANEL INSTALLATION SAFETY PRECAUTIONS APPENDIX A - SideRite™ and ShotDefender™ Cable Assembly...

  • Page 4: Items You Will Need

    © AllSportSystems, Inc. 2021 For safety we recommend at least two persons to be on hand to assemble your enclosure. ITEMS YOU WILL NEED Tools/Equipment Six foot step ladder Screwdriver Hacksaw/Tubing Cutter (or ask the store to cut the EMT poles for you)

  • Page 5: Measuring And Cutting Emt Poles

    © AllSportSystems, Inc. 2021 MEASURING AND CUTTING EMT POLES Note: Corner brackets add about 3” to the depth, height and width of your enclosure, thus poles are cut 3” shorter than the enclosure dimension as shown below. If you have questions about the number of poles needed for custom sized bays call us at 877-847-1280 for assistance.

  • Page 6: Items Provided By Allsportsystems

    © AllSportSystems, Inc. 2021 ITEMS PROVIDED BY ALLSPORTSYSTEMS CONNECTOR KITS: Standard cage configurations do not include the SkyBridge™ span brackets. Customers who upgrade their enclosures with SkyBridge™ span brackets will NOT receive T-Connectors, as SkyBridge™ span brackets replace T-Connectors in your enclosure.
  • Page 7 © AllSportSystems, Inc. 2021 OPTIONAL UPGRADES: The following items are included only if you have purchased these specific upgrades. SkyBridge™ Span Brackets for strengthened screen pole (channel purchased separately) - see respective user guide for specific instructions for installation. SkyRailPLUS™ Sliding Golf Simulator Projector...

  • Page 8: Building The Frame

    © AllSportSystems, Inc. 2021 BUILDING THE FRAME NOTE: SkyRailPlus™ and SkyBridge™ upgrades receive a different configuration of connectors. The charts on Page 9 and Page 10 detail the connector parts shipped with these upgrades. Also be sure to review the respective setup guide for these upgrades.
  • Page 9 © AllSportSystems, Inc. 2021 Frame Diagram for OPTIONAL SkyBridge Upgrade Refer to this diagram often to identify connectors and poles needed for the step by step instructions on the following pages. Note that the 10 Wide SuperBay™ does not use couplers. Couplers are used to extend the length of the width poles beyond 10 feet wide.
  • Page 10 © AllSportSystems, Inc. 2021 Frame Diagram for OPTIONAL SkyRailPLUS Upgrade Refer to this diagram often to identify connectors and poles needed for the step by step instructions on the following pages. Note that the 10 Wide SuperBay™ does not use couplers. Couplers are used to extend the length of the width poles beyond 10 feet wide.
  • Page 11 © AllSportSystems, Inc. 2021 Step 1 - Build the frame If hitting bay is closer than 6” to ceiling see APPENDIX B - BUILDING THE FRAME (For Low Ceilings). Two persons recommended and use of a stepladder. Position eye bolts inward. Verify correct width and depth when tightening connectors (may need to back poles slightly out of connectors to reach correct dimension).
  • Page 12 © AllSportSystems, Inc. 2021 Step 2 - Position Screen Pole Now slide the Screen Pole forward until it sits approximately 4 feet from the front pole leaving about 12” of space between the rear of the enclosure and the impact screen. Tighten the T-Connectors.
  • Page 13 © AllSportSystems, Inc. 2021 Step 3 - Check all connections and verify dimensions ● Proper positions of the poles and brackets for the SuperBay™ frame are shown below. Note: The 10 Wide SuperBay™ does not need extender poles. The screen pole should be 12”...
  • Page 14 © AllSportSystems, Inc. 2021 Step 4 - Install BlackOut™ Pole Sleeves In the rare case that the BlackOut Wrapper Kit does not ship with the rest of the bay continue with the rest of the installation. You have the option of using your system until the BlackOut™ kit arrives.

  • Page 15: Install Netting

    © AllSportSystems, Inc. 2021 INSTALL NETTING Step 5 - Place netting over enclosure Layout netting locating the TOP REAR CORNERS With your assistant walk the netting to the rear of the enclosure Using step ladders pull the netting over the outside of the enclosure, covering the back top and sides of the enclosure.
  • Page 16 © AllSportSystems, Inc. 2021 Step 6 - Tighten Netting Pull the top and sides of your netting as tightly as possible. Tight netting will stop stray golf balls with minimal flexing. Step 7 - Handling excess netting Any extra netting along the bottom can be “bundled”along the bottom and tied in place with cable ties along the bottom frame.
  • Page 17 © AllSportSystems, Inc. 2021 Step 8 - Install baffle net Hang the baffle net from the Screen pole, which should be located about 12” from the back of the enclosure. Connect the sides of the baffle net to the outside netting with cable ties in several places along each side.

  • Page 18: Projection Screen Installation

    © AllSportSystems, Inc. 2021 PROJECTION SCREEN INSTALLATION Step 9 - Install SideRite™ tension kit Note: The SideRite™ tension kit comes standard and will keep tension on your screen and waves to a minimum. Cables first need to be assembled, See APPENDIX A - SideRite™...
  • Page 19 © AllSportSystems, Inc. 2021 Enclosure showing SideRite™ Cables, netting, and Blackout™ Sleeves. Page 19 of 39 Return to Table of Contents Last Revised 8/5/21...
  • Page 20 DO NOT USE BLEACH OR PLACE SCREEN IN DRYER IDENTIFY THE FRONT SIDE of your screen: The AllSportSystems logo will be sewn into the bottom left face of your screen.The smooth face of the grommets will always be on the front side of your screen.
  • Page 21 Step 10 - Hang Screen The Screen Pole should be approximately 12 inches from the back of the enclosure. Screen Front: Be sure to hang the screen with the AllSportSystems logo or smooth side of grommets facing toward the front of the enclosure.
  • Page 22 © AllSportSystems, Inc. 2021 Step 11 - Attach screen to SideRite™ tensioning kit The SideRite™ cables should already be installed. Loosely thread cable ties through the side grommets and around both of the SideRite™ cables. Tip: Do not tighten the zip ties until they have been installed on both sides of the screen.
  • Page 23 © AllSportSystems, Inc. 2021 Step 12 - Install ShotDefender™ cabling Note: ShotDender™ will hang below SkyRailPLUS™ if added as an option. The ShotDefender™ hangs on a tension cable about 6 inches in front of the screen. Any shots hit toward the screen pole will be caught by the ShotDefender™, eliminating the risk of a ricochet.

  • Page 24: Blackout™ Panel Installation

    © AllSportSystems, Inc. 2021 BLACKOUT™ PANEL INSTALLATION Step 13 - Install BlackOut Panels You will receive six (6) panels for dressing out your SuperBay™. Customers with the SkyRailPLUS will have a notched Center Panel. Install panels in the number order shown.
  • Page 25 © AllSportSystems, Inc. 2021 Angled Side Netting (OPTIONAL UPGRADE) ● Attach your angled side netting using the velcro attached to the trim. Velcro will attach to the exposed velcro along the front edge of your side panels. ● Add weights to the two included sandbags.

  • Page 26: Safety Precautions

    © AllSportSystems, Inc. 2021 IF YOU HAVE PURCHASED SKYGUARD™ NETTING, YOU CAN NOW BEGIN TO ATTACH THE NETTING TO THE ARMS AND CAGE. SAFETY PRECAUTIONS The SuperBay™ is designed for the back of the enclosure to sit directly against a wall. We recommend the sides of the enclosure be no closer than 12”...

  • Page 27: Appendix A - Siderite™ And Shotdefender™ Cable Assembly

    © AllSportSystems, Inc. 2021 APPENDIX A - SideRite™ and ShotDefender™ Cable Assembly When installing the SideRite™ Screen Tension Kit and/or the ShotDefender™ Safety Valance the cabling must first be assembled. SideRite™ Tension Kit: Requires two cables; two turnbuckles and 8 wire clips.
  • Page 28 © AllSportSystems, Inc. 2021 Step 1 - Attach Cable to Turnbuckle Follow the steps below to attach one end of the cable to eye of turnbuckle: (1) If the end is frayed or unraveled, tape cable (2) Cut the cable at the tape so that cable end is as shown with electrical tape.
  • Page 29 © AllSportSystems, Inc. 2021 Step 2 - Add eye and trim cable to proper length Complete cable assembly by first determining the proper length of the cable, forming the eye and then trimming off extra cable. Follow the steps below …...

  • Page 30: Appendix B - Building The Frame (For Low Ceilings)

    © AllSportSystems, Inc. 2021 APPENDIX B - BUILDING THE FRAME (For Low Ceilings) NOTE: This method is recommended for situations where the enclosure height is very close to your ceiling height. For safety reasons, we recommend two persons for assembly. Refer to this diagram to identify connectors and poles needed for the step by step instructions on the following pages.
  • Page 31 © AllSportSystems, Inc. 2021 Step 1 - Top Rear Width Pole For SuperBay™ greater than 10 feet wide, add Couplers to extend each of the four Width poles. Position a Width pole on the ground near your back wall. This will become your top rear width pole.
  • Page 32 © AllSportSystems, Inc. 2021 Step 2 - Two Rear Height Poles Leaving the pole on the ground, connect two Height poles to the 3-Way Corners. Add two more 3-Way Corners to the other end of the Height Poles, but do not fully tighten these.
  • Page 33 © AllSportSystems, Inc. 2021 Step 3 - Stand Rear Height Poles Tip: Leaving the bottom 3-Way Corners loose will allow you to spin them when tilting the rear structure into place. Once it is in place you can then spin them into their proper orientation so as to install the bottom Width Pole.
  • Page 34 © AllSportSystems, Inc. 2021 Step 4 - Add Bottom Rear Width Pole Next add the Bottom Width Pole. Verify Dimensions: Use a tape measure to verify correct width dimension and then tighten connectors. You may need to back the poles slightly out of the connectors to reach the correct dimension.
  • Page 35 © AllSportSystems, Inc. 2021 Step 5 - Add Bottom Depth Poles Insert two Depth poles into the Bottom Rear 3-Way Corners and tighten these connectors. The structure will now stand on its own. Page 35 of 39 Return to Table of Contents...
  • Page 36 © AllSportSystems, Inc. 2021 Step 6 - Add Top Depth Poles and Screen Pole Insert the two remaining Depth poles into the Top Rear 3-Way corners and tighten these connectors. Slide a T-connector onto the front of each top Depth pole.
  • Page 37 © AllSportSystems, Inc. 2021 Step 7 - Add Front Height Poles With the front height poles - place 3-Way corners on one end and L Corners on the other end and connect the Height poles to the structure as shown with the three-way on top and L Corners on the bottom.
  • Page 38 © AllSportSystems, Inc. 2021 Step 8 - Add Front Top Width Pole Add the last width pole to the front of the enclosure. For SkyRailPlus™ configurations see SkyBridge™ setup guide for instructions on installing this pole at the front of the cage.

  • Page 39: Appendix C - Emt Pole Schematic

    © AllSportSystems, Inc. 2021 APPENDIX C - EMT POLE SCHEMATIC Page 39 of 39 Return to Table of Contents Last Revised 8/5/21...
