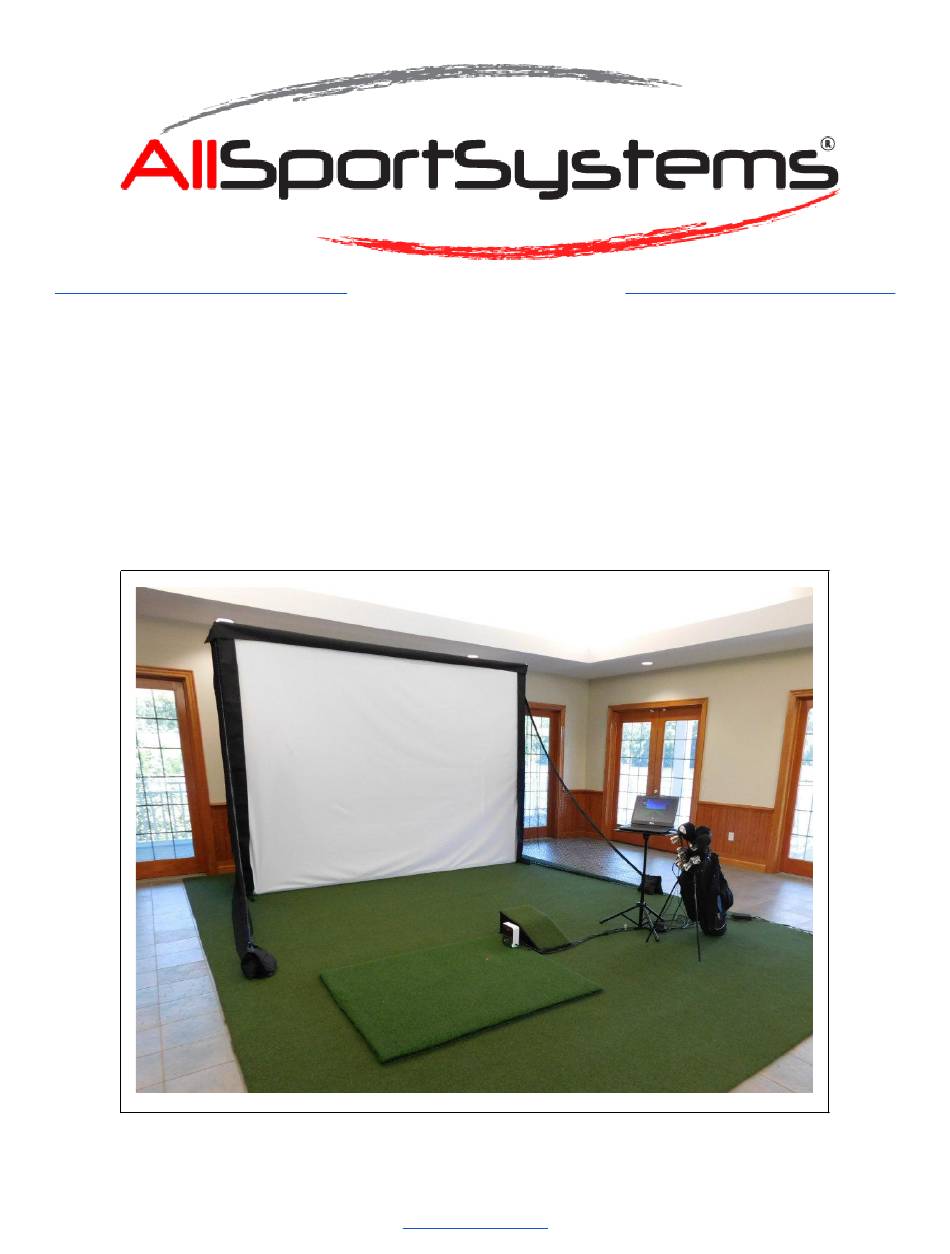

- Page 1 © AllSportSystems, Inc. 2021 sales@allsportsystems.com 877-847-1280 www.allsportsystems.com SETUP GUIDE FOR THE MICROBAY™ Golf Simulator Screen Systems Page 1 of 24 Table of Contents Last Revised 8/25/2021...
- Page 2 © AllSportSystems, Inc. 2021 Page 2 of 24 Table of Contents Last Revised 8/25/2021...
-
Page 3: Table Of Contents
© AllSportSystems, Inc. 2021 Table of Contents ITEMS YOU WILL NEED MEASURING AND CUTTING EMT POLES ITEMS PROVIDED BY ALLSPORTSYSTEMS BUILDING THE FRAME SCREEN INSTALLATION INSTALL THE BLACK OUT TRIM INSTALL ANGLED SIDE NETTING (Optional Upgrade) SAFETY PRECAUTIONS APPENDIX A - SideRite™ Cable Assembly... -
Page 4: Items You Will Need
© AllSportSystems, Inc. 2021 ITEMS YOU WILL NEED Tools/Equipment ● Six foot step ladder ● Screwdriver ● Hacksaw/Tubing Cutter (or ask the store to cut the EMT poles for you) ● Scissors/Utility Knife ● Measuring Tape ● Pencil Building Materials Not Included The following items are not included and must be obtained locally. -
Page 5: Measuring And Cutting Emt Poles
© AllSportSystems, Inc. 2021 MEASURING AND CUTTING EMT POLES NOTE: SkyBridge™ customers should first review the SkyBridge™ setup guide as it will reduce the number of EMT poles needed. The size of your MicroBay will determine the number of poles needed, see chart below. -
Page 6: Items Provided By Allsportsystems
© AllSportSystems, Inc. 2021 ITEMS PROVIDED BY ALLSPORTSYSTEMS CONNECTOR KITS: Standard cage configurations do not include the SkyBridge™ span brackets. However, if you have ordered the SkyBridge™ see the respective list below: OTHER ITEMS: Page 6 of 24 Table of Contents... -
Page 7: Building The Frame
© AllSportSystems, Inc. 2021 BUILDING THE FRAME Standard frame assembly shown below, see Step 1B if you have purchased SkyBridge™ Brackets. Step 1A - Standard Frame Assembly Diagram See Step 2 for frame assembly instructions. Note that couplers are only needed for MicroBay™... - Page 8 © AllSportSystems, Inc. 2021 Step 1B - OPTIONAL SkyBridge™ Upgrade Diagram Refer to this diagram if you have purchased the SkyBridge™ upgrade. See also the SkyBridge™ installation guide. See Step 2 for frame assembly instructions. Note that EMT and Strut Couplers are only needed for a MicroBay™ greater than 10 feet wide.
- Page 9 © AllSportSystems, Inc. 2021 Step 2 - Build the frame Two persons recommended and use of a stepladder. Position eye bolts inward. Verify correct width and depth when tightening connectors (may need to back poles slightly out of connectors to reach correct dimension).
- Page 10 © AllSportSystems, Inc. 2021 Step 3 - Check All Connections And Verify Dimensions ● Proper position of the poles and brackets for the microbay frame are shown below. Note that the bottom legs will extend out 36” and the top 24”. Verify that all connectors are tight and outside dimensions are correct.
- Page 11 © AllSportSystems, Inc. 2021 Step 4 - Install The Black Leg Wrappers Wrap the legs with the Black leg wrapper sleeves. The sleeves will wrap around the legs and then velcro to themselves. Add the included 1” STIFF Adhesive Velcro to the top of your screen pole or strut.
-
Page 12: Screen Installation
© AllSportSystems, Inc. 2021 SCREEN INSTALLATION Step 5 - Install Cabling For Siderite™ Tension Kit Note: The SideRite™ tension kit comes standard and will keep tension on your screen and waves to a minimum. Cables first need to be assembled, See APPENDIX A - SideRite™... - Page 13 DO NOT USE BLEACH OR PLACE SCREEN IN DRYER IDENTIFY THE FRONT SIDE of your screen: The AllSportSystems Logo and smooth face of the grommets will always be on the front side. Additionally, velcro is sewn along the right and left edge of the screen front. Blackout side panels attach to this velcro (see Blackout installation section).
- Page 14 2021 Step 7 - Hang Screen Screen Front can be identified by the AllSportSystems logo on the bottom left corner of the screen, by the 2” Velcro sewn along the sides, and by the smooth grommet faces. DO NOT INSTALL THE SCREEN BACKWARDS! IT WILL SIGNIFICANTLY REDUCE THE LIFE OF THE SCREEN! Hang screen using cable ties.
- Page 15 © AllSportSystems, Inc. 2021 Step 8 - Attach screen to SideRite™ tensioning kit The SideRite™ cables should already be installed. Loosely thread cable ties through the side grommets and around both of the SideRite™ cables. Tip: Do not tighten the zip ties until they have been installed on both sides of the screen.
-
Page 16: Install The Black Out Trim
© AllSportSystems, Inc. 2021 INSTALL THE BLACK OUT TRIM Step 9 - Install Side Panels SIDE PANELS ARE INTERCHANGEABLE , AND CAN BE USED ON EITHER SIDE WITH OR WITHOUT SKYGUARD NETTING. Side panels are interchangeable and can be used on either side. - Page 17 © AllSportSystems, Inc. 2021 Step 11 - Install The Top Panel ● The Top Panel will velcro to the velcro strip that you installed along the top of your screen pole. ● After attaching it to the velcro on the front, loosely secure the back of the Top Panel to the upper back pole with the included zip ties.
- Page 18 © AllSportSystems, Inc. 2021 Step 12 - Install Back Panel (Optional Upgrade) This step only applies if you have purchased the BlackOut Rear Panel. The panel includes grommets along the top and sides. ● First, use cable ties to hang the Back Panel from the rear width pole.
-
Page 19: Install Angled Side Netting (Optional Upgrade)
© AllSportSystems, Inc. 2021 INSTALL ANGLED SIDE NETTING (Optional Upgrade) Step 13 - Install triangle side nets ● Attach Netting to Velcro along Side Panels. ● Extra netting at the top can drape underneath the Top Panel into the inside of the enclosure. -
Page 20: Safety Precautions
© AllSportSystems, Inc. 2021 SAFETY PRECAUTIONS If you have not purchased SkyGuard netting, we strongly recommend using “Almost Golf Balls” or foam balls rather than real golf balls when using your MicroBay. This is a safety recommendation only. The MicroBay screen is fully capable of handling full golf shots from real golf balls. -
Page 21: Appendix A - Siderite™ Cable Assembly
© AllSportSystems, Inc. 2021 APPENDIX A - SideRite™ Cable Assembly When installing the SideRite™ Screen Tension Kit the cabling must first be assembled. SideRite™ Tension Kit: Requires two cables; two turnbuckles and 8 wire clips. What’s Included: 2 ea Cables... - Page 22 © AllSportSystems, Inc. 2021 Step 1 - Attach Cable to Turnbuckle Follow the steps below to attach one end of the cable to eye of turnbuckle: (1) If the end is frayed or unraveled, tape cable (2) Cut the cable at the tape so that the cable as shown with electrical tape.
- Page 23 © AllSportSystems, Inc. 2021 Complete cable assembly by first determining the proper length of the cable, forming the eye and then trimming off extra cable. Follow the steps below … (1) Open Turnbuckle fully as shown below. This (2) For SideRite™ Cables, wrap cable around...
-
Page 24: Appendix B - Emt Pole Schematic
© AllSportSystems, Inc. 2021 APPENDIX B - EMT POLE SCHEMATIC Page 24 of 24 Table of Contents Last Revised 8/25/2021...
