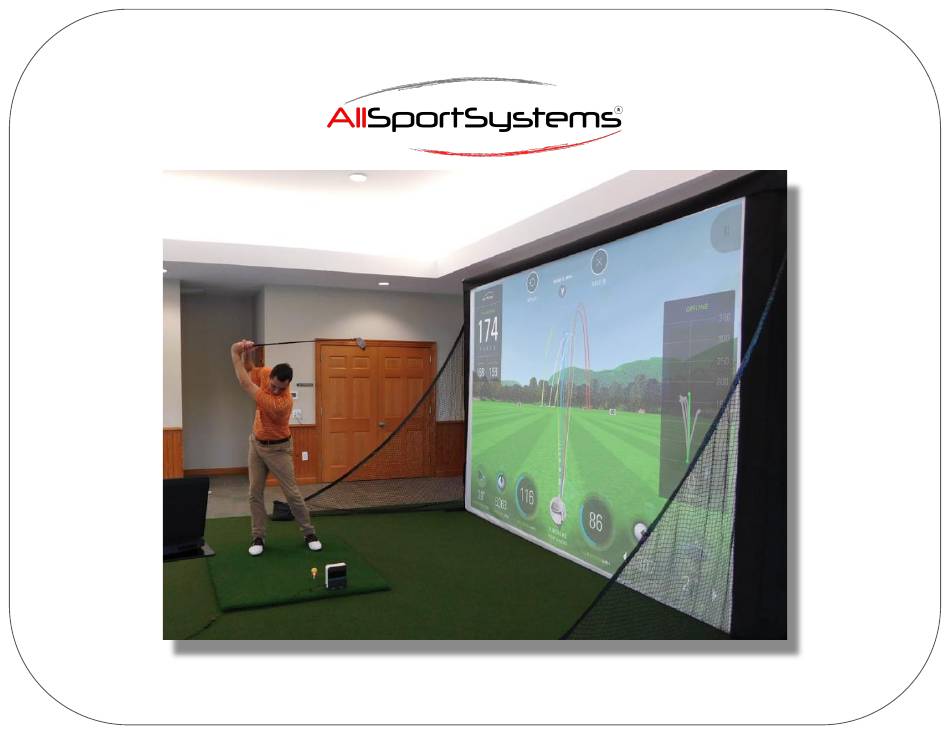

- Page 1 MicroBay™ Installation Guide 7/7/2023...
-
Page 2: Important Warning
IMPORTANT WARNING USE THIS PRODUCT AT YOUR OWN RISK. NO CLAIM IS MADE AS TO ITS SAFETY, FITNESS, OR RELIABILITY FOR ANY PURPOSE. HITTING GOLF BALLS IN AN INDOOR ENVIRONMENT IS EXTREMELY DANGEROUS! ALWAYS EXERCISE CAUTION WHEN USING YOUR SYSTEM. WE RECOMMEND HITTING 'ALMOST... - Page 3 MicroBay™ Parts List Fabric Parts: Connector Kit: 1 x Black Fabric Top Panel ● 4 x 3-Way Connectors 2 x Black Fabric Side Panels ● ● 2 x Black Fabric Pole Sleeves 2 x 90° Connectors. Not included if 1 x Impact Screen ●...
- Page 4 Couplers & Corner Connectors Insert poles ¼” from crimp couplers only, replace Replace eye-bolts with hex bolts ● eye-bolts with hex bolts on all couplers. Do not insert pole all the way into ● couplers. Pull pole about ¼” back from the crimp point.
- Page 5 MicroBay™ EMT Pole Cutting Chart SkyBridge setup guide for modified cage assembly if this upgrade is included. Actual dia 1-3/16” (30.16 mm) Note that pole count will be reduced by 1 width/extension pole for this upgrade. 1” Common EMT 10-ft conduit can be purchased from a local home improvement store. Use ●...
- Page 6 CAGE ASSEMBLY - EMT’s Purchased Locally SkyBridge setup guide for modified cage assembly if applicable and note that pole count will be reduced by 1 width/extension pole for this upgrade. For each coupler replace eye-bolts with hex bolts. ● Insert poles ¼” from the crimp in couplers. ●...
- Page 7 MicroBay™ EMT Pole Kit Chart SkyBridge setup guide for modified cage assembly if this upgrade is included. Note that your EMT pole count will be reduced by 1 width pole for this upgrade. USE THIS CHART TO VERIFY POLE LENGTHS PROVIDED IN EMT POLE KIT…...
- Page 8 CAGE ASSEMBLY for EMT Pole Kit Use this diagram to assemble your cage from Precut 1” EMT Pole Kit upgrade SkyBridge setup guide for modified cage assembly if applicable and note that pole count will be reduced by 1 width/extension pole for this upgrade. Insert poles 4 ½”...
- Page 9 ● Verify and adjust outer dimensions to match ordered enclosure size...
- Page 10 Install Back Panel This is an optional upgrade. Attach back panel to rear of enclosure using cable ties...
- Page 11 Add Velcro & Blackout sleeves NOTE: Adhesive SOFT LOOP Velcro strip is for use with side panels. Add 1x Adhesive STIFF HOOK Velcro strip to top of screen pole/strut. Trim excess with knife/scissors. Add 2x Blackout sleeves to bottom legs, close wrap using velcro edging...
-
Page 12: Install Cables
Install Cables Hardware: Loop 2 x SideRite cables around upper depth poles 2 x Nylon coated steel cable wire and lower legs 2 x Turnbuckles 8 x Wire nuts CABLE ASSEMBLY Loosen turnbuckles. Do not completely unscrew eyelets/hooks from turnbuckle. Thread cable through eyelet end of turnbuckle and secure cable back onto itself using... - Page 13 Cables. Do not tighten cable ties all the way. Progressively adjust cable ties to apply even side tensioning of screen. Tighten cable ties enough to flatten and smooth screen. Impact screen should NOT be overly tensioned. AllSportSystems logo is on bottom left corner of screen...
-
Page 14: Install Side Panels
Install Side Panels Side panels are interchangeable, and can be used on either side with or without SkyGuard Netting Attach side panels using cable ties, leading edge of Install panel with notch facing front of side panel will attach to enclosure with SkyGuard Netting velcro on face of screen. - Page 15 Install Top Panel First, center top panel and attach to the velcro strip on screen pole. Next, use cable ties to loosely secure top panel to rear, do not overly tighten. Attach left/right flaps to velcro strips on side panels. Check alignment, and tension cable ties once top panel is in place and centered.
- Page 16 Attach the front side of the valance to the top of the screen Note: If you ordered the FoamDefender separately from the MicroBay, you will need to install included stick-on velcro to the screen first then attach the valance as shown.
- Page 17 ● pointed end of the foam wedge pointing down Wrap the valance around the foam wedges and attach to velcro ● along the top of the MicroBay Tuck end flaps in on ● each side to cover the exposed ends 3”...

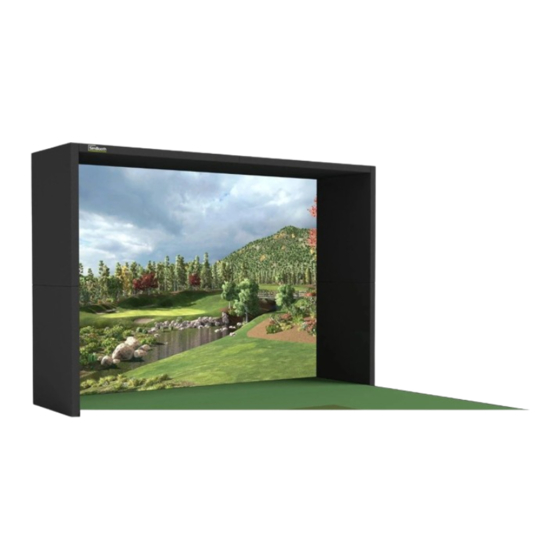

- Page 18 Your MicroBay is ready to go! setup guides if you purchased SkyGuard or Triangle netting upgrades. ●...
