Summary of Contents for VEVOR WX440-1

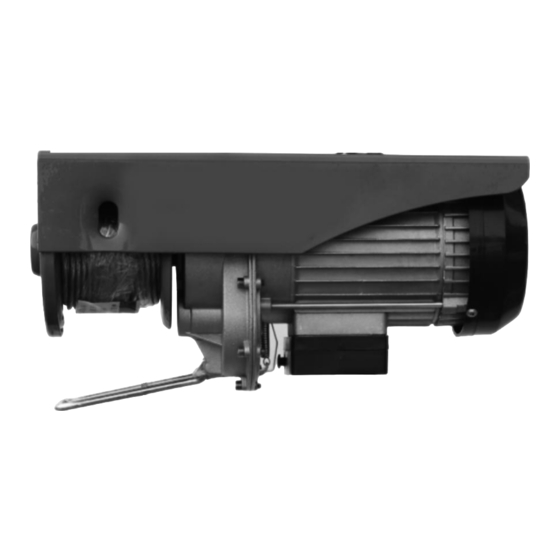

- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support ELECTRIC HOIST USER MANUAL...
- Page 2 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us.
- Page 4 CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 5: Important Safeguards
IMPORTANT SAFEGUARDS Warning-To reduce the risk of injury, user must read instructions manual carefully. This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendation shown below. - Page 6 7.During lifting, it is not allowed to pull or lift heavy objects at an angle to avoid danger. 8. Do not operate a damaged or malfunctioning hoist. Inspect hoist carefully and test operation before every use. 9. Do not lift people or lift loads over people. Falling loads can injure or kill people.
-
Page 7: Product Parameters
SAVE THESE INSTRUCTIONS PRODUCT PARAMETERS Model WX440-1 WX880-1 WX1320-1 WX2200-1 YX440-1 YX880-1 YX1320-1 YX1760-1 YX2200-1 Control Wireless Control Wire Control Mode Load Capacity / 220/440 440/880 660/1320 1100/2200 220/440 440/880 660/1320 880/1760 1100/2200 Weight / 9.25 15.9 25.9 14.5 15.3 16.5... -
Page 8: Product Components
PRODUCT COMPONENTS A. electric hoist（x1） C. screw/gasket/ B.fixing ring(X2) gasket ring（X4） F.hook（x1） E.sling 1 meter with D. sling 4 meter（x1） used in double line ring（x1） mode - 5 -... -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS 1.Install the electric hoist (A) on the beam with fixing rings (B) and screw/gasket/gasket ring (C), and pay attention to screw tightening. Note: The installation position must be strong enough to support the load of the electric hoist during operation. - 6 -... - Page 10 2.It can be installed into single line mode or double line mode as required. More load is available in double line mode, but will need to be replaced with a new hook in the accessory pack (F). single line mode double line mode 3.Be sure to tear off the tape wrapped around the rope drum before the machine can be tested.
-
Page 11: Troubleshooting
TROUBLE SHOOTING Electric hoist after long-term use or improper operation may occur a variety of failures;common failure causes and elimination methods see the following table. Common Failure Cause Analysis Handling Suggestion 1.The power supply is 1.Turn on the power. disconnected. 2.Check the cable 2.The cable connection connection and repair... - Page 12 1.The ground is faulty or 1.Check and repair the Electrification of ungrounded. ground cable. machine casing. 2.Ground the internal 2.Check and repair the conductor with the housing. internal cables. Press the lift switch to The limit make the hook drop to mechanism is Improper operation caused the bottom and the...
-
Page 13: Maintenance And Repair
MAINTENANCE AND REPAIR Maintenance 1. Check the screws fixing the electric hoist regularly. 2. Remove dust or corrosive liquid accumulated on the cable in time 3. The newly purchased electric hoist is filled with lubricating oil for lifetime maintenance. There may be a small amount of oozing when operating the miniature electric hoist, especially during the first operation. - Page 14 LEAST MONTHLY. Inspection is needed more often for heavily used hoists. 1. Check operating mechanisms for proper operation, proper adjustment, and unusual sounds such as, but not limited to, binding noise of the wire rope and bearing squeal. 2. Check hoist upper limit device without a load on the hook at the beginning of each shift.
- Page 15 1. First, follow all Frequent Inspection procedures. Additionally: 2. Check fasteners for evidence of loosening. 3. Check load blocks, suspension housings, clevises, yokes, suspension bolts, shafts, gears, bearings, pins, rollers, and locking and clamping devices for evidence of wear, corrosion, cracks, and distortion. 4.
- Page 16 Testing 1. Before use, test repaired hoists and hoists that have not been used for a year or more. 2. Check all functions of the hoist, including lifting and lowering, with the hoist unloaded first. 3. After testing in the unloaded state, attach a 200 Ib. load and retest to check proper load control and to check brake operation.
- Page 17 Technical Support and E-Warranty Certificate www.vevor.com/support...
