HYDRAULIC CRANE HOIST USER MANUAL
MODEL:GZB88057-CD1000LBS
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GZB88057-CD1000LBS and is the answer not in the manual?

Questions and answers

Related Manuals for VEVOR GZB88057-CD1000LBS

Summary of Contents for VEVOR GZB88057-CD1000LBS

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support HYDRAULIC CRANE HOIST USER MANUAL MODEL:GZB88057-CD1000LBS We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 4: General Safety Rules

    1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. 2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. GENERAL SAFETY RULES 1. Never overload. 2. The load is maximum when the arm of the product is adjusted to the shortest.The load of the product decreases as the arm increases.
  • Page 5 clear of the space between the Crane and the load. 12. Before each use, inspect the Crane, the Long Ram Jack and the Chain and Hook for damage, corrosion and any other condition that might affect the safe performance of this product. 13.

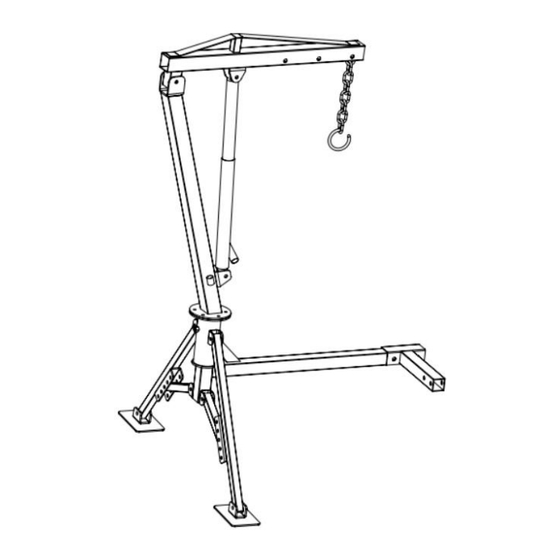

  • Page 6: Structure Diagram

    MODEL AND PARAMETERS GZB88057-CD1000LBS Model Bracket Capacity Max. 1000lbs Hoisting Height 63~198cm Hydraulic Jack Max. 3Ton Rotation Angle 360 degree Material Powder-coated Steel STRUCTURE DIAGRAM 1. Boom 2. Hook with Chain Hydraulic Jack 4. Trailer Bar 5. Bar Connection Rod 6.
  • Page 7 COMPONENTS Name and Name Picture Picture Q’ty and Q’ty Bolt Trailer Bar M12*80 (×1) (×2) Bolt Leg(×2) M8*30(×6) Spring Upright Rod washer (×1) Ф12(×12) Boom Flat washer (×1) Ф12(×12) Connection M12(×12) Rod(×1) Spring Hook with washer Chain(×1) Ф8(×6) Foot Flat washer (×2) Ф8(×6) Long Screw...
  • Page 8 Connecting Ф12*80 rod(×2) (×3) hydraulic jack Ф14*70 (×1) (×1) Rotating head Cotton pin (×1) (×4) User Jack handle manual (×1) (×1) Bolt M12*70(×10) - 6 -...
  • Page 9 ASSEMBLY Step 1: Assemble the two support leg, and lock them with bolts and nuts. Note:Leg(2) is designed with a porous position that allows easy adjustment of the height of the support leg. 13+16+17+18 - 7 -...
  • Page 10 Step 2: Insert the rotating head(11) slowly into the trailer bar(1); Locking the long screw(8) can make the rotating head(11 ) not rotate. Step 3: Install the upright rod(3), and lock it with bolts, washers and nuts. 15+19+20+21 - 8 -...
  • Page 11 Step 4: Install the boom(4).Connect 4 and 3 with a pin(22), and the pin end is stuck into the cotter pin(24). 22+24 Step 5: Install the hydraulic jack. Connect 4 and 3 with two pins(22), and the pin end is stuck into the cotter pin(24). 22+24 22+24 - 9 -...
  • Page 12 Step 6: Install the hook with chain(6). Connect 4 and 6 with a pin(23), and the pin end is stuck into the cotter pin(24). Note:It is portable and easy to adjust to different boom positions for 500, 750 and 1,000 lbs. 23+24 Step 7: Connect the product to the vehicle and you can use it.
  • Page 13 Operation: 1) Make sure the installation is correct and all parts are locked. 2) The boom can be rotated and must be locked before lifting. Know the weight of the cargo to be lifted. The cargo must be properly strapped and have attachment couplings that will attach to the hook. Attach the cargo to the hook.

  • Page 14: Maintenance

    MAINTENANCE 1.Frequently check the condition of the hydraulic crane hoist. 2.Do not the use damaged crane. 3.Make sure all components are in good condition. If the crane or receiver hitch becomes damaged by an accident or any other type of damage is noted, it should be replaced.
  • Page 16 TechnicalSupport and E-Warranty Certificate www.vevor.com/support...
