Summary of Contents for minkaAire CONTRACTOR II UNI-PACK

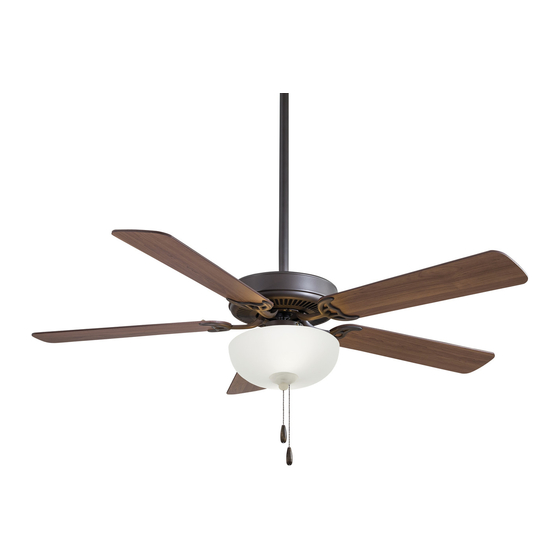

- Page 1 CONTRACTOR II UNI-PACK INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 ©2019 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 Warranty Service Information To obtain warranty service during the warranty period, the purchaser should return the fan with the sales receipt to the original place of purchase. The authorized Minka-Aire® dealer, at its sole discretion, will either repair or replace the fan after verifying the legitimacy of the warranty claim.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................ATTACHING THE FAN BLADES............PACKAGE CONTENTS..............LIGHT KIT INSTALLATION ..............INSTALLING THE FAN..............INSTALLING THE LIGHT BULBS & GLASS SHADE ....HANGING THE FAN................. OPERATING YOUR FAN..............ELECTRICAL CONNECTIONS............CARE OF YOUR FAN................FINISHING THE INSTALLATION..........TROUBLESHOOTING................SPECIFICATIONS.................. -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinances, or National Electrical Codes. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. It must be understood that common sense, caution and care are factors which can not be built into this product. These factors must be supplied by the person (s) installing, caring for and operating the unit.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 1. Fan blades (5) A. Mounting hardware: #10 x 1.5" Wood screws (2 PCs.) 2. Hanger bracket #8 x 3/4" Machine screws (2 PCs.) 3. Canopy Lock washers (2 PCs.) 4. -
Page 9: Installing The Fan
INSTALLING THE FAN Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. PARALLEL WOOD BRACE CEILING (MIN. 2" THICK) MOUNTING OPTIONS JOIST OUTLET CROSS BRACE If there isn't an existing mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 3. Remove the Hanger Ball from the Downrod Assembly by loosening hanger bracket and hanger ball have been provided for your safety and the Set Screw and removing the Cross Pin. (Fig. 7) the proper installation of your new ceiling fan. - Page 11 DOWNROD OUTLET BOX DOWNROD CROSS PIN CANOPY SET SCREWS HITCH LOCK HANGER SUPPLY REGISTRATION BALL SET SCREW WIRES SLOT SET SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig. 6 Fig. 7 Fig. 8 HITCH PIN LOCK PIN Fig. 9...
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY PULL CHAIN. REMEMBER to shut the power off at the circuit breaker or fuse box. HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) Follow the steps below to connect the fan to your house supply wires. Use CEILING the wire nuts supplied with your fan. - Page 13 FAN CONTROLLED BY PULL CHAIN, LIGHT KIT CONTROLLED BY WALL SWITCH. FAN CONTROLLED BY WALL CONTROL, LIGHT KIT CONTROLLED BY LIGHT SWITCH. HOUSE WIRE SUPPLY HOUSE WIRE SUPPLY WHITE (NEUTRAL) GREEN (GROUND) WHITE (NEUTRAL) GREEN (GROUND) BLACK (HOT) BLACK (HOT) CEILING CEILING LIGHT SWITCH...
-
Page 14: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other one OUTLET BOX half a turn from the screw head. HANGER BRACKET Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes. -
Page 15: Attaching The Fan Blades
ATTACHING THE FAN BLADES Step 1. Attach the fan blades to the blade holders using the screws and fiber washers provided, tighten screws securely. (Fig. 15) SCREWS FAN BLADE Step 2. Remove rubber stops from motor. Align FIBER motor holes to blade holders and secure with WASHERS screws provided, tighten screws securely. -
Page 16: Light Kit Installation
LIGHT KIT INSTALLATION REMEMBER: To disconnect the power. The fan blades must be already attached to the fan. Step 1. Remove and discard the center plug from the switch cup. (Fig. 17) Step 2. Feed the BLACK and WHITE wires from the light kit through the center hole of the switch cup. Thread the switch cup to the nipple on the light kit. - Page 17 WIRE NUTS LOCK WASHER SWITCH CUP SWITCH CUP PLATE SCREWS CONECTOR PLUG SWITCH CUP LIGHT KIT LIGHT KIT Fig 17 Fig 18...
-
Page 18: Installing The Light Bulbs & Glass Shade
INSTALLING THE LIGHT BULBS & GLASS SHADE Step 1. Install 2 x 10W LED bulbs (included). Step 2. Remove the rubber washer, washer, nut, decorative cover and finial from the light kit. Raise the glass shade up against the light kit, Place the rubber washer, washer and nut on the top over the stem and turn it clockwise until it locks up against the glass shade. - Page 19 Fan without Light Kit (Optional) REMEMBER: To disconnect the power. The fan blades must be already attached to the fan. Step 1. Disassemble the switch cup from the light kit, you can keep the light kit for future use. Step 2. Attach the plastic plug to the switch cup. (Fig. 20) Step 3.
-
Page 20: Operating Your Fan
OPERATING YOUR FAN Restore power to ceiling fan and test for proper operation. Speed settings for warm or cool weather depend on factors such as the room size. Ceiling height, number of fans, etc. The Reverse switch is located on the switch cup. Slide down the switch for warm weather operation. Slide up the switch for cool weather operation. NOTE: Wait for fan to stop before changing the setting of the slide switch. - Page 21 SUMMER OPERATION WINTER OPERATION COUNTERCLOCKWISE DIRECTION CLOCKWISE DIRECTIO FIG. 21 FIG. 22...
-
Page 22: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check fuses or circuit breakers. Allow a 24-hour "break-in" period. Most noises as sociated with a new fan go away during this time. Check line wire connections to fan and switch wire connections in switch housing. - Page 24 SYMPTOM Fan Wobble SOLUTION Check that all blade and blade holder screws are secured. If a Balancing kit is provided follow the instructions included with the balancing kit to help correct any excessive wobble. NOTE: All Blade sets are grouped by weight. Because blades vary in density, the fan may wobble even though blades are weight matched.
-
Page 25: Specifications
SPECIFICATIONS Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the 0.21 9.41 1569 52" 8.40 1.862' 7.47 light(s). 0.52 61.46 4276 High... - Page 26 PERFORMANCE AND ENERGY INFORMATION FAN SPEED AIRFLOW POWER USE AIRFLOW EFFICIENCY (CFM)* (Watts) (CFM/Watt) 1569 9.41 166.74 High 4276 61.46 69.57 Ceiling fan airflow is measured in cubic feet per minute (CFM). Estimated Airflow Power use is measured in watts. To maximize energy savings: Yearly Energy Cost 3,007 Measure according...
