Summary of Contents for minkaAire CONTRACTOR Series

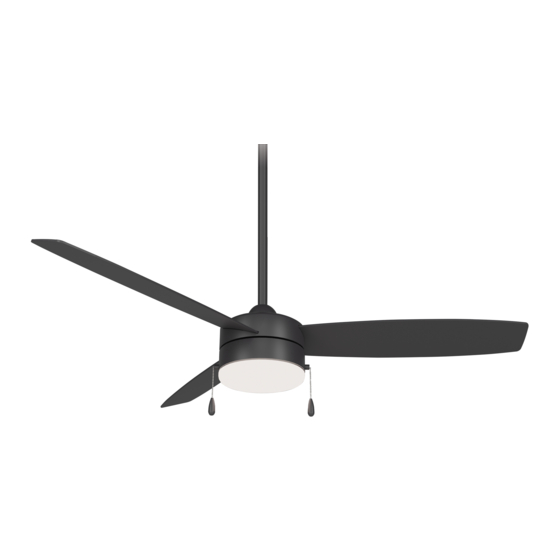

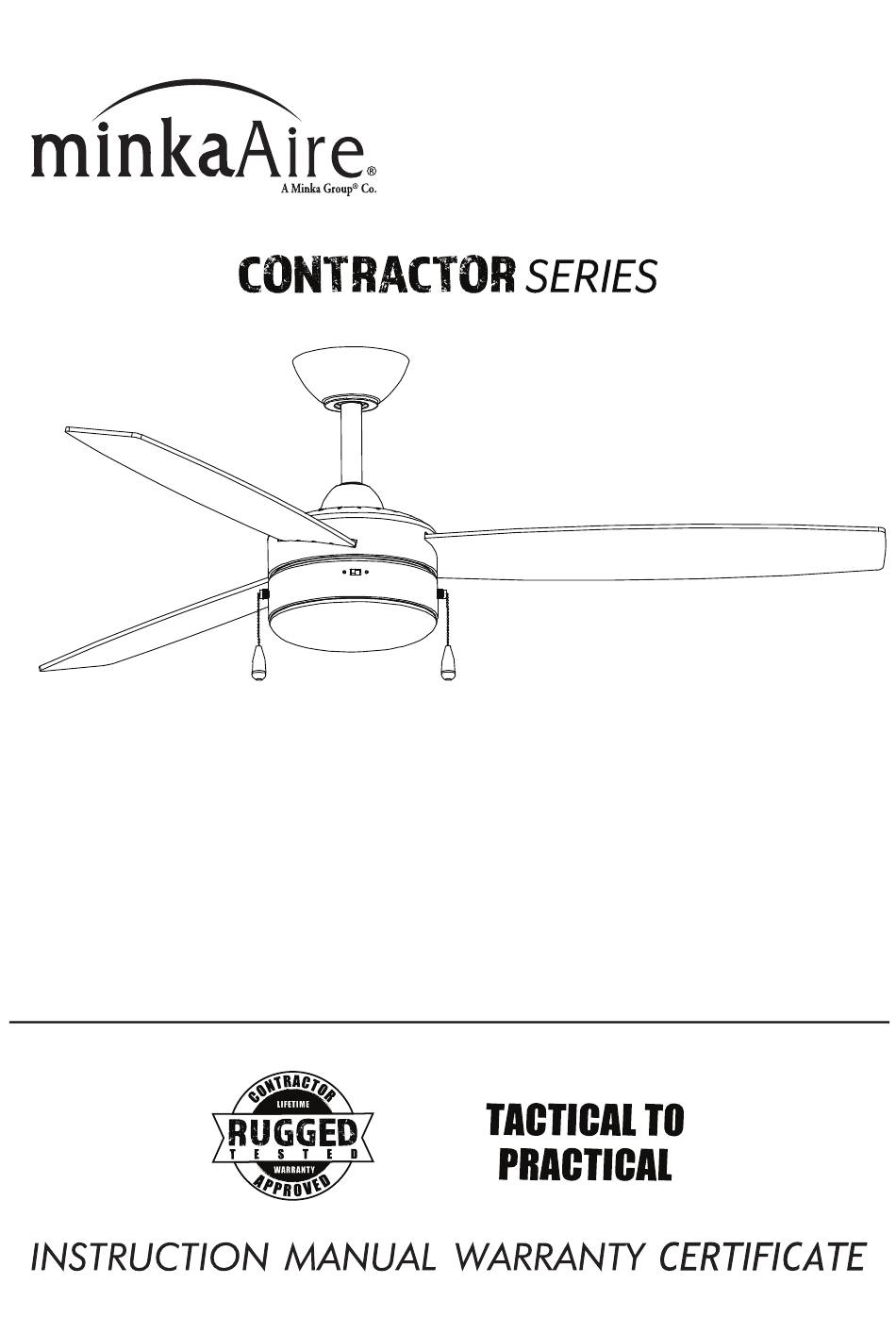

- Page 1 Model NO. F670L AIRETOR III...
- Page 2 ©2021 Minka Lighting Inc. Manual design and all elements of manual design are protected by United States Federal and/or State Law including Patents, Trademark, and/or Copyright Laws.
- Page 3 The Minka-Aire® warranty is for one (1) year from the date of purchase from an authorized Minka-Aire® dealer. This warranty is only valid to the original purchaser or user against all defects in material and workmanship (light bulbs excluded) for one (1) full year. Additionally, Minka-Aire® warrants the motor only for the lifetime of the Minka Aire ceiling fan (excluding wall controls and electrical components), to the original purchaser or user.
- Page 4 INSTALLING THE LIGHT KIT PLATE INSTALLING THE 16W LED ASSEMBLY INSTALLING THE GLASS SHADE...
- Page 5 READ AND SAVE THESE INSTRUCTIONS. 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70- 1999”...
- Page 6 8. Light kit plate 3/16”x12.7 mm blade screws 9. 16W LED assembly (9+1 spare) 10. Glass shade Fiber washer (9+1 spare)
- Page 7 Tools Required: Phillips screw driver; slotted screw driver; step-ladder; wire cutters; electrical tape. CEILING CROSS JOIST BRACE MOUNTING OPTIONS If there isn't an existing mounting box, then read OUTLET BOX the following instructions. Disconnect the power CEILING by removing fuses or turning off circuit breakers. JOIST Fig.
- Page 8 WARNING: All of the parts, hardware and components such as the hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. The use of other parts, hardware or components not supplied ®...
- Page 9 Slip coupling cover, canopy cover Step 5. and canopy onto downrod. (Fig. 9) Carefully reinstall hanger ball DOWNROD onto rod being sure that cross CANOPY pin is in the correct position, set screws are tighten and wires are CANOPY COVER COUPLING COVER not twisted.
- Page 10 Step 2. Connect the ground wire (Green or Bare Copper) to the ground wire from hanger ball and the ground wire from hanger bracket. (Fig.11) Fig. 11...
- Page 11 OUTLET BOX HANGER BRACKET HANGER BALL CANOPY CANOPY COVER Fig. 12 Step 1. Insert the blade through the slot on the fan motor assembly. (Fig.13) Step 2. Attach the fan blade to the fan motor assembly using the three blade screws and three fiber washers securely.
-
Page 12: Installing The Light Kit Plate
INSTALLING THE LIGHT KIT PLATE CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical Supply Circuit To The Fan Before Installing Light Kit. Step 2. While holding the light kit plate under your fan, firmly snap the wire connection plugs together. -
Page 13: Led Assembly
INSTALLING THE 16W LED ASSEMBLY CAUTION: To Reduce The Risk Of Electric Shock, Disconnect The Electrical Supply Circuit To The Fan Before Installing Light Kit. Step 1. Remove 1 of 3 screw from the pillar of light kit plate and loosen the other 2 screws. -
Page 14: Installing The Glass Shade
INSTALLING THE GLASS SHADE Attach the glass shade to the light kit plate by twisting tightly. (Fig.16) (Fig.17) LIGHT KIT PLATE GLASS SHADE PULL CHAIN FOB... - Page 15 The Reverse switch is located on light kit assembly (Fig.18). Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. LIGHT...
- Page 16 WARNING! MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION, “ELECTRICAL CONNECTIONS”.
- Page 18 0.26 14.36 6.68 9.28 1.939' 0.53 63.67 3,320 1,988 14.36 4,495 63.67...
