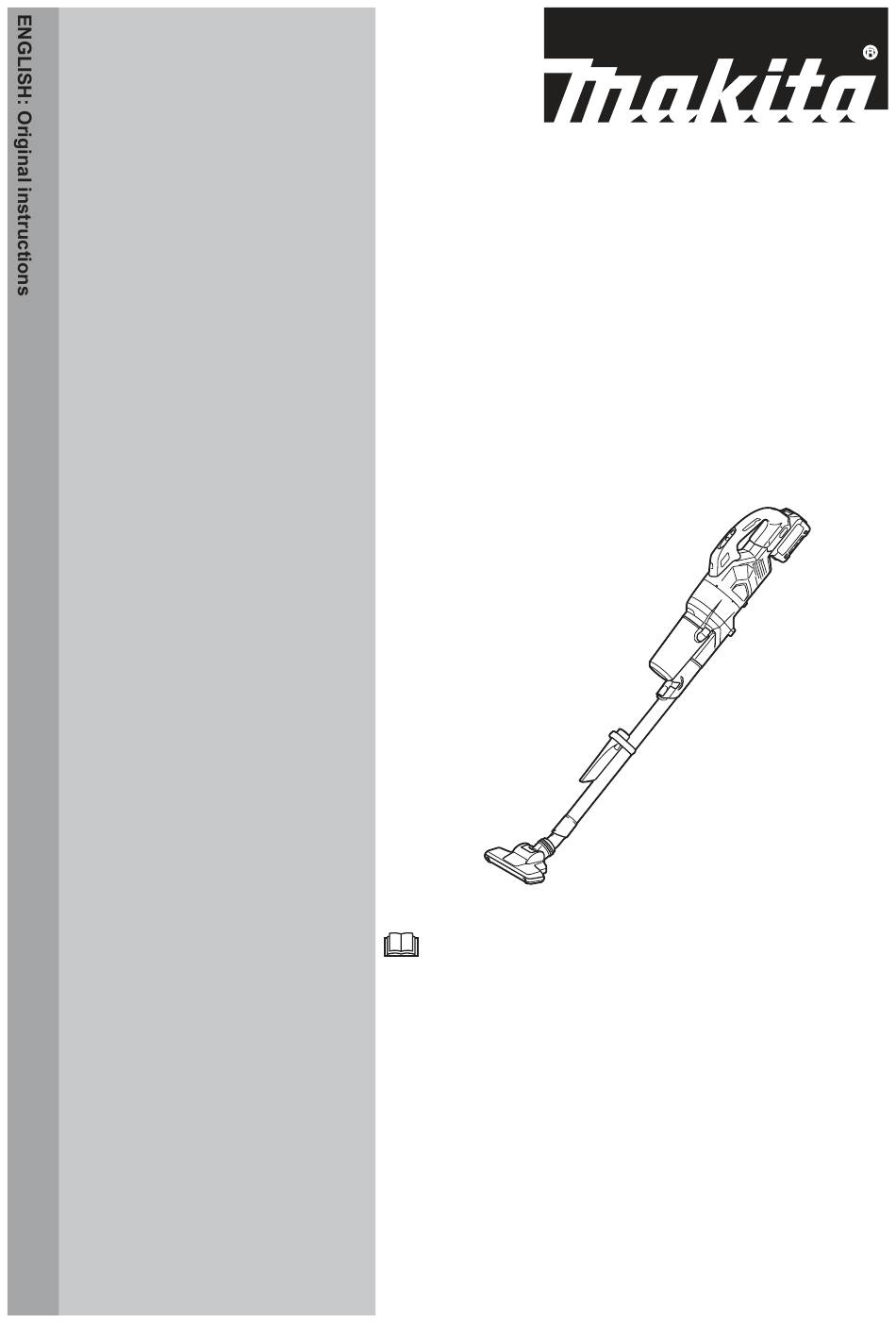

- Page 1 INSTRUCTION MANUAL Cordless Cleaner CL003G Read before use.
-
Page 2: Specifications
WARNING • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards involved. •... -
Page 3: Safety Warnings
20. Do not expose a battery pack or appliance Intended use to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause The tool is intended for collecting dry dust. explosion. 21. Follow all charging instructions and do not charge the battery pack or appliance outside the temperature range specified in the instruc- SAFETY WARNINGS... -
Page 4: Functional Description
Avoid storing battery cartridge in a con- causing fires, personal injury and damage. It will tainer with other metal objects such as also void the Makita warranty for the Makita tool and nails, coins, etc. charger. Do not expose battery cartridge to water or rain. -
Page 5: Installing Or Removing Battery Cartridge
Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Indicating the remaining battery capacity Press the check button on the battery cartridge to indi- cate the remaining battery capacity. -
Page 6: Parts Description
Switch action NOTE: You can change the suction power before turning on the cleaner. NOTE: The cleaner starts the operation with the same suction power as the last operation. Lighting up the lamp CAUTION: Do not look in the light or see the source of light directly. -
Page 7: Operation
When using attachment without lock ASSEMBLY function NOTICE: To install attachment without lock func- CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed tion, insert it into the suction inlet of the cleaner by twisting it as shown in the figure. - Page 8 You can store the corner nozzle in the nozzle holder. Cleaning (Suction) Nozzle With 250 mL dust case only Attach the nozzle to clean off tables, desks, furniture, etc. The nozzle slips on easily. Fig.13 ► 1. Nozzle holder 2. Corner nozzle Be careful not to trap finger(s) CAUTION: between the corner nozzle and the nozzle holder.
-
Page 9: Maintenance
Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. 9 ENGLISH... - Page 10 Cyclone unit and filters After use Dust off and clean out inside the NOTICE: cyclone unit and filters, when suction perfor- CAUTION: Putting the cleaner against the mance becomes less effective regardless of the wall without any other support may cause the cleaner to fall down, resulting in personal injury amount of dust collected in the dust case.
- Page 11 High performance filter NOTE: Dust may fly out when the cyclone unit is disassembled. It is recommended to place a garbage Optional accessory bag underneath the cyclone unit. Disassemble the cyclone unit from the cleaner body. Dust off inside the cyclone unit and filter. Hold the mounting end of high performance filter and pull it apart from the cleaner body.
-
Page 12: Hepa Filter
Hold the mounting end of high performance filter Wipe and shake dust off the high performance prefilter and HEPA filter by hand. and squeeze it back into the cleaner body. Fig.29 Fig.32 ► 1. High performance filter 2. Cleaner body Wash the high performance prefilter and HEPA filter in soapy water. - Page 13 Hold the mounting end of HEPA filter (covered with Wipe and shake dust off the sponge sheet by high performance prefilter) and squeeze it back into the hand. cleaner body. Fig.38 Fig.35 Wash the sponge sheet in soapy water when it is ►...
- Page 14 Place the sponge sheet back in the original Condition-based maintenance position. Make sure that the left and right edges of the sponge sheet are secured with stoppers and no gap Clean the mesh filter in the cyclone NOTICE: between the sponge sheet and suction opening. unit when they become clogged.
- Page 15 Disassemble the mesh filter into three compo- Wash the filters and mesh pipe in soapy water nents: prefilter, tubular sponge filter and mesh pipe. when they are clogged with dust and dirt. Dry them out thoroughly in the shade before use. Squeeze the guide stoppers on top of the mesh pipe together.
- Page 16 Attach the mesh filter back into the cyclone body Press and hold the guide stopper on the inlet pipe aligning the hooks on the mesh filter with the ports on down through the locking hole on the cyclone body the suction outlet of the cyclone body. Turn the mesh using the hand tool with a point.
-
Page 17: Troubleshooting
OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 20 Jan-Baptist Vinkstraat 2, Makita Europe N.V. 3070 Kortenberg, Belgium 3-11-8, Sumiyoshi-cho, Makita Corporation Anjo, Aichi 446-8502 Japan 885966-229 www.makita.com 20211221...
