Waterpik Slide - Cordless Water Flosser Manual

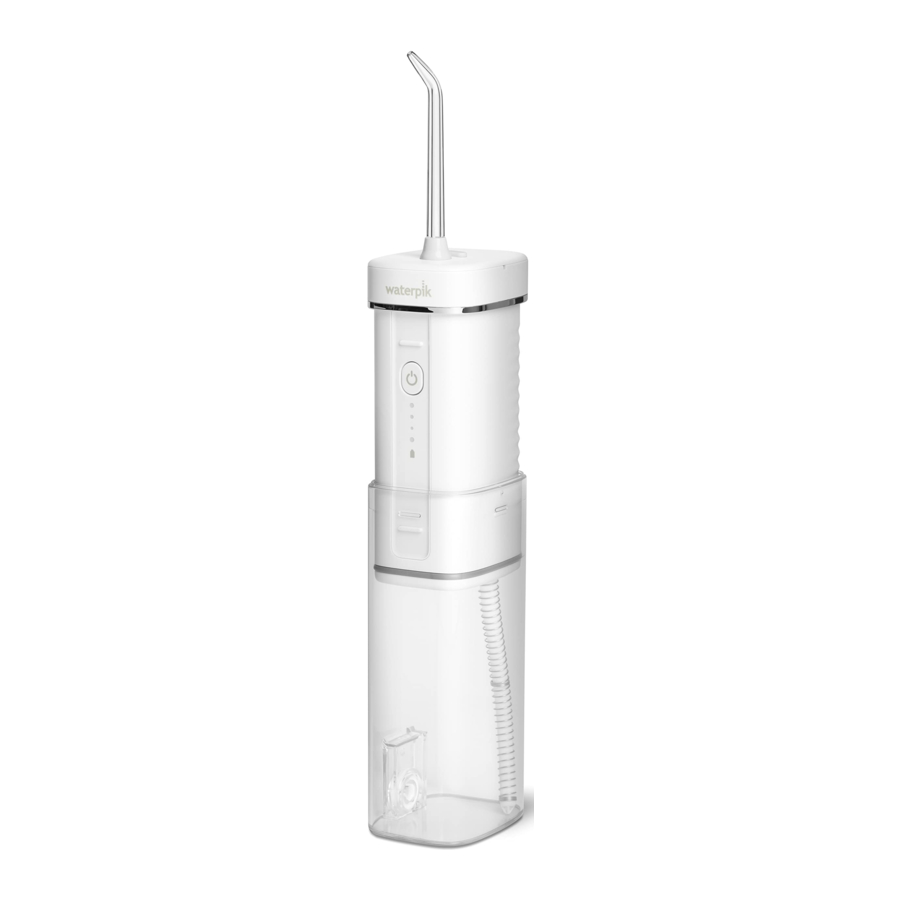

PRODUCT DESCRIPTION

1. Power/Mode button
2. LED mode indicators
3. Battery charge indicator
4. Tip
5. Tip eject button
6. Reservoir
7. Reservoir fill door
8. Charging Port Cover

USB Charging Cable
20030405-2 White

TIPS

1. Orthodontic Tip*

   • Braces/General use
2. Pik Pocket Tip*

   • Periodontal Pockets/Furcations
3. Plaque Seeker Tip*

   • Implants/Crowns/Bridges/Retainers/General use
4. Classic Jet Tip**

   • General use
5. Tongue Cleaner**

   • Fresher breath
6. Travel Plug

   • Keeps excess water from draining out while traveling

NOT ALL TIPS INCLUDED IN ALL MODELS
*Replace Every 3 months
**Replace Every 6 months
Replacement tips/attachments may be purchased online at www.waterpik.com (US) www.waterpik.ca (Canada), or by phone from Water Pik, Inc. at 1-800-525-2774 (US) or 1-888-226-3042 (Canada).

GETTING STARTED

Charging Unit Prior to First Use

Charge unit for approximately 4 hours prior to first use. Plug the user supplied USB wall charger into a wall outlet and connect the USB charging cable to the unit (see images). Refer to the IMPORTANT SAFEGUARDS section for required USB wall charger specifications. Ensure contacts on BOTH the cord and the unit are clean and dry, and the reservoir is empty and collapsed. The LED light will emit a slow glow on/off when unit is charging. Once the unit is fully charged and the charger is connected the LED will remain on until the charger is disconnected. A full charge will last up to 4 weeks of typical use. When the batteries are in need of charging (approximately 30% charge left) the charge indicator light emit a rapid triple blink during and after use to indicate that you should recharge the unit.


USB wall charger is not standard accessory with this appliance.

A complete recharge will take 3-4 hours. If you use your Water Flosser once a day or less, it is recommended you charge every 3-4 weeks. If you use it twice a day or more, charge more frequently.

Put the protective charging port cover back into place before use. The charging port cover should only be removed for charging.

Filling the Reservoir

Remove the charging cable from the unit and replace charging port cover prior to filling reservoir and product use. Pull down on reservoir to open. Unit will "click" into place when fully extended. Lift flip top on reservoir and fill the reservoir with lukewarm water.
Collapse by pushing reservoir up. Reservoir will "click" into place when fully closed.

Inserting and Removing Tips

Insert tip at the top of the unit. Press firmly until the tip clicks into place. To remove the tip from the unit, press the tip eject button and pull tip from the unit.

Do not press tip eject button while unit is running.

Adjusting the Pressure Setting

1. 3 modes – low, med, high pressure settings.
2. Unit will remember last setting when turned off (press and hold if within 5s of turn on, short press after running for more than 5s).

3. Unit will cycle through the modes when the button is repeatedly pressed within 5s of turn on.

Recommended Technique

Lean low over sink and place tip in mouth. Aim the tip toward gumline, and turn the unit ON.

For best results, start with the back teeth and work toward the front teeth. Glide tip along gumline and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.

Direct the jet stream at a 90-degree angle to your gumline. Slightly close lips to avoid splashing but allow water to flow freely from mouth into the sink. Keep unit upright during use for best results.

When Finished

Turn the unit OFF. Empty any liquid left in the reservoir. If desired, the reservoir may be removed from the power handle by simply pulling down on the reservoir to remove.

Drain unit after use to prevent residual water from leaking out. Tilt unit on it's side and allow water to drain from the drain holes at the top.

TIP USAGE

NOTE: NOT ALL TIPS INCLUDED WITH ALL MODELS.

Pik Pocket Tip

The Pik Pocket tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets.
To use the Pik Pocket tip, set the unit to the lowest pressure setting. Place the soft tip against a tooth at a 45-degree angle and gently place the tip under the gumline, into the pocket.

Tongue Cleaner Tip

Set to lowest pressure setting, place tip in the center/middle of your tongue about half way back. Pull forward with light pressure. Increase pressure as you prefer.

Orthodontic Tip

To use the orthodontic tip, gently glide tip along gumline, pausing briefly to lightly brush area between teeth and all around orthodontic bracket, before proceeding to the next tooth.

Toothbrush Tip

Place the toothbrush tip in mouth with the brush head on the tooth at the gumline. The toothbrush tip can be used with or without toothpaste. Using a light pressure (bristles should not bend) massage the brush back and forth with very short strokes – much like you would with a manual toothbrush.

Plaque Seeker Tip

To use the Plaque Seeker tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip along gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.

Travel Plug

When travelling, place travel plug in unit to keep excess water from draining out.
NOTE: Do NOT run unit while travel plug is in unit.

CLEANING AND TROUBLESHOOTING YOUR DEVICE

Using Mouthwash and Other Solutions

Your Waterpik Water Flosser can be used to deliver mouthwash and antibacterial solutions. For ease of adding other solutions remove the reservoir (see "When Finished" section) and add from opening on reservoir. If you are adding additional water you may replace the reservoir and fill reservoir fully with the fill door. After using any special solution, rinse unit to prevent clogging by partially filling reservoir with warm water and running unit with tip pointed into sink until unit is empty.

Cleaning

Never immerse unit in water. Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a soft cloth and mild nonabrasive cleanser to wipe exterior. The water reservoir is removable for easy cleaning. It is recommended that the reservoir is removed and cleaned weekly.

Removing Hard Water Deposits / General Cleaning

Hard water deposits may build up in your unit, depending on the mineral content of your water. If left unattended, it can hinder performance. Cleaning internal parts: add 1 tablespoon of white vinegar to a full reservoir of warm water. Point the handle and tip into sink. Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water. This process should be done every 1 to 3 months to ensure optimal performance.

BATTERY CARE AND REMOVAL

Battery Care

If the Water Flosser is to be stored for an extended period of time (six months or more), be sure to fully charge it prior to storage. Do not expose the battery or appliance to excessive temperatures.

Battery Removal

To remove the rechargeable battery for recycling, please discharge the battery fully before removing.
Observe basic safety precautions when you follow the procedure below. Be sure to protect your eyes, hands, fingers and surface on which you work.

1. The power should be off and the battery fully discharged before removal. It may take several power cycles before the battery is fully discharged.
2. Cut off top of unit.

3. Slide battery out of chassis. Cut wires individually (avoid cutting positive and negative at the same time to prevent shorting).


Service Maintenance

Waterpik Water Flossers have no consumer serviceable electrical items and do not require routine service maintenance. For all parts and accessories go to www.waterpik.com (US) or www.waterpik.ca (Canada). You may also call our toll-free customer service number at 1-800-525-2774 (US) or 1-888-226-3042 (Canada).
Refer to the serial and model numbers in all correspondence. These numbers are located on the bottom of your unit.
Still have questions? Go to www.waterpik.com (US) or www.waterpik.ca (Canada).

IMPORTANT SAFEGUARDS

SAFEGUARD STATEMENTS
READ ALL INSTRUCTIONS BEFORE USING.

• This product is for household use.

When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:

To reduce the risk of electrocution:

• Do not place or store product where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• Do not handle the user supplied USB wall charger with wet hands.
• Do not place or drop the user supplied USB wall charger into water or other liquid.
• Check the charging cord and user supplied USB wall charger for damage before the first use and during the life of the product.

To reduce the risk of burns, electrocution, fire, or injury to persons:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use this product only as indicated in these instructions or as recommended by your dental professional.
• Only use tips and accessories recommended by Water Pik, Inc.
• Do not use this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into any liquid. Contact Water Pik, Inc. at 1-800-525-2774 (US) 1-888-226-3042 (Canada) or visit www.waterpik.com (US) www.waterpik.ca (Canada).
• Keep the charging cord and user supplied USB wall charger away from heated surfaces.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not expose the battery or appliance to excessive temperatures.
• A user supplied USB-A wall charger (power adapter) with the following specifications is required to charge this device. Rated Output: 5.0 VDC, 1.0 A.
• Do not plug this device into a voltage system that is different from the voltage system specified on the device or charger.
• Unplug USB wall charger when not in use.
• Do not use the Water Flosser for more than five minutes in each two hour period.
• Do not direct water from the Water Flosser under the tongue, into the ear, nose or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
• Do not direct water into the nose or ear. The potentially deadly amoeba,Naegleria fowleri, may be present in some tap water or unchlorinated well water and may be fatal if directed into these areas.
• If your physician advised you to receive antibiotic premedication before dental procedures, you should consult your dental professional before using this product or any other oral hygiene aid.
• Fill reservoir with warm water or other dental professional recommended solutions only.
• Do not use iodine, saline (salt solution), or water insoluble concentrated essential oils in this product. Use of these can reduce performance and will shorten the life of the product.
• If the Pik Pocket tip (not included in all models) separates from the shaft for any reason, discard tip and shaft and replace with a new Pik Pocket tip.
• Remove any oral jewelry prior to use of this product.
• Do not use if you have an open wound on your tongue or in your mouth.
• There are no consumer serviceable electrical parts in this product and it does not require maintenance.
• Remove charging cord from the unit and replace charging port cover prior to filling the reservoir.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

SAVE THESE INSTRUCTIONS

SYMBOLS
The following symbols may appear on your product and/or packaging. Some of these symbols may not be relevant in your region and are listed for information purposes only.
Symbol	Definition	Symbol	Definition
	Do not use this device in a shower, bathtub and do not immerse in any liquid.		Detachable Power Supply
IPX7 or IPX4	Ingress Protection Code		Direct Current (DC) Voltage
	IEC Class II Equipment		Alternating Current (AC) Voltage
	Do not immerse this device in any liquid.
