Waterpik Evolution WF-07 - Water Flosser Manual

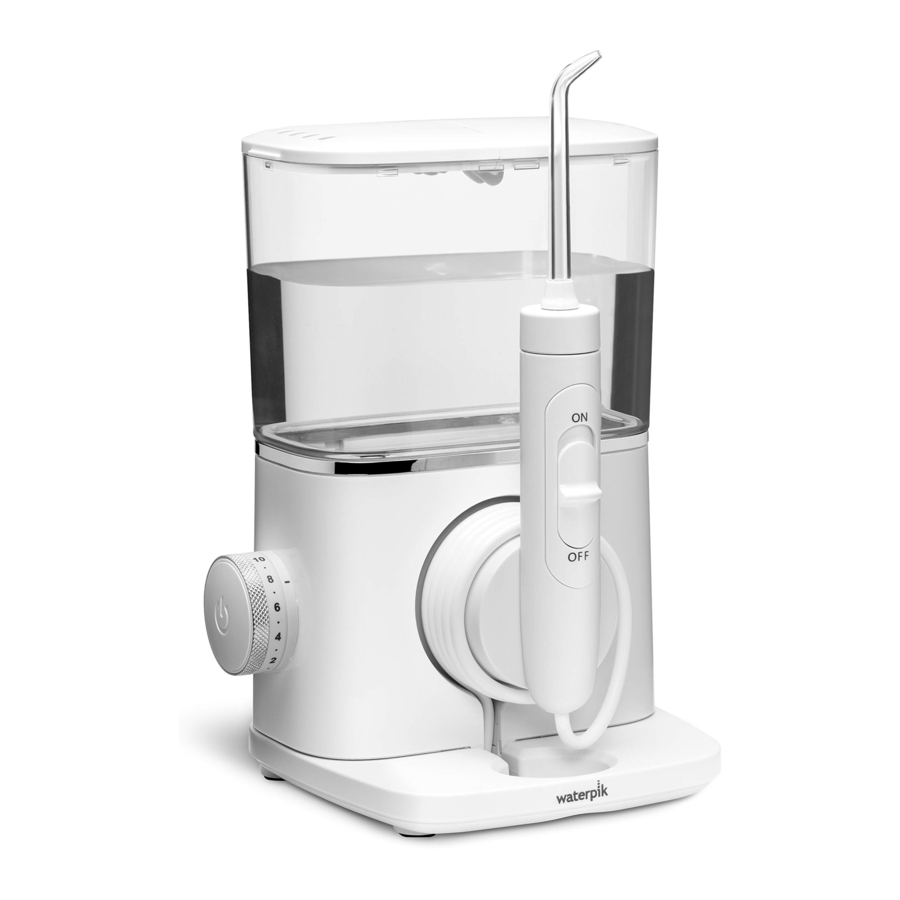

PRODUCT DESCRIPTION

Hinged reservoir lid
Reservoir
Hose
Water Flosser pressure control dial
Power button (push to turn unit ON/OFF)
Power cord
Magnetic handle cradle
Tip
Tip eject switch
Water ON/OFF switch
Base

TIPS

Orthodontic Tip*
- Braces
- General use
Pik Pocket Tip*
- Periodontal pockets
- Furcations
Plaque Seeker Tip*
- Implants
- Crowns
- Bridges
- Retainers
- General use
Classic Jet Tip**
- General use
Tongue Cleaner**
- Fresher breath

*Replace Every 3 months ** Replace Every 6 months

Replacement tips/attachments may be purchased online at www.waterpik.com or by phone from Water Pik, Inc. at 1-800-525-2774. To find detailed information about tips, other accessories, and product usage please visit our website at www.waterpik.com.

GETTING STARTED WITH YOUR DEVICE

Powering the Unit

Plug the cord into an electrical outlet. If the outlet is controlled by a wall switch, be sure it is turned on.

Preparing the Reservoir

Lift the reservoir lid, remove the reservoir, and fill with lukewarm water. Replace the reservoir over the base and press down firmly and close the lid.

Inserting and Removing Tips

Insert tip into the center of the Water Flosser handle, pressing down firmly until tip clicks into place. The colored ring will be flush with the top of the handle if the tip is correctly locked into place.

To remove tip from the handle, slide the tip eject button on the handle.

Do not use tip eject slide while unit is running.

Prime Unit

First Time Use Only

Set pressure control dial on base to high (pressure setting No. 10), point the handle and tip into sink. PUSH power button ON. Switch water switch to ON until water flows from the tip. Switch water to OFF and PUSH power OFF.

Adjusting the Pressure Setting

Turn the pressure control dial on the base of the unit to the lowest setting (pressure setting No. 1) for first-time use. Gradually increase pressure over time to the setting you prefer – or as instructed by your dental professional.

Using the Device

Always place the tip in your mouth before turning the water ON. With water switch in OFF position, PUSH power on. Lean over sink and slightly close lips enough to prevent splashing while still allowing water to flow from mouth into the sink. Turn water switch ON. When finished, turn water switch and power OFF. During use you can stop the flow of water by sliding the water switch on handle to the OFF position.

NOTE: Motor will continue to run.

Recommended Technique

For best results, start with the back teeth and work toward the front teeth. Glide tip along gumline and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.

When Finished

Push the unit OFF button. Empty any liquid left in the reservoir. Unplug the unit.

NOTE: If you used mouthwash or other solution besides water, see "Using Mouthwash and Other Solutions" section.

NOTE: NOT ALL TIPS INCLUDED WITH ALL MODELS.

TIP USAGE

Plaque Seeker Tip

To use the Plaque Seeker tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip along gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.

Orthodontic Tip

To use the orthodontic tip, gently glide tip along gumline, pausing briefly to lightly brush area between teeth and all around orthodontic bracket, before proceeding to the next tooth.

Pik Pocket Tip

The Pik Pocket tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets.

To use the Pik Pocket tip, set the unit to the lowest pressure setting. Place the soft tip against a tooth at a 45-degree angle and gently place the tip under the gumline, into the pocket.

Tongue Cleaner Tip

Set to lowest pressure setting, place tip in the center/middle of your tongue about half way back. Pull forward with light pressure. Increase pressure as you prefer.

Using Mouthwash and Other Solutions

Your Waterpik Water Flosser can be used to deliver mouthwash and antibacterial solutions. After using any special solution, rinse unit to prevent clogging by partially filling reservoir with warm water and running unit with tip pointed into sink until unit is empty.

CLEANING AND TROUBLESHOOTING YOUR DEVICE

Cleaning

Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a soft cloth and mild non-abrasive cleanser. The water reservoir is removable for easy cleaning and is top rack dishwasher safe.

Removing Hard Water Deposits / General Cleaning

Hard water deposits may build up in your unit, depending on the mineral content of your water. If left unattended, it can hinder performance. Cleaning internal parts: add 2 tablespoons of white vinegar to a full reservoir of warm water. Point the handle and tip into sink. Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.

This process should be done every 1 to 3 months to ensure optimal performance.

Leakage

If leaking due to a damaged hose, replacement hoses and handles can be purchased at www.waterpik.com or contact Water Pik Inc. customer service for a self service repair kit.

Service Maintenance

Waterpik Water Flossers have no consumer serviceable electrical items and do not require routine service maintenance. For all accessories go to www.waterpik.com. You may also call our toll-free customer service number at 1-800-525-2774 (USA) or 1-888-226-3042 (Canada). Refer to the serial and model numbers in all correspondence. These numbers are located on the bottom of your unit.

Still have questions? Go to www.waterpik.com.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USING.

This product is for household use.

When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:

To reduce the risk of electrocution:

Do not handle plug with wet hands.
Do not place in or drop into water or other liquid.
Do not use while bathing.
Do not place or store product where it can fall or be pulled into a tub or sink.
Do not reach for a product that has fallen into water. Unplug immediately.
Check the power supply cord for damage before the first use and during the life of the product.

burn hazard
To reduce the risk of burns, electrocution, fire, or injury to persons:

Do not plug this device into a voltage system that is different from the voltage system specified on the device or charger.Use with improper voltage will damage product and VOID warranty.
If product is opened/disassembled for ANY reason warranty is VOID.
Do not use this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Water Pik, Inc. at 1-800-525-2774 or visit www.waterpik.com.
Do not direct water from the Water Flosser under the tongue, into the ear, nose or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
Do not direct water into the nose or ear. The potentially deadly amoeba,Naegleria fowleri, may be present in some tap water or unchlorinated well water and may be fatal if directed into these areas.
Use this product only as indicated in these instructions or as recommended by your dental professional.
Only use tips and accessories recommended by Water Pik, Inc.
Do not drop or insert any foreign object into any opening or hose.
Keep electrical cord away from heated surfaces.
Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
Do not use iodine, or water insoluble concentrated essential oils in the Water Flosser. Use of these can reduce product performance and will shorten the life of the product.
Remove any oral jewelry prior to use of the Water Flosser.
Do not use the Water Flosser if you have an open wound on your tongue or in your mouth.
If your physician or cardiologist has advised you to receive antibiotic premedication before dental procedures, you should consult your dentist and/or medical professional before using the Water Flosser or any other oral hygiene aid.
Magnetic field: Pacemakers and similar implanted medical devices may be affected by magnet.
This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
If the Pik Pocket tip (not included in all models) separates from the shaft for any reason, discard tip and shaft and replace with new Pik Pocket tip.
Do not use the Water Flosser for more than 5 minutes in each two-hour period.
This product does not contain any user serviceable parts. Do not attempt to open.
Using abrasive or chemical cleaners may damage the plastic housing of this product.
Close supervision is necessary when this product is used by, on or near children or invalids.
Children should be supervised to ensure that they do not play with the appliance.
Fill Water Flosser reservoir with warm water or other dental professional recommended solutions only.
