Waterpik Radiance WF-09 - Water Flosser Manual

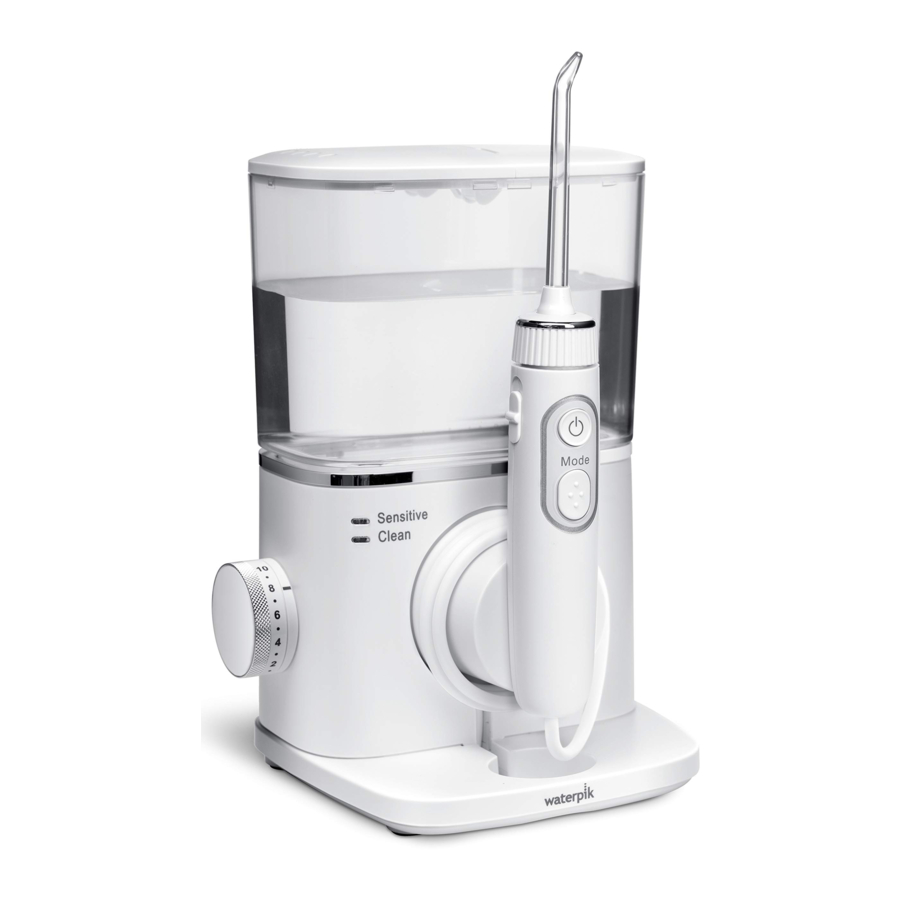

PRODUCT DESCRIPTION

1. Reservoir Lid
2. Reservoir
3. Mode indicator lights
4. Pressure control dial
5. Magnetic handle cradle
6. Tip eject button
7. Power ON/OFF button
8. Clean/Sensitive mode selection button
9. Handle

NOT ALL TIPS INCLUDED IN ALL MODELS

*Replace Every 3 months
**Replace Every 6 months

Replacement accessories may be purchased online at www.waterpik.com, or by phone from Water Pik, Inc. at 1-800-525-2774 (USA) or 1-888-226-3042 (Canada). To find detailed information about tips, other accessories, and product usage please visit our website at www.waterpik.com.

Powering the Unit
Plug the cord into an electrical outlet. If the outlet is controlled by a wall switch, be sure it is turned on.

Preparing the Reservoir
Lift the reservoir lid, remove the reservoir, and fill with lukewarm water. Replace the reservoir over the base and press down firmly and, close the lid.

Inserting and Removing Tips
Insert tip into the center of the Water Flosser handle, pressing down firmly until the tip clicks into place. The colored ring will be flush with the top of the handle if the tip is correctly locked into place. To remove tip from the handle push the tip eject button on the handle.

Prime Unit (First Time Use Only)
Set pressure control dial on base to pressure setting No.10, point the handle and tip into sink. Turn power ON and wait until water flows from the tip. Turn power OFF.

Adjusting the Pressure Setting
Turn the pressure control dial on the base of the unit to the lowest setting for first-time use. Gradually increase pressure over time to the setting you prefer – or as instructed by your dental professional.

Using the Water Flosser
Always place the tip in your mouth before turning the power ON. Lean over sink and slightly close lips. Turn power ON. Allow water to flow from your mouth into the sink.

For best results, start with back teeth and work toward the front teeth. Direct the stream at a 90-degree angle to your gumline with tip in mouth. Glide tip along gumline and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.

Clean Mode
When the power is initially turned on, the Clean mode indicator light will turn on and remain on for approximately 30 seconds before turning of.

Sensitive Mode
Designed to quickly adjust pressure for those sensitive areas of your mouth without having to reach to the base. When sensitive mode is activated, the water flosser will automatically reduce the pressure. For best results, use the clean mode and set the unit to the pressure setting for you and then as you move to sensitive areas simply hit the mode button for sensitive mode and then hit the mode button again after you pass the sensitive area, to go back to clean mode.

When Finished
Turn the power OFF. Empty any liquid left in the reservoir. Unplug the unit.
Note: If you used mouthwash or other solution besides water, see "Using Mouthwash and Other Solutions" section.
NOTE: NOT ALL TIPS INCLUDED WITH ALL MODELS.

TIP USAGE
Pik Pocket™ Tip
The Pik Pocket™ tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets.
To use the Pik Pocket™ tip, set the unit to the lowest pressure setting. Place the soft tip against a tooth at a 45-degree angle and gently place the tip under the gumline, into the pocket.

Tongue Cleaner Tip
Set to lowest pressure setting, place tip in the center/middle of your tongue about half way back. Pull forward with light pressure. Increase pressure as you prefer.

Orthodontic Tip
To use the Orthodontic tip, gently glide tip along gumline, pausing briefly to lightly brush area between teeth and all around orthodontic bracket, before proceeding to the next tooth.

Plaque Seeker™ Tip
To use the Plaque Seeker™ tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip along gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.

Implant Denture Tip
The Implant Denture tip is specifically designed to access areas that are unreachable with a Classic Jet Tip, Plaque Seeker™ tip, or Pik Pocket™ tip. To use the Implant Denture tip, place the tip on the lingual side at one end of the implant retained denture. The opening of the tip is directed between the natural gum tissue and the denture directing the water under the denture. Slowly glide the tip along the space between the natural gum tissue and the denture until you have cleaned underneath the entire length of the denture.

Using Mouthwash and Other Solutions
Your Waterpik® Water Flosser can be used to deliver mouthwash and antibacterial solutions. After using any special solution, rinse unit to prevent clogging by partially filling reservoir with warm water and running unit with tip pointed into sink until unit is empty.

CLEANING AND TROUBLESHOOTING YOUR WATERPIK^® WATER FLOSSER

Cleaning
Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a soft cloth and mild non-abrasive cleanser.
The water reservoir is removable for easy cleaning and is top rack dishwasher safe.

Removing Hard Water Deposits / General Cleaning
Hard water deposits may build up in your unit, depending on the mineral content of you water. If left unattended, it can hinder performance.
Cleaning internal parts: add 2 tablespoons of white vinegar to a full reservoir of warm water. Point the handle and tip into sink. Turn unit ON and run until reservoir is empty. Rinse by repeating with a full reservoir of clean warm water.
This process should be done every 1 to 3 months to ensure optimal performance.

Leakage
If leaking due to a damaged hose, replacement hoses and handles can be purchased at www.waterpik.com or contact Water Pik, Inc. customer service for a self service repair kit.

Battery Removal
This product contains one coin-cell battery (CR-2032) Lithium Manganese Dioxide in the handle assembly. The battery is not replaceable. Please do not dispose of the unit in the household waste. Remove the battery per the instructions below and recycle at your local recycling center.
Note: This process is not reversible
Remove the battery only at the end of the product's life for recycling. Doing so earlier will destroy the product. Observe basic safety precautions to protect your eyes, hands, fingers, and work surface. Remove the battery as shown and recycle it and the rest of the product according to local regulations.

1. Obtain a towel or cloth, a hammer, and a fat head screwdriver.
2. Remove and discard the tip.
3. Cover the handle entirely with the towel or cloth.
4. Clamp the top of the handle against your work surface and strike the handle housing along the seam on the side of the handle. Pry handle apart using a fat head screwdriver.
5. Once the handle is separated into two pieces, remove the coin-cell battery from the circuit board.
6. The internal components should slide out when the handle is positioned upside-down. If this does not occur, repeat steps 5 and 6 until the components release.
7. Recycle and dispose of the battery properly.
8. The remaining product pieces should be discarded appropriately.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USING.

• This product is for household use.
  When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:

To reduce the risk of electrocution:

• Do not handle plug with wet hands.
• Do not place in or drop into water or other liquid.
• Do not use while bathing.
• Do not place or store product where it can fall or be pulled into a tub or sink.
• Do not reach for a product that has fallen into water. Unplug immediately.
• Check the power supply cord for damage before the first use and during the life of the product.

To reduce the risk of burns, electrocution, fire, or injury to persons:

• Do not plug this device into a voltage system that is different from the voltage system specified on the device or charger. Use with improper voltage will damage product and VOID warranty.
• If product is opened/disassembled for ANY reason, warranty is VOID.
• Do not use this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Water Pik, Inc. or visit www.waterpik.com
• The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.
• Do not direct water under the tongue, into the ear, nose or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
• Do not direct water into the nose or ear.
  The potentially deadly amoeba, Naegleria fowleri, may be present in some tap water or unchlorinated well water and may be fatal if directed into these areas.
• Use this product only as indicated in these instructions or as recommended by your dental professional.
• Only use tips and accessories recommended by Water Pik, Inc.
• Do not drop or insert any foreign object into any opening or hose.
• Keep electrical cord away from heated surfaces.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Do not use iodine or water insoluble concentrated essential oils in this product. Use of these can reduce performance and will shorten the life of the product. Use of these products may void warranty.
• Fill reservoir with water or other dental professional recommended solution only.
• Remove any oral jewelry prior to use of this product.
• Do not use if you have an open wound on your tongue or in your mouth.
• If your physician or cardiologist has advised you to receive antibiotic premedication before dental procedures, you should consult your dentist before using this instrument or any other oral hygiene aid.
• If the Pik Pocket™ tip (not included in all models) separates from the shaft for any reason, discard tip and shaft and replace with new Pik Pocket™ tip (PP-100E).
• Do not use this product for more than 5 minutes in each two-hour period.
• Unit will shut of automatically after 5 minutes of continuous usage.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• This product does not contain any user serviceable parts. Do not attempt to open except for battery disposal. See "Battery Removal" section.
• Using abrasive or chemical cleaners may damage the plastic housing of this product.
•
  This device uses wireless communication to control the ON/OFF function of the water flosser pump motor from the water flosser handle. This device was designed for Home use. To avoid electromagnetic interference, do not operate this device in restricted locations such as aircrafts or specially marked areas in hospitals.

SAVE THESE INSTRUCTIONS

www.waterpik.com
