Specification:
Blow Per Minute
Bore Diameter
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

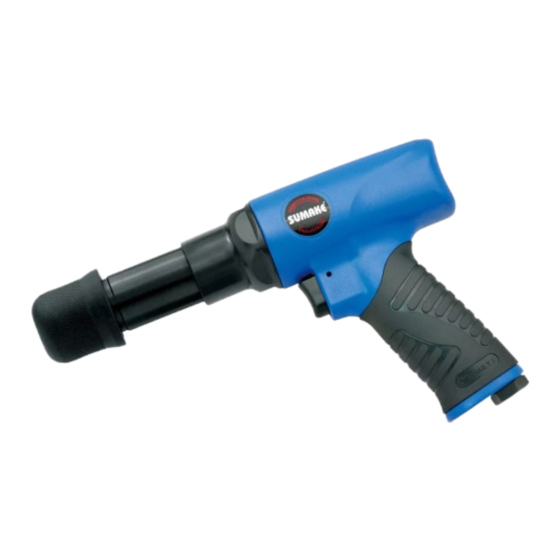

190mm Vibration-Reduction
Air Hammer (Round) (Hex)
ST-2237/R, ST-2237/H
3,000 b.p.m.
3/4" (19 mm)
2-51/64" (71 mm)
7.8 CFM (220 L/min)
7.48" (190 mm)
1/4" (6.35 mm)
3/8" (10 mm)
90 psi (6.3 bar)
3.52 lbs (1.6 kg)
Noise and Vibration:
Vibration
EN ISO 28927-10
Sound Pressure Level
Load:
16.87 m/s²
Sound power level
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 100 dB(A)
protector at
environment
load: 111 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2237/R(H)-S-1910A-JIF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-2237/R
Summary of Contents for Sumake ST-2237/R

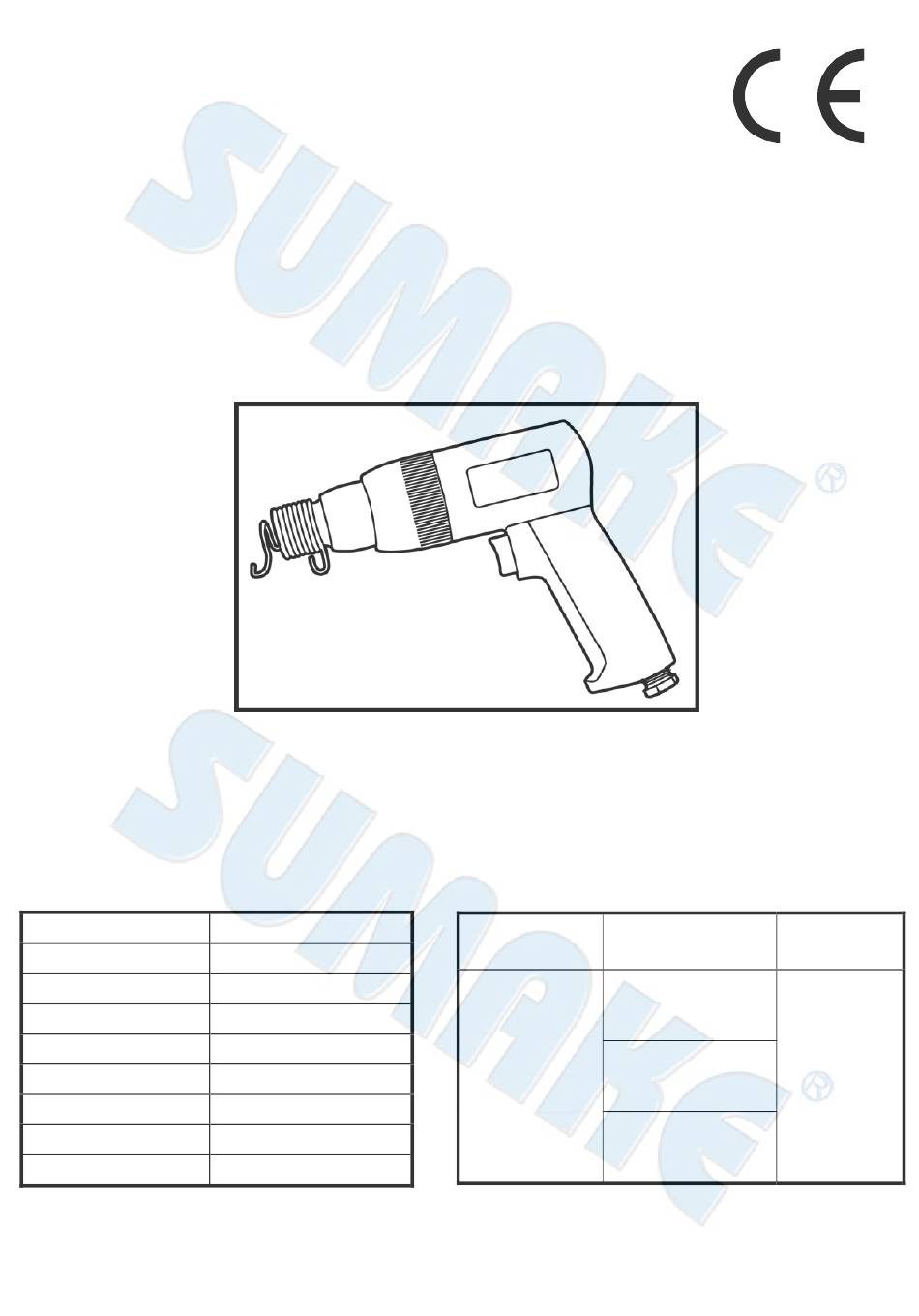

- Page 1 Air Hose (I.D.) 3/8” (10 mm) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 3.52 lbs (1.6 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2237/R(H)-S-1910A-JIF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： 190mm VIBRATION-REDUCTION AIR HAMMER (ROUND) (HEX) Model/ Serial No.：ST-2237/R, ST-2237/H to which this declaration applies, complies with these normative documents: ...
- Page 3 SUMAKE is a manufacturer and exporter of air SUMAKE is a manufacturer and exporter of air SUMAKE is a manufacturer and exporter of air the tool.
- Page 4 2237QC-02 O-Ring (d1.8xW2.4) (P12) 2237QC-12 Case Valve 2237QC-03 O-Ring (d3.8xW1.9) (P3) 2237QC-13 Piston 2237QC-04 Throttle Valve 2237R-14 Cylinder Round (10.1mm) [ST-2237/R] 2237QC-05 Bushing Valve 2237H-14 Cylinder Hex (10mm) [ST-2237/H] 2237QC-06 Spring Valve 2237H-14A Cylinder Hex (11mm) [ST-2237/H] 2237QC-07 Button Throttle...
- Page 5 HAMMER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 7. Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure. 8. Do not exceed the maximum air pressure stated on the tool. 9.
