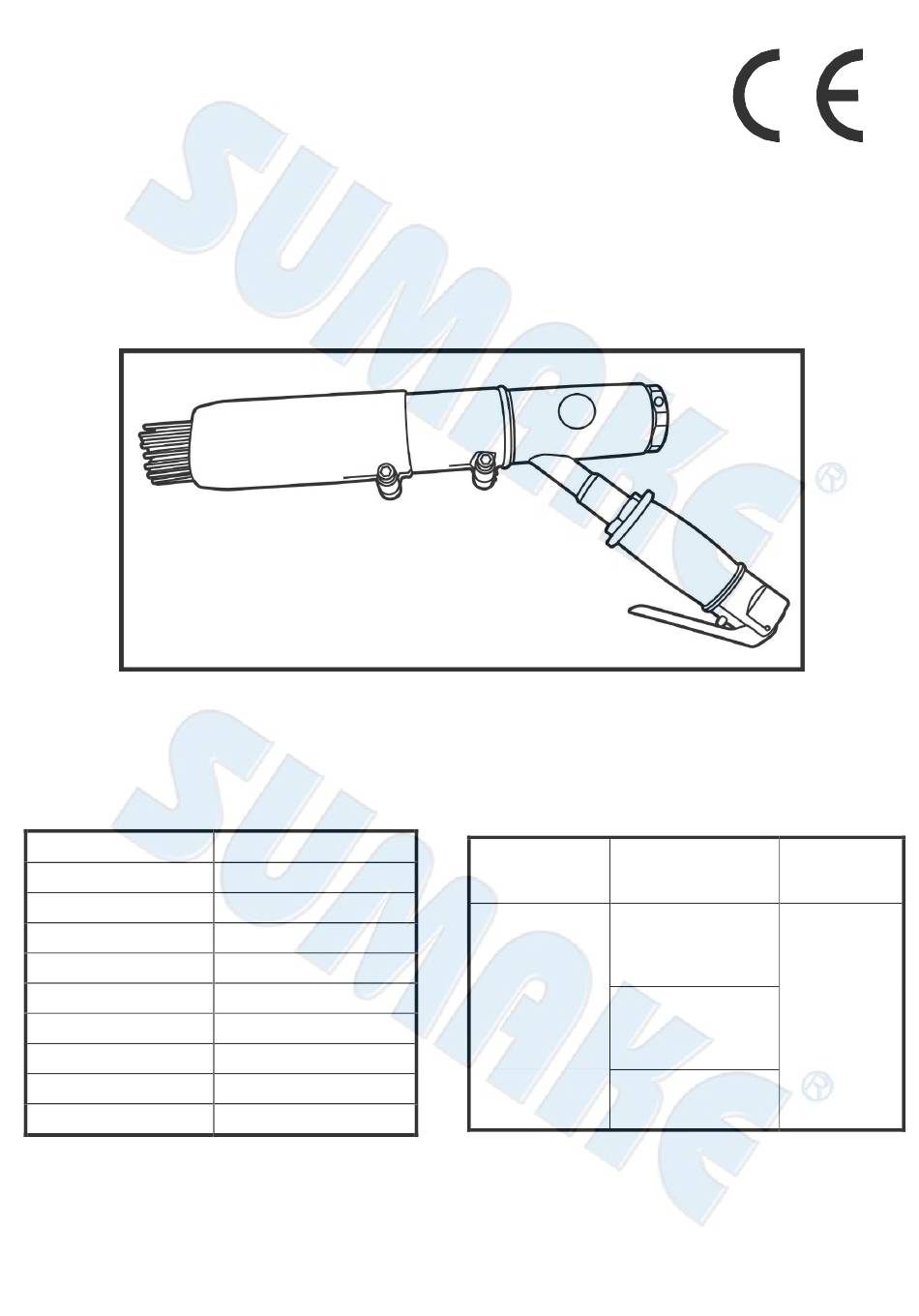

Specification:
Blow Per Min
Piston Stroke
Needle
Option Neelde
Overall Length
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
Air Needle Scaler
ST-2559
3,000 b.p.m.
39 mm
Φ3x180x28pcs
Φ4x180x19pcs
17-13/25" (445 mm)
10 CFM (285 L/min)
3/8" (10 mm)
1/2" (13 mm)
90 psi (6.3 bar)
10.34 lbs (4.7 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
Load:
18.6 m/s²
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Please always
load: 95.7 dB(A)
protector at
environment
Sound power level
noise level > 80
load: 106.7 dB(A)
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2559-S-2109E-JIF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-2559
Summary of Contents for Sumake ST-2559
- Page 1 1/2” (13 mm) Air Hose (I.D.) risk of impaired hearing! Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) ² K= 1.5 m/s K= 3dB Net Weight 10.34 lbs (4.7 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2559-S-2109E-JIF...
-
Page 2: Ec Declaration Of Conformity
DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：AIR NEEDLE SCALER Model/ Serial No.：ST-2559 to which this declaration applies, complies with these normative documents: ... -
Page 3: Main Applications
We can supply Φ3, Φ4 needles as soon as the air leaves the compressor. vice division of our company. for ST-2559. A portion of the water content, however, is Change needles according to your condensed in the piping, and can enter the ★In ordering parts and components, give... -
Page 4: Parts List
ST-2559 AIR NEEDLE SCALER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 2559-01 Body Cap 2559-15 O-Ring (d4.8xW1.9) (P5) 2559-02 Body 2559-15A O-Ring (d2.5xW1.5) 2559-03 O-Ring (d3.2xW2.5) 2559-16 Valve Body 2559-04 Cylinder 2559-17 Trigger 2559-05 Piston 2559-18 Spring Pin (Φ3x24L) - Page 5 SCALER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary.
