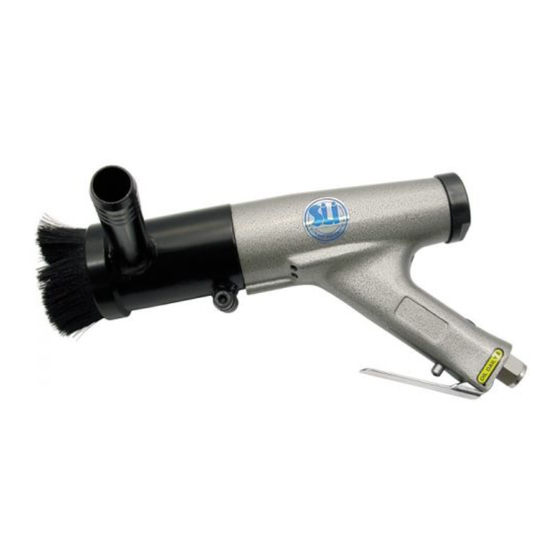

Vacuum Type Air Needle Scaler
Specification:
Blow Per Minute
Needle
Needle (Option)
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-2553A
3,500 b.p.m.
Φ3x180x28 pcs
Φ2x180x66 pcs
Φ4x180x14 pcs
28 mm
10 CFM (283 L/min)
13-29/50" (345 mm)
3/8" (10 mm)
3/8" (10 mm)
90 psi (6.3 bar)
9.24 lbs (4.2 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
Load:
8.06 m/s²
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
load: 98.77 dB(A)
Please always
Sound power level
environment
load: 109.77 dB(A)
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2553A-S-2210F-JIF
Remark
wear ear
protector at
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-2553A
Summary of Contents for Sumake ST-2553A

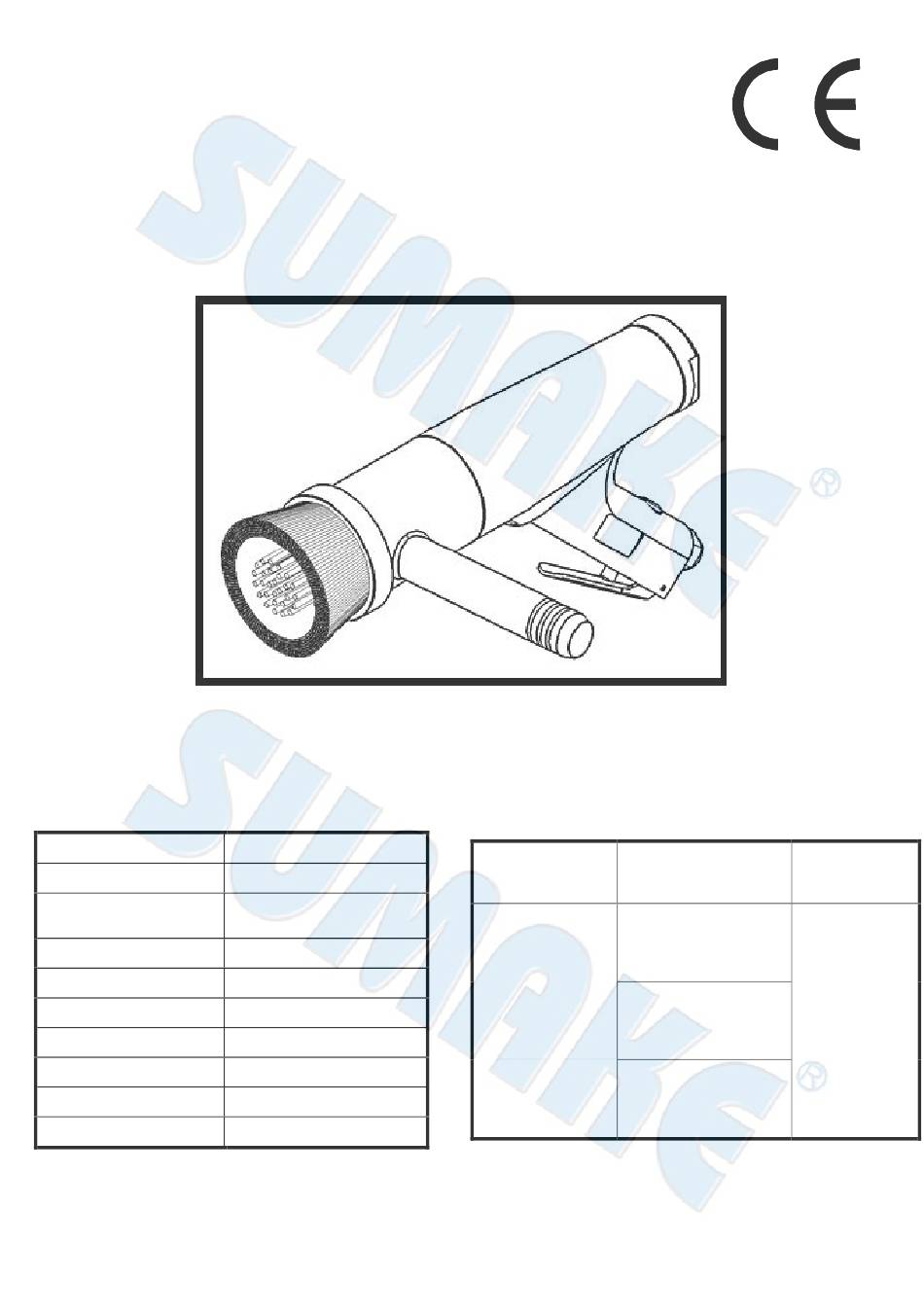

- Page 1 Air Hose (I.D.) 3/8” (10 mm) Uncertainty Uncertainty hearing! Air Pressure 90 psi (6.3 bar) K= 1.5 m/s K= 3dB ² Net Weight 9.24 lbs (4.2 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2553A-S-2210F-JIF...
- Page 2 2022 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment： VACUUM TYPE AIR NEEDLE SCALER Model/ Serial No.：ST-2553A to which this declaration applies, complies with these normative documents: Machinery Directive: 2006/42/EC ...
- Page 3 1. Main Applications 4. Changing Needles 2-3 Air hose Blow compressed air through the supply ․de-slagging, de-sputtering of welds hose before connecting the tool. (1) Unfasten the hexagon socket head bolt ․shot-peening after welding of the needle guide with the hexagon ․cleaning metal surfaces of rust and wrench key and pull out the needle guide.
- Page 4 Needle Φ4x180mm (Opt.) 2553-19 Throttle Lever 2553-06 Throttle Anvil 2553-20 Spring Pin 3x28 2553-07 Piston 2553-21 Hex. Wrench Key (6mm) 2553-08 Safety Band 2553-22 Inlet Bushing (3/8'') 2553-09 Cylinder 2553A-24 Plastic Shrout [For ST-2553A] 2553-10 O-Ring (D50.39xW3.53) 2553A-26 Brush [For ST-2553A] ST-2553A-P-2112D-JI...
- Page 5 SCALER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary.
