Specification:
Blow Per Minute
Piston Stroke
No. of Needle
Overall Length
Air Consumption
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS

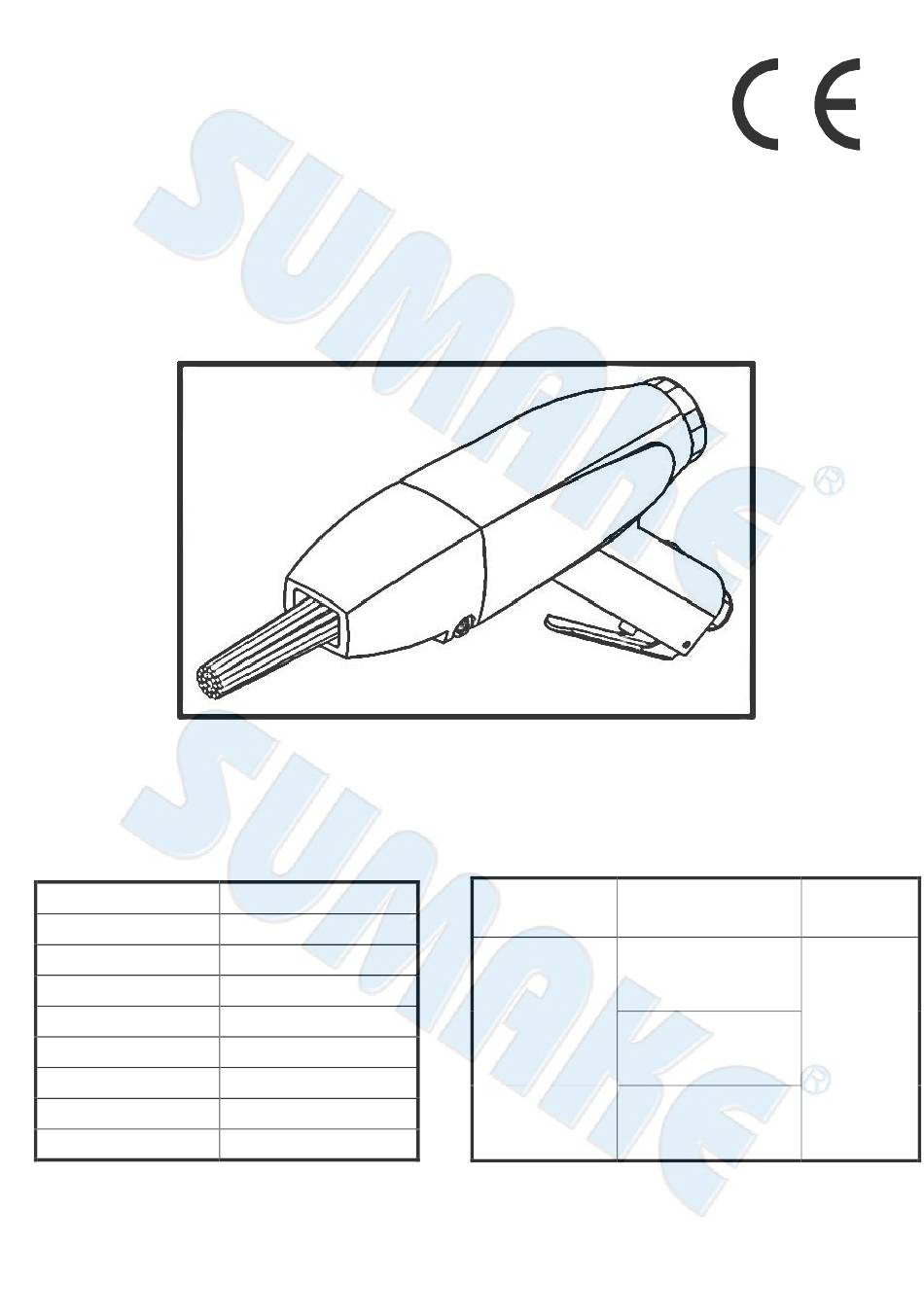

Air Needle Scaler
ST-2561
4,000 b.p.m.
27 mm
Φ3x180x23pcs
13.19" (335 mm)
10 CFM (285 L/min)
3/8" (10 mm)
3/8" (10 mm)
90 psi (6.3 bar)
6.16 lbs (2.8 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Load:
12.89 m/s²
Uncertainty
²
K= 1.5 m/s
Noise
EN ISO 15744
Sound Pressure Level
load: 96.3 dB(A)
Sound power level
noise level > 80
load: 107.3 dB(A)
Uncertainty
K= 3dB
ST-2561-S-2109H-JIF
Remark
Please always
wear ear
protector at
environment
dB(A) due to
risk of
impaired
hearing!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sumake ST-2561
Summary of Contents for Sumake ST-2561
- Page 1 3/8” (10 mm) Air Hose (I.D.) risk of impaired Uncertainty Uncertainty Air Pressure 90 psi (6.3 bar) hearing! ² K= 1.5 m/s K= 3dB Net Weight 6.16 lbs (2.8 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2561-S-2109H-JIF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：AIR NEEDLE SCALER Model/ Serial No.：ST-2561 to which this declaration applies, complies with these normative documents: ...
- Page 3 We can supply Φ3 needles for ST-2561 as soon as the air leaves the compressor. vice division of our company.
- Page 4 ST-2561 AIR NEEDLE SCALER PARTS LIST Parts No. Description Q'ty Parts No. Description Q'ty 2561-01 Needle Guide Ass'y 2561-13 Throttle Valve Ass'y 2561-02 Lock Ring 2561-14 O-Ring (d8.8xW1.9) (P9) 2561-03 Nut (5/16) 2561-15 Valve Cap 2561-04 Cap Head Screw (5/16"x1-3/4")
- Page 5 SCALER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 warnings shall indicate the nature of the hazard, the risk of injury and the avoidance action to take. General preparation and connection: Before connecting the air hose, apply 4 to 5 drops of SAE#10-20 spindle oil at the air inlet. Also, every 3 to 4 hours of operation, oiling is necessary.
