Air Scaling Hammer (Lever Type)
Specification:
Blow Per Minute
Piston Stroke
Air Consumption
Overall Length
Air Inlet (PT)
Air Hose (I.D.)
Air Pressure
Net Weight
SUMAKE INDUSTRIAL CO., LTD
4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91
PNEUMATIC TOOLS
ST-2272L
7,000 b.p.m.
38 mm
10.6 CFM (300 L/min)
21.65" (550 mm)
3/8" (10 mm)
3/8" (10 mm)
90 psi (6.3 bar)
5.28 lbs (2.4 kg)
Noise and Vibration:
Vibration
EN ISO 28927-9
Sound Pressure Level
Load:
35.1 m/s²
Sound power level
load: 100.1 dB(A)
Uncertainty
K= 1.5 m/s
²
Noise
EN ISO 15744
Please always
load: 89.1 dB(A)
protector at
environment
noise level > 80
dB(A) due to
risk of impaired
Uncertainty
K= 3dB
ST-2272L-S-1510F-JIF
Remark
wear ear
hearing!
Advertisement
Table of Contents
Related Manuals for Sumake ST-2272L
Summary of Contents for Sumake ST-2272L

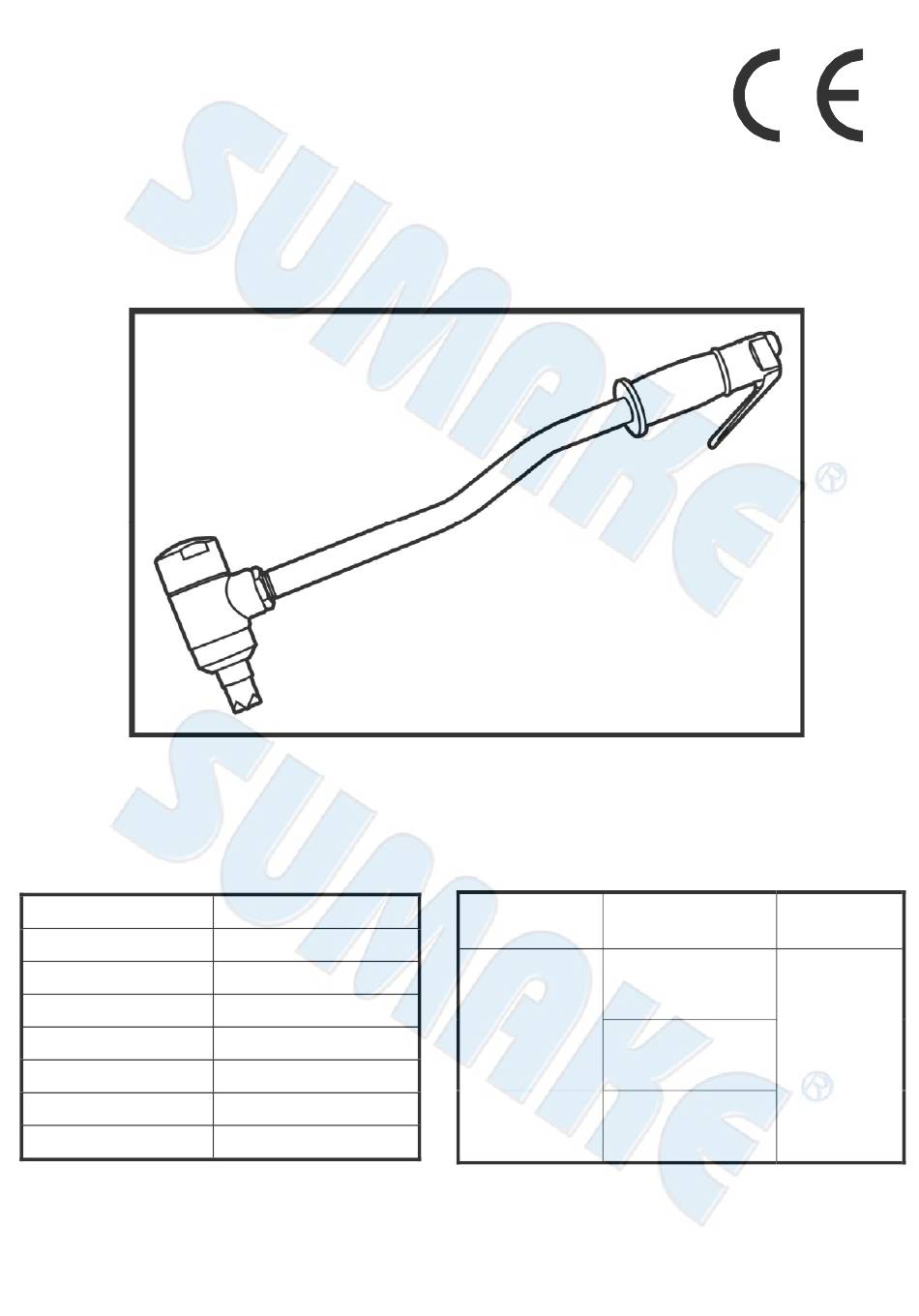

- Page 1 3/8” (10 mm) dB(A) due to risk of impaired Air Pressure 90 psi (6.3 bar) Uncertainty Uncertainty hearing! K= 1.5 m/s ² K= 3dB Net Weight 5.28 lbs (2.4 kg) SUMAKE INDUSTRIAL CO., LTD 4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91 ST-2272L-S-1510F-JIF...
- Page 2 DECLARATION OF CONFORMITY SUMAKE INDUSTRIAL CO., LTD. 4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan declare in sole responsibility that the equipment Equipment：AIR SCALING HAMMER (LEVER TYPE) Model/ Serial No.：ST-2272L to which this declaration applies, complies with these normative documents: ...
- Page 3 There is no user serviceable part inside this tool. SUMAKE is a manufacturer and exporter of air mechanism, and may cause trouble. So, install an Please send the tool to a qualified personnel or our tools since established.
- Page 4 ST-2272L AIR SCALING HAMMER(LEVER TYPE) PARTS LIST Parts No. Description Q'ty 2272L-10A Cylinder 2272L-11 Valve Cap 2272L-12 Buffer 2272L-15 Piston 2272L-16 Cylinder Head 2272L-17 O-Ring (D31.7xW3.5) 2272L-18 Valve Sclren 2272L-19 O-Ring Valve Cap (D7.8xW2.4) 2272L-20 Valve Spring 2272L-21 Valve Stem 2272L-22 O-Ring (D4.8xW1.9)
- Page 5 HAMMER Original instructions SUMAKE Industrial Co. Ltd.
- Page 6 The tool has been manufactured in conformity with the instruction of EU machine directive. The EU mark will be considered void in the event of inexpert repairs, the use of non-original parts and in case of non-observance of the safety instructions in the user’s manual. Possible direct or indirect consequential damages are not the responsibility of SUMAKE Industrial co., Ltd. General safety rules: Watch the tool at all times when in use.
- Page 7 avoiding awkward off-balanced postures. The operator should change posture during extended tasks, which can help avoid discomfort and fatigue. 3. If the operator experiences symptoms, such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should tell the employer and consult a qualified health professional.
- Page 8 7. Whenever universal twist couplings (claw couplings) are used, lock pins shall be installed and whipcheck safety cables shall be used to safeguard against possible hose-to-tool and hose-and-hose connection failure. 8. Do not exceed the maximum air pressure stated on the tool. 9.
