- Page 1 IM3058 12/2023 REV05 ® SPEEDTEC 200C BR OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANKS! For having chosen the QUALITY of Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX SPEEDTEC® 200C BR K14099-3 INPUT Input Voltage U 230 Vac ± 10%, 1-phase 120 Vac ± 10%, 1-phase Frequency 50/60 Hz Input Amperes I 21,5A 1max Input Power at Rated Cycle (40°C) 6,2kVA @ 25% Duty Cycle 2,6kVA @ 40% Duty Cycle cos φ... -
Page 4: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 5: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 6 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 7: Introduction

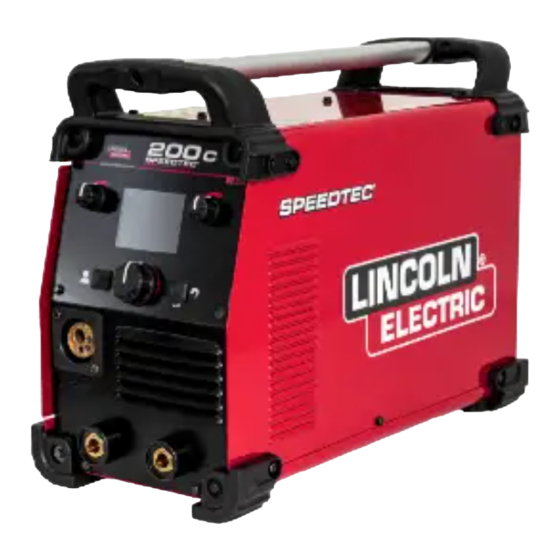

Introduction ® The welding machine SPEEDTEC 200C BR enables For GMAW and FCAW-SS process, the technical welding: specification describes: GMAW (MIG/MAG) Type of welding wire FCAW-SS Wire diameter SMAW (MMA) Recommended equipment, which can be bought by user, GTAW (arc ignition using lift TIG) was mentioned in the chapter "Suggested Accessories". - Page 8 Controls and Operational Features Figure 2 10. Power Switch ON/OFF (I/O): Controls the input power Figure 1 to the machine. Be sure the power source is connected to the mains supply before turning power 1. EURO Socket: For connecting a welding gun (for on ("I").
- Page 9 16. Wire Spool Support: Maximum 5kg spools. Accepts If the welding polarity has to be changed, user should: plastic, steel and fiber spools onto 51mm spindle. Switch off the machine. Determine the wire polarity for the wire to be used. 17.
- Page 10 Loading the Electrode Wire Adjusting of Force of Pressure Roll Force Turn the machine off. Open the side cover of the machine. The pressure arm controls the amount of force the drive Unscrew the locking nut of the sleeve. rolls exert on the wire.
- Page 11 Changing Driving Rolls Connect the work lead to the welding piece with the work clamp. Install the proper wire. WARNING Install the proper drive roll. Turn the input power off of the welding power source Make a sure, if it is needed (GMAW process), that the before installation or changing drive rolls.
- Page 12 Welding GMAW in Synergic Mode Welding SMAW (MMA) Process ® In synergic mode, the welding load voltage is not set by SPEEDTEC 200C BR packaging does not include the user. The correct welding load voltage will set by the electrode holder and work lead necessary for SMAW machine’s software.
- Page 13 Welding GTAW Process Memory – Save, Recall, Delete ® ® SPEEDTEC 200C BR can be used to GTAW process SPEEDTEC 200C BR enables saving, recalling and with DC (-). Arc ignition can be achieved only by lift TIG deleting the parameter’s settings. 9 memories can be method (contact ignition and lift ignition).
- Page 14 ® Guide’s Marking Interface SPEEDTEC 200C BR Description of the user interface in "Quick Guide" chapter Select Welding Process SMAW (MMA) Welding Basic menu GMAW (MIG/MAG) Burnback Brightness Level Manual Welding View Software FCAW- Self shielded Run-in WFS Hardware Version Manual Welding Information GMAW...
- Page 15 We respond to our customers based on the best become null and void. information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, Any noticeable damage should be reported immediately and assumes no liability, with respect to such information and repaired.
-
Page 16: Weee
12/05 Part list reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 17: Suggested Accessories
Suggested Accessories K10413-15-3M The gas-cooled gun LG150 to GMAW process - 3m. KP10461-1 Gas nozzle conical Ø12mm. KP10440-06 Contact Tip M6x25mm ECu 0.6mm KP10440-08 Contact Tip M6x25mm ECu 0.8mm KP10440-09 Contact Tip M6x25mm ECu 0.9mm KP10440-10 Contact Tip M6x25mm ECu 1.0mm KP10440-10A Contact Tip M6x25mm Al 1.0mm KP10468...
