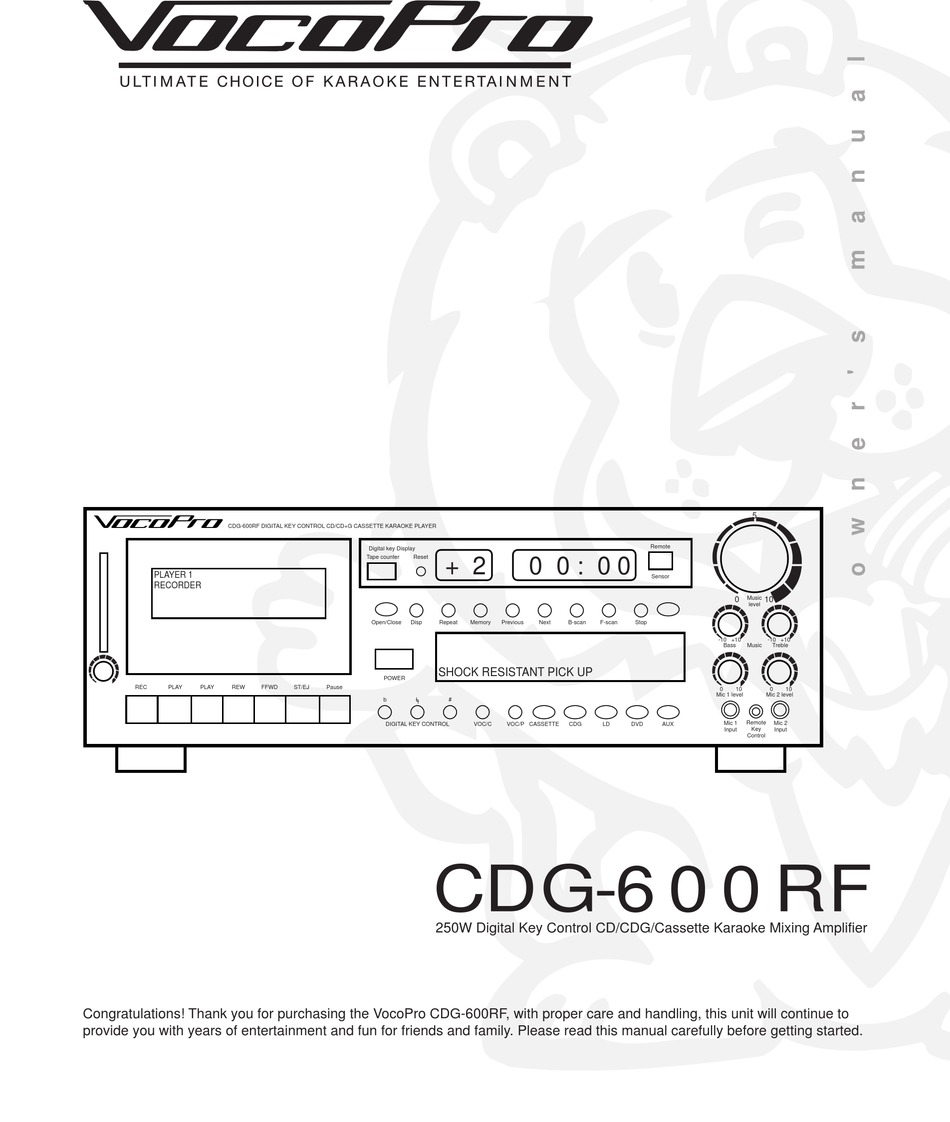

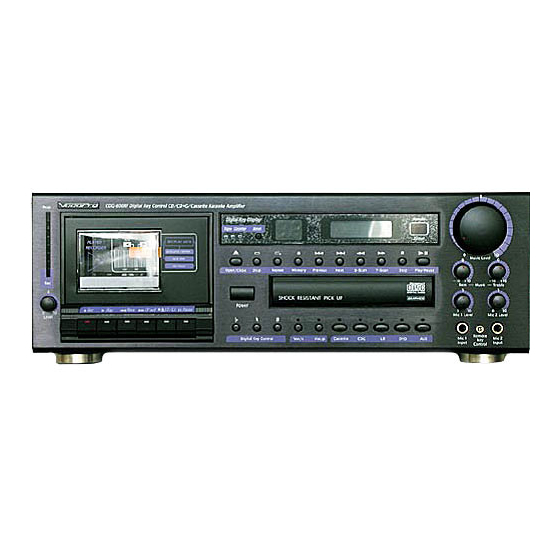

CDG-600RF DIGITAL KEY CONTROL CD/CD+G CASSETTE KARAOKE PLAYER
PLAYER 1
RECORDER
REC
PLAY
PLAY
REW
FFWD
Congratulations! Thank you for purchasing the VocoPro CDG-600RF, with proper care and handling, this unit will continue to
provide you with years of entertainment and fun for friends and family. Please read this manual carefully before getting started.
Digital key Display
Tape counter
Reset
+ 2
Open/Close
Disp
Repeat
Memory
SHOCK RESISTANT PICK UP
POWER
ST/EJ
Pause
b
L L
#
DIGITAL KEY CONTROL
CDG-600RF
250W Digital Key Control CD/CDG/Cassette Karaoke Mixing Amplifier
Remote
0 0 : 0 0
Sensor
Previous
Next
B-scan
F-scan
Stop
VOC/C
VOC/P
CASSETTE
CDG
LD
DVD
5
Music
0
10
level
-10 +10
-10 +10
Bass
Music
Treble
0
10
0
10
Mic 1 level
Mic 2 level
Remote
Mic 1
Mic 2
AUX
Input
Key
Input
Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CDG-600RF and is the answer not in the manual?

Questions and answers

Related Manuals for VocoPro CDG-600RF

Summary of Contents for VocoPro CDG-600RF

  • Page 1 ST/EJ Pause Congratulations! Thank you for purchasing the VocoPro CDG-600RF, with proper care and handling, this unit will continue to provide you with years of entertainment and fun for friends and family. Please read this manual carefully before getting started.

  • Page 2: Table Of Contents

    Other Parts of the CDG-600RF ........

  • Page 3: Cautions And Warnings

    Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger.
  • Page 4 CAUTION: Read this before operating your unit The apparatus is not disconnected from the AC power source so long as it is connected to the wall outlet, even if the apparatus itself is turned off. To fully insure that the apparatus is indeed fully void if residual power, leave unit disconnected from the AC outlet for at least fifteen seconds.

  • Page 5: Welcome

    Club VocoPro for Karaoke news and events, chat rooms, club directories and even a Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit.

  • Page 6: Listening For A Lifetime

    Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level.

  • Page 7: Before Getting Started

    • Insert each cable firmly into the designated jack. • If you place components above the CDG-600RF, route all cables down the side of the back of the CDG-600RF instead of straight down the middle of the back of the CDG-600RF.

  • Page 8: Features And Specifications

    CASSETTE WOW-FILTER (ATT-111N 3KHZ) ... POWER SUPPLY, OTHERS POWER REQUIREMENTS... POWER CONSUMPTION ... VIDEO VIDEO SYSTEMS (CDG ONLY) ... AC OUTLETS UNSWITCHED ... DIMENSIONS:... CDG-600RF DIGITAL KEY CONTROL CD/CD+G CASSETTE KARAOKE PLAYER Digital key Display Tape counter Reset PLAYER 1 RECORDER Open/Close Disp Repeat...

  • Page 9: Quick Start

    IMPORTANT! Be sure all your components i.e., amplifier, TV monitor, etc. are connected to the CDG-600RF BEFORE connecting to a power source and powering on. Be sure to use caution when plugging in any electrical appliance. Connect the power cord attached to the back of the CDG-600RF player into any wall outlet or surge protector.
  • Page 10 Remember to allow for vocal variances in each song where it may be necessary to sing louder or softer TURN ON THE CDG-600RF 1. Locate the power switch on the front of the CDG-600RF player. Press the power switch once to turn on the machine.

  • Page 11: Usign Effects And Change The Key

    NOTE: When raising or lowering the key of the music the tempo will remain the same. 1. First, locate the KEY CONTROL buttons on the front of the CDG-600RF player. There are three buttons under which are the words KEY CONTROL. There is a button for each of the following three functions: a.

  • Page 12: Listening To Your Recording

    DJ MICROPHONE INPUT JACK There is a third microphone input located on the back of the CDG-600RF amplifier next to the speaker jacks. This microphone channel is best used as a KJ/DJ microphone as it is echo-bypassed. The volume control for the third microphone input is located just to the right of the jack itself.

  • Page 13: Connecting Other Components

    Using and RCA patch cable, connect one set of RCA plugs to the L/R jacks on an available AUDIO INPUT channel on the CDG-600RF. (Available AUDIO INPUT channels are LD, DVD and AUX) Connect the other set of RCA plugs to the AUDIO OUTPUT jacks on your external playback device (check manufacturer’s instructions).

  • Page 14: Controls And Functions Of The Remote Control

    USING THE REMOTE CONTROL The CDG-600RF comes with a handy remote control to allow the user to operate the Karaoke functions from up to twenty-five feet from the unit. The remote control offers the user fast forward, rewind, skip, search, programmable memory, play/pause, open/close for the CD/ CDG tray and stop.
  • Page 15 When a song is playing, it serves as a "rewind" button and will "SCAN" the song selection in reverse. On the front panel of the CDG-600RF, it is the same as the "B-SCAN" and "PREV" buttons combined. (See PARTS AND FUNCTIONS, FRONT PANEL diagram, #9, #12) 5.

  • Page 16: Front Panel Controls And Functions

    Front Panel Controls and Functions 1. POWER BUTTON: Turns on the power to the CDG-600RF. 2. MEMORY BUTTON: The memory function is used to program specific song selections in any order. First, you’ll need to clear the memory. If there is a CD/CDG in the player press stop. Press the "OPEN/CLOSE’ button once until the tray opens and again to close it.
  • Page 17 13. DVD: Digital video disc input selector key. Pressing this key will select the component that is connected to the DVD input jacks. For example, if a DVD player is used with the CDG-600RF and it is connected to the "DVD"...
  • Page 18 NOTE: DO NOT press the cassette key if you are recording from the CDG player in the CDG-600RF onto the cassette deck, otherwise you will not be able to hear the CDG disc that is being played. (The "CDG" key must be pressed when recording from the CDG player to the cassette deck.
  • Page 19 30. LD: Laser disc input selector key. Pressing this key will select the component that is connected to the "LD" input jacks. For example, if a DVD player is used with the CDG-600RF, and it is properly connected to the "LD"...
  • Page 20 43. REC. LED METER: This LED meter reflects the record signal level in "real-time" to allow for accurate record level adjustment NOTE: should not surpass record levels should be kept below the first red LED, as distortion may occur beyond that point. CDG-600RF DIGITAL KEY CONTROL CD/CD+G CASSETTE KARAOKE PLAYER PLAYER 1 RECORDER PLAY...

  • Page 21: Rear Panel Controls And Functions

    INPUT AUDI0 INPUT TERMINAL VIDEO ONLY DJ MIC VOL BASS TREBLE ECHO MIC 1-2 CONT VIDEO OUTPUT www.vocopro.com AUDI0 OUTPUT 110-120V 220-240V SWITCH TO: NTSC FOR U.S. TV SYSTEM PAL FOR EURO TV SYSTEM NTSC VOLTAGE SELECT VIDEO SYSTEM AC 200W...
  • Page 22 AND vocals, being played on the CDG-600RF. Connect the left and right "PRE" output jacks of the CDG-600RF to the respective left and right input jacks (usually "REC IN" on most tape decks) on the back of your external tape deck.
  • Page 23 CDG-600RF speakers. Connect the "R" and "L" "AUDIO INPUT" jacks on the CDG-600RF to the "L" and "R" "AUDIO OUTPUT" jacks on the laser disc player, using an RCA type connector cable. WHEN PLAYING AND EXTERNAL LD PLAYER, BE SURE TO SELECT LD SETTING ON THE FRONT OF THE CDG-600RF, OTHERWISE THERE WILL BE NO AUDIO OR VIDEO.

  • Page 24: Troubleshooting Guide

    2. Be sure the "VIDEO OUTPUT" jack (See PARTS AND FUNCTIONS diagram) on the rear panel of the CDG-600RF is connected to the "VIDEO INPUT" section of the TV monitor. 1. Turn down the microphone volume.
