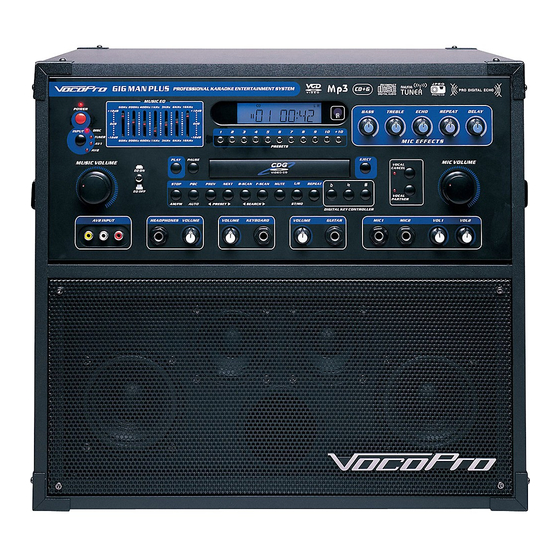

THE SINGER'S ULTIMATE CHOICE
Features:
• All-in-One Design with 4-Speaker Cabinet Provides 100W Total
Power (Peak to Peak)
• Multi-Format Player with Direct Track Access Supports VCD, CDG,
MP3, Photo-CD, CD, CD-R, and CD-RW Formats
• AM/FM Radio Tuner with Programmable Preset Stations
• 1/4" Guitar and Keyboard Inputs with Individual Volume Controls
• Two 1/4"/XLR Microphone Inputs with Bass, Treble and Individual
Volume Controls
• Digital Echo, Repeat and Delay Controls for Vocal Enhancement
• 14-step Digital Key Controller to Transpose the Key of Built-in Disc
Player Audio
• Vocal Cancel and Partner Modes for Canceling Vocals from
Multiplexed Media
• 7-Band Equalizer for Precise Audio Adjustments and Room Tuning
• External Speaker Jacks with Internal/External Speaker Selector
• Remote Control for Easy Operation
• Inputs/Outputs: 2 A/V (RCA) inputs and 2 A/V (RCA)/ 1Pair
Balanced (XLR) outputs
• 110V and NTSC-PAL Compatible for Worldwide Use
GIG MAN PLUS
PROFESSIONAL KARAOKE ENTERTAINMENT SYSTEM
MUSIC EQ
POWER
60Hz 200Hz 400Hz 1KHz
3KHz
6KHz
16KHz
+12dB
+12dB
0dB
0dB
DISC
INPUT
1
2
3
TUNER
-12dB
-12dB
60Hz 200Hz 400Hz 1KHz
3KHz
6KHz
16KHz
AV1
AV2
PLAY
PAUSE
MUSIC VOLUME
EQ ON
STOP
PBC
PREV
NEXT
B-SCAN
EQ OFF
AM/FM
AUTO
PRESET
SEARCH
AV2 INPUT
HEADPHONES
VOLUME
VOLUME
GIG MAN PLUS
PROFESSIONAL KARAOKE ENTERTAINMENT SYSTEM
R
TM
BASS
TREBLE
ECHO
REPEAT
DELAY
4
5
6
7
8
9
10
+10
MIC EFFECTS
PRESETS
EJECT
MIC VOLUME
VOCAL
CANCEL
F-SCAN
MUTE
L/R
REPEAT
VOCAL
PARTNER
ST/MO
DIGITAL KEY CONTROLLER
MIC1
MIC2
VOL1
VOL2
KEYBOARD
VOLUME
GUITAR
Advertisement
Table of Contents
Related Manuals for VocoPro Voco user guide portable speaker
Summary of Contents for VocoPro Voco user guide portable speaker
- Page 1 THE SINGER'S ULTIMATE CHOICE Features: • All-in-One Design with 4-Speaker Cabinet Provides 100W Total Power (Peak to Peak) • Multi-Format Player with Direct Track Access Supports VCD, CDG, MP3, Photo-CD, CD, CD-R, and CD-RW Formats • AM/FM Radio Tuner with Programmable Preset Stations •...
-
Page 2: Table Of Contents
Table of contents Safety instructions ... 2 FCC information ... 3 Welcome ... 4 Listening for a lifetime ... 5 Specifications ... 6 Front Panel ... 7-9 Rear Panel ... 10 Remote Control ... 11-13 AM/FM Tuner ... 14-15 AV Inputs ... 16 Audio Outputs ... -
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 4: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now it s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Specifications
Specifications General AC Input Voltage: Audio Output Power: AV1 AV2 Audio input sensitivity: Video Input Sensitivity: Mic Input Sensitivity: Keyboard / Guitar Input Sensitivity: Video Output Level: Audio Output Level: S/N Ratio: Frequency range: Step Frequency: Intermediate Frequency Operating Temperature ANT input impedance 30dB S/N sensitivity S/N Ratio... -
Page 8: Front Panel
Front panel descriptions Front Panel POWER +12dB DISC INPUT TUNER -12dB MUSIC VOLUME AV2 INPUT 1. POWER button - This button is used to turn the GIG MAN PLUS ‘ON’ or place it in STANDBY mode. NOTE: When in STANDBY mode, the GIG MAN PLUS is not completely powered down and it still contains residual power. - Page 9 Front panel descriptions cont Front Panel 13 14 15 GIG MAN PLUS MUSIC EQ 60Hz 200Hz 400Hz 1KHz POWER +12dB DISC INPUT TUNER -12dB 60Hz 200Hz 400Hz 1KHz MUSIC VOLUME EQ ON EQ OFF AV2 INPUT HEADPHONES 11. DELAY control - Use this control to adjust the DELAY setting of the ECHO effect. As DELAY adjusts the total begin- to-end length of each echo interval, the more DELAY that is applied, the longer each ECHO interval will take to com- plete.
-
Page 10: Front Panel
Front panel descriptions cont Front Panel GIG MAN PLUS MUSIC EQ 60Hz 200Hz 400Hz 1KHz POWER +12dB DISC INPUT TUNER -12dB 60Hz 200Hz 400Hz 1KHz MUSIC VOLUME EQ ON EQ OFF AV2 INPUT HEADPHONES 23. VOCAL PARTNER button - This feature acts very similar to the vocal cancel feature, but with an added voice activation feature that acts like a vocal “auto-pilot”. -
Page 11: Rear Panel
13. AUDIO OUT 1-2 jacks (RCA) - These jacks are for connecting the GIG MAN PLUS’ AUDIO OUTPUT to amplifier, recording or mixing devices. Connect paired RCA-type patch cables from these jacks to appropriate INPUT jacks on external audio devices. www.vocopro.com AM/ANT INPUT www.vocopro.com... -
Page 12: Remote Control
Remote control descriptions Remote Control PRESETS PRESET/SEARCH DISC TUNER 1. POWER button - This button is used to turn the GIG MAN PLUS ‘ON’ or place it in STANDBY mode. NOTE: When in STANDBY mode, the GIG MAN PLUS is not completely powered down and still contains residual power. - Page 13 Remote control descriptions cont Remote Control PRESETS PRESET/SEARCH DISC TUNER 14. PBC button - When playing a 2.0 compatible VCD disc, an MP3 or PHOTO-CD disc, press this button to enable PBC control for direct track selection, menu support and auto-playback.
- Page 14 Remote control descriptions cont Remote Control PRESETS PRESET/SEARCH DISC TUNER 26. VOCAL CANCEL button - This feature is used to cancel out the lead vocal layer on a 2-channel multiplex CD+G or VCD disc. In order for this feature to work properly, the disc must be multiplex formatted.
-
Page 15: Am/Fm Tuner
AM/FM Tuner descriptions Front Panel POWER DISC INPUT TUNER MUSIC VOLUME AV2 INPUT 1. INPUT SELECTOR - Use this button to turn on the radio. This button toggles through all the INPUT channels (DISC, TUNER, AV1, AV2) for available INPUT SOURCES. Press the button until the TUNER light is on. 2. - Page 16 AM/FM Tuner descriptions cont Remote Control PRESETS PRESET/SEARCH DISC TUNER 1. Preset Buttons - Use these buttons to program and select the radio preset stations. To program a station, hold down a number button for 3 seconds while on the desired station. The screen will display the number once it has been programmed.
-
Page 17: Av Inputs
Getting connected AV Input Connections To connect an AV source player, use an RCA-type AV cable with red, white and yellow colored plugs. For AUDIO, connect the L and R AUDIO OUTPUT jacks from the source player to the L (white) and R (red) AUDIO INPUT jacks on the GIG MAN PLUS, using the AV channel of your choice. -
Page 18: Microphone/Instrument Inputs
Getting connected cont Microphone/Instrument Input Connection After making your main system connections, it is time to get your microphones and instruments connected and ready for performing. Before you get started with your connections we recommend that you take the following tips into consideration: •When connecting instruments, refrain from using defective cables as they can cause significant noise and loud pops, posing a threat to system speakers. -
Page 19: Speaker Connection
To connect this antenna, press down the tabs on the AM antenna receptacle on the back of the GIG MAN PLUS. Now insert the copper-colored wires into each side of the receptacle and then release the tabs to secure the wires in place. SPEAKER 8 *Set to EXT for External Speaker Output Speacker Selector www.vocopro.com FM/ANT AM/ANT INPUT INPUT www.vocopro.com VCD+CDG... -
Page 20: Playback Operations
Basic and advanced operations Preparing a Disc for Playback Turn the power on by pressing the POWER button on the front panel. Press the OPEN/CLOSE button to open the disc tray. Insert a disc into the round recess in the tray with the label side up. Playing a Disc Press the PLAY/PAUSE button on the front panel or the remote control to begin disc playback. -
Page 21: Am/Fm Tuner Operations
AM/FM tuner operations See the AM/FM Tuner Controls and Functions section of this manual for locating the buttons. Turning on the Radio Make sure that the GIG MAN PLUS’ power is on. Press the INPUT selector button until the TUNER light is on. This will turn the radio on. - Page 22 AM/FM tuner operations cont To preset a station higher than 10 While on the desired station, first press the +10 button and then press and hold down the desired number button. For Example: To set 101.1 as preset 15, set the radio to 101.1, press the +10 button and then press and hold the 5 button for three seconds.
-
Page 23: Mp3 Functions And Operations
Mp3 functions and operations The GIG MAN PLUS can play back MP3’s files recorded to CD-ROM, CD-R or CD-RW discs. Notes on MP3 Discs An MP3 file stores audio data that has been compressed using the MPEG1 encoding scheme. Although PC terminology uses “files”... -
Page 24: Mp3 Glossary
Mp3 functions and operations cont MP3 Glossary File Extension - A 3-character string added to a file name under the Windows or DOS environment is called a “file extension”. A file extension is used mainly to identify types of files. The file extension for MP3 files is “.mp3”. ISO 9660 - ISO stands for the “International Organization for Standardization”. -
Page 25: Karaoke Functions And Operations
Karaoke functions and operations Notes on Karaoke Media There are various types of Karaoke media available for playback with the GIG MAN PLUS. You can perform Karaoke with MP3, CDG and VCD formats. The thing to remember is how each type differs as far as audio channels and video sup- port. -
Page 26: Viewing A Vcd
Viewing CD’s Viewing VCD’s There are two types of VCD’s: VCD 1/1.1 Format This format of VCD has no menu, track search and other video features available, as this format does not support PBC. The same as with audio CD’s, these discs will auto-play with full motion-picture audio and video, but with no support for menus and custom track selection VCD 2.0 Format 2.0 formatted VCD’s are equipped with PBC support. -
Page 27: Viewing A Photo-Cd
Viewing CD’s cont Slow Playback To enter SLOW MODE during playback: 1. Press SLOW. Each time SLOW is pressed, the play speed changes NOTE: There is no audio during SLOW playback. To return to normal playback: Press PLAY Viewing a Photo-CD To LOAD a PHOTO-CD: 1. -
Page 28: Troubleshooting
Troubleshooting No audio output. Unable to connect the GIG MAN PLUS to my television monitor with the RCA cable provided. There is a loud "squealing" noise coming from the speakers. An MP3 or Photo-CD does not play in the GIG MAN PLUS. The input selector is not set to the channel that the active source player is connected The speaker selector is not set correctly. - Page 29 SINGER'S ULTIMATE CHOICE Vocopro 2005 V 1.0 WWW.VOCOPRO.COM...
