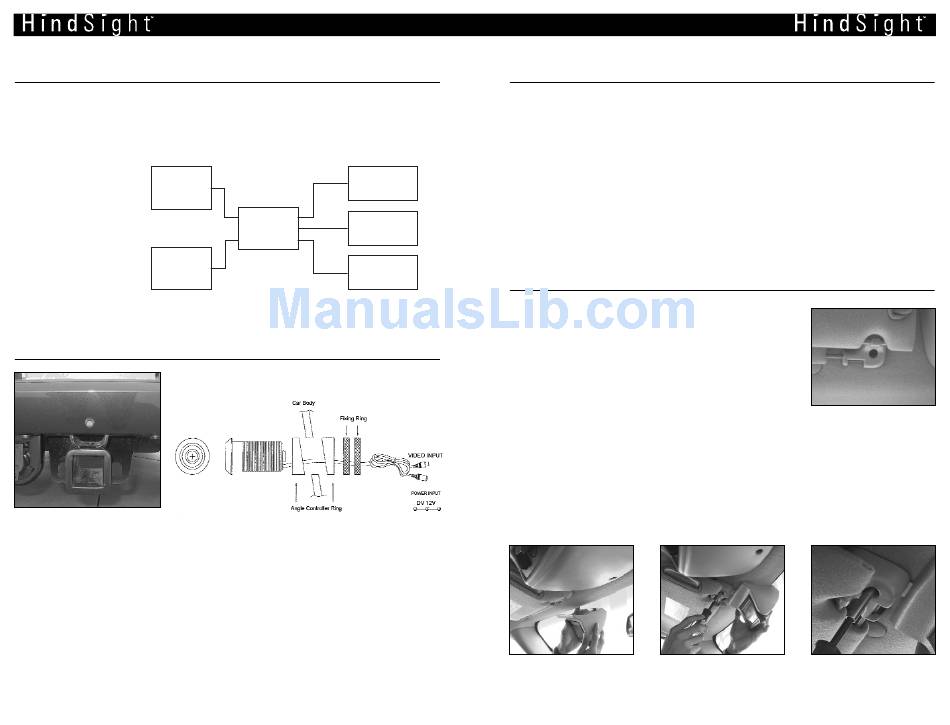

Package Contents & System Diagram
• 3.5˝ LCD Monitor w/Mirror Mode Display
• Color CCD Bullet-Type Camera w/Cable
• Angled Controller Rings (3 sizes)
• Fixing Rings
• A/V Control Module
LCD
• Monitor Cable
Monitor
CCD
Camera
Camera Installation
Fig. 1
1. Locate a suitable camera mounting location on the Car Body
(i.e. rear bumper cover).
2. Drill a 1-
1
⁄
˝ diameter hole at that location.
8
3. Attach an Angle Controller Ring to the Camera Body.
4. Insert the Camera Body through the Car Body and attach the
matching Angle Controller Ring to the Camera Body.
5. Secure the Fixing Rings to the threaded portion of the Camera Body.
6. Route the cable to the A/V Control Module location
(i.e. center console).
+12V
Battery
A/V Control
Ground
Module
+12V
Reverse light
Control Box Installation
1. Locate suitable A/V Control Module mounting location
(i.e. center console).
2. Attach the A/V Control Module wires as follows:
Wire Color
1. Red
2. Orange
3. Black
3. Secure the A/V Control Module using the provided screws.
Monitor Installation
1. Locate the driver's side or passenger side
visor-clip mount. (Fig. 2)
2. Route the Monitor Cable from the headliner to
the A/V Control Module via the A-pillar.
3. Insert the Monitor Cable into the opening on
the back-side of the Monitor Housing.
4. Connect the Monitor Cable to the LCD Monitor.
5. Screw the LCD Monitor onto the Monitor
Housing using the (2) provided screws.
6. Loosen the visor-clip mount screw.
7. Secure the (2) Monitor Housing rear-hooks to the headliner. (Fig. 3)
8. Secure the (1) Monitor Housing front-hook to the visor-clip mount.
(Fig. 4 & 5)
Fig. 3
Connection
+12V Battery
+12V Reverse Light
Ground
Fig. 2
Fig. 4
Fig. 5
