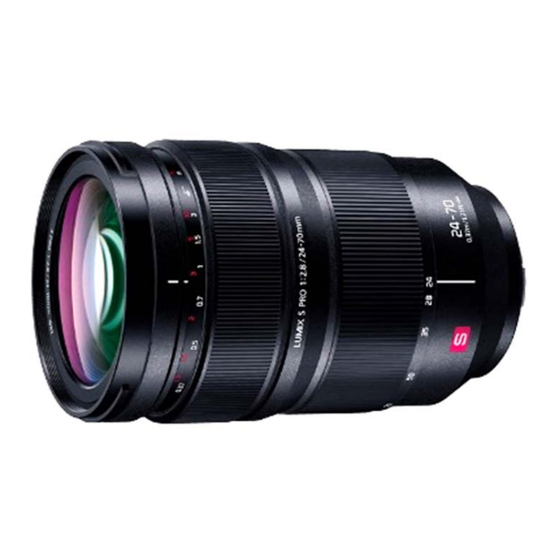

Panasonic LUMIX S-E2470 Service Training Manual

Service Training Manual
Specifications
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
"LUMIX S PRO 24-70 mm F2.8"
Mount
Focal length
Lens construction
Aperture type
Maximum aperture
Minimum aperture value
Angle of view
Recording range
Maximum image magnification
Image stabiliser
Filter diameter
Maximum diameter
Overall length
Mass (Weight)
Dust and splash resistant
Recommended operating
temperature
Permissible relative humidity
S-E2470
Component Repair
Leica Camera AG L-Mount
f=24 mm to 70 mm
18 elements in 16 groups
(3 aspherical lenses, 4 ED lenses, 1 UHR lens)
11 diaphragm blades/circular aperture diaphragm
F2.8
F22
84°(Wide) to 34°(Tele)
0.37 m (1.21 feet) to ∞ (from the focus distance reference line)
0.25×
No
82 mm
Φ90.9 mm (3.6 inch)
Approx. 140 mm (5.5 inch)
(from the tip of the lens to the base side of the lens mount)
Approx. 935 ｇ (2.06 lb)
Yes
－10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
10%RH to 80%RH
