ENGLISH

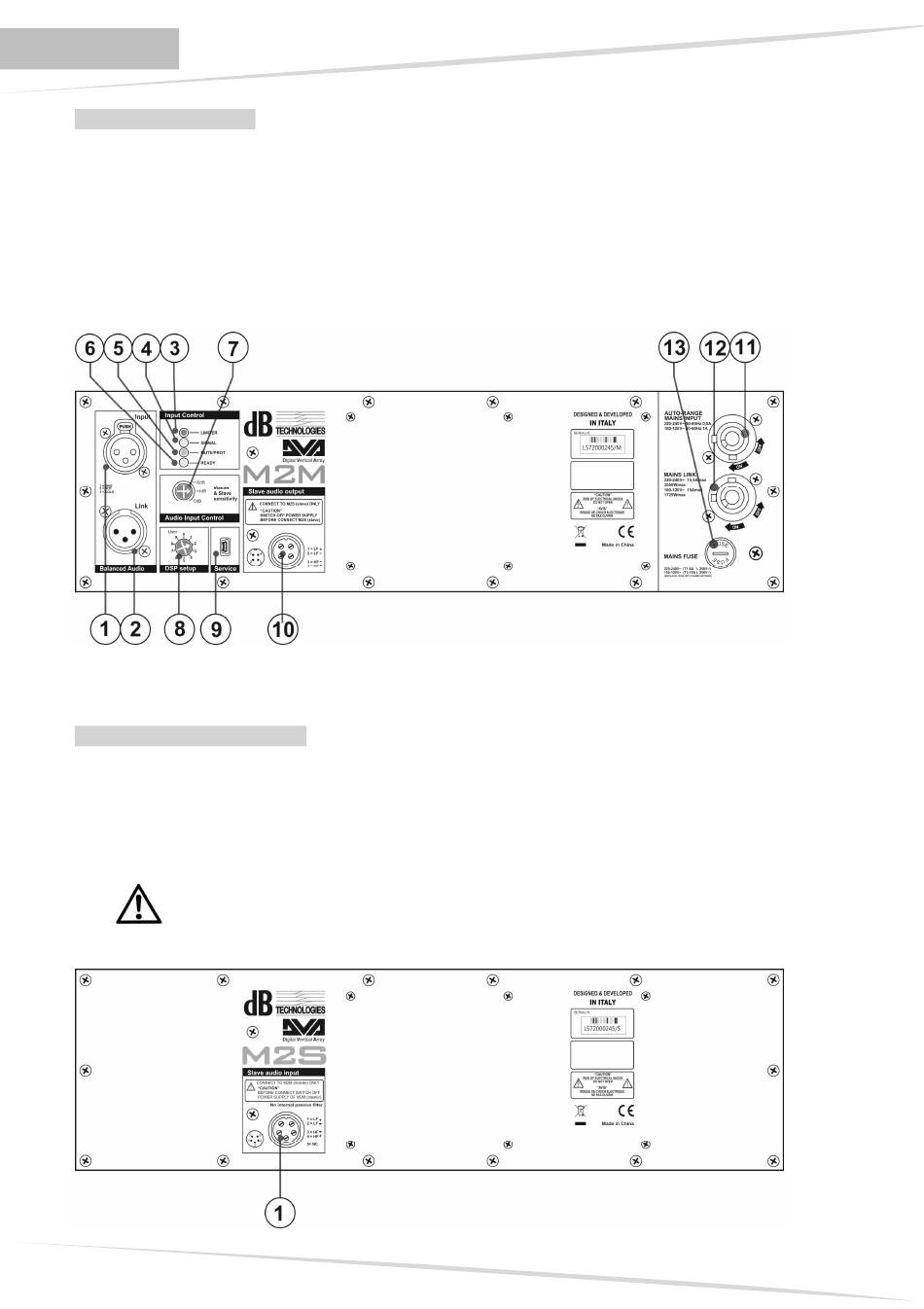

Power supply section
12) "AUTO-RANGE" MAINS INPUT" POWER SOCKET
For connecting the power cable.
The connector used for mains connection is a POWER CON® (blue)
13) "MAINS OUTPUT LINK" RELAUNCH POWER SOCKET
For re-launching the mains power. The output is connected in parallel with input (11) and can
be used to power another amplified speaker.
The connector uses a POWER CON® (grey)
14) "MAINS FUSE" FUSE CARRIER
Mains fuse housing.
DVA M2S – Functions and controls
"Slave Audio Input" section
1) Amplified input for the speaker DVA M2S (5-pole connector)
The connection between the speakers DVA M2M and DVA M2S is realized by means of the
supplied cable.
The speaker DVA M2S is not equipped with crossover and internal filters for acoustic
components, as the output of the DVA M2M provides for filters and electronic crossovers
dedicated to the DVA M2S.
Attention
Connect to the DVA M2S only and exclusively the dedicated output of the speaker
DVA M2M using the specific cable.
Turn off the speaker DVA M2M before connecting the speaker DVA M2S
9
DVA MINI Digital Array System
