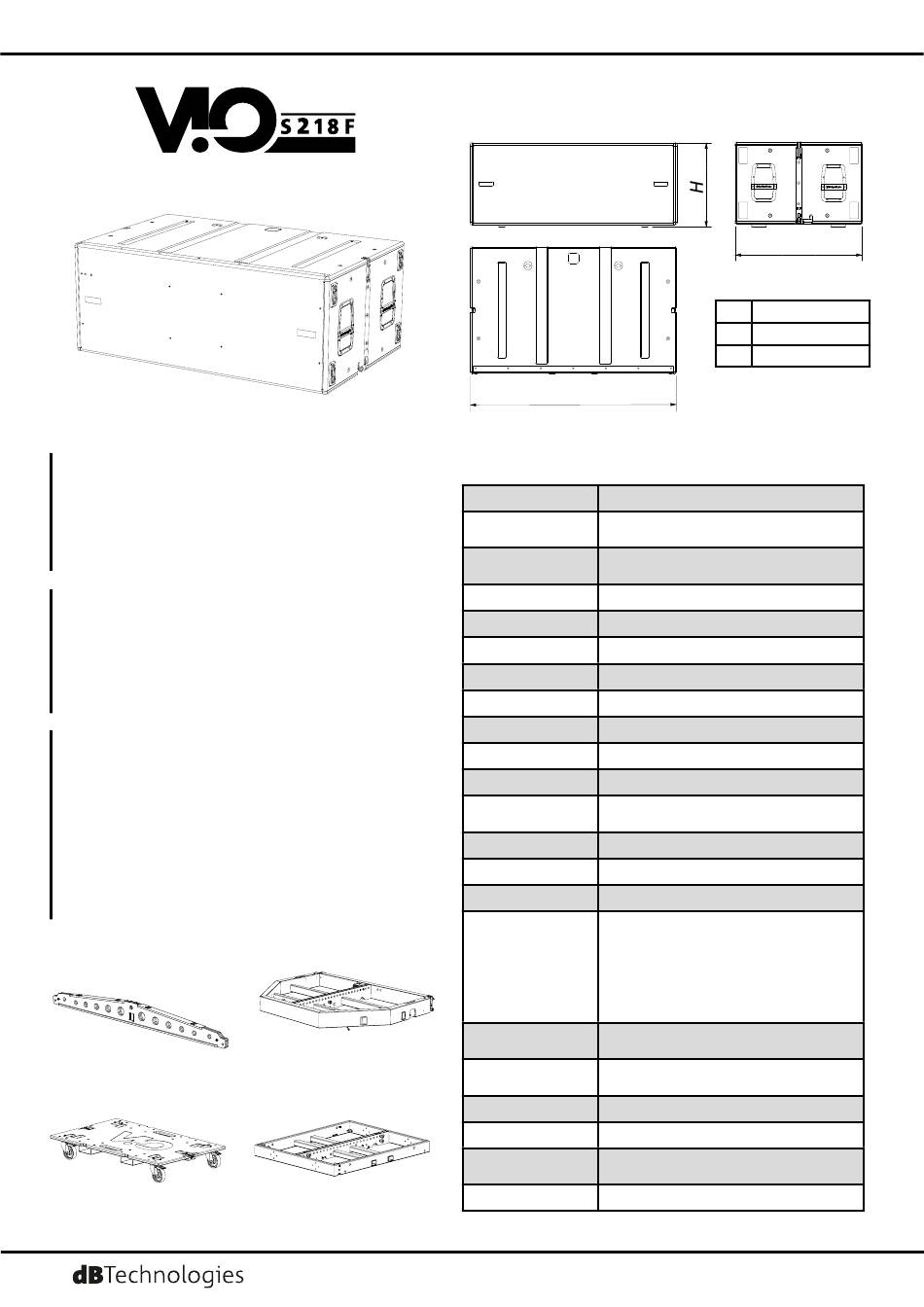

VIO S218F
MAIN FEATURES
• Impressive sound pressure
• Powerful amplifier
• Quick installation
• Flyable use
• AURORA Net control
PACKAGE CONTENTS
The box contains:
N°1 VIO S218F subwoofer
N°1 mains cable
N°2 fuses for 100-120Vac power supply
N°2 snap pins
This quick start and warranty documentation
DESCRIPTION
VIO S218F is a flyable active bassreflex-horn subwoofer,
designed for professional use, equipped with two 18"
neodymium woofer (voice coil: 4"). The powerful DSP
controlled double DIGIPRO® G4 amplifier section can
handle up to 3200 W (RMS power). The RDnet connections
allow in-depth remote control, thanks also to free available
software (AURORA NET, dBTechnologies Composer).
The custom flybar ensure easy set-up to create different
configurations, completing live installations with VIO line-
array series.
ACCESSORIES
DRK-218F
Flybar for flyable use
DO-VIOS218F
dolly for transport
QUICK START USER MANUAL SECTION 1
DRK-212
flybar for stacked use
with VIO-L212 speakser
DRK-210
flybar for stacked use
with VIO-L210 speakers
DIMENSIONS
W
TECHNICAL SPECIFICATIONS
Speaker Type
Active bass-reflex subwoofer
Frequency Response
28 Hz - Cut frequency (crossover dependent)
[-6dB]
Usable Bandwith
27 Hz - Cut frequency (crossover dependent)
[-10dB]
Max SPL (1 m)
143 dB
LF
2x 18", 4" v.c. neo
Crossover Frequency
60 to 110 Hz + full-range
Amplifier
Digipro® G4 3200 (2x1600) W RMS Class-D
Power Supply
Full-range SMPS
Cooling
Passive (convection) and internal fan
Operating Range
100-240V~ (50-60Hz)
Limiter
Peak, RMS, Thermal
Operation limit
-20°C / +55°C (-4°F / 131°F)
temperature
Controller
32 bit DSP
AD/DA Converter
24 bit/96 kHz
Preset
Cardioid
1x Delay control rotary
1x Link/Xover button
1x Cardioid preset button
Controls
1x System test button
1x Polarity button
1x Subwoofer attenuation rotary
1x Xover rotary
1 x XLR balanced, 1 x RJ45 (RDNet),
Signal Input
1x USB (Data Service)
1x XLR balanced Link, 1x XLR HPF Xover out,
Signal Output
1 x RJ45 Link (RDNet)
Housing
Wooden box - black finished
Rigging Points
2
1300x520x800 mm
Dimensions (WxHxD)
(51.18x20.47x31.50 in)
Weight
100 Kg (220 lbs.)
1
info@dbtechnologies-aeb.com
420120416Q REV1.0
D
W
1300mm (51.18 in)
H
520mm (20.47 in)
D
800mm (31.5 in)
