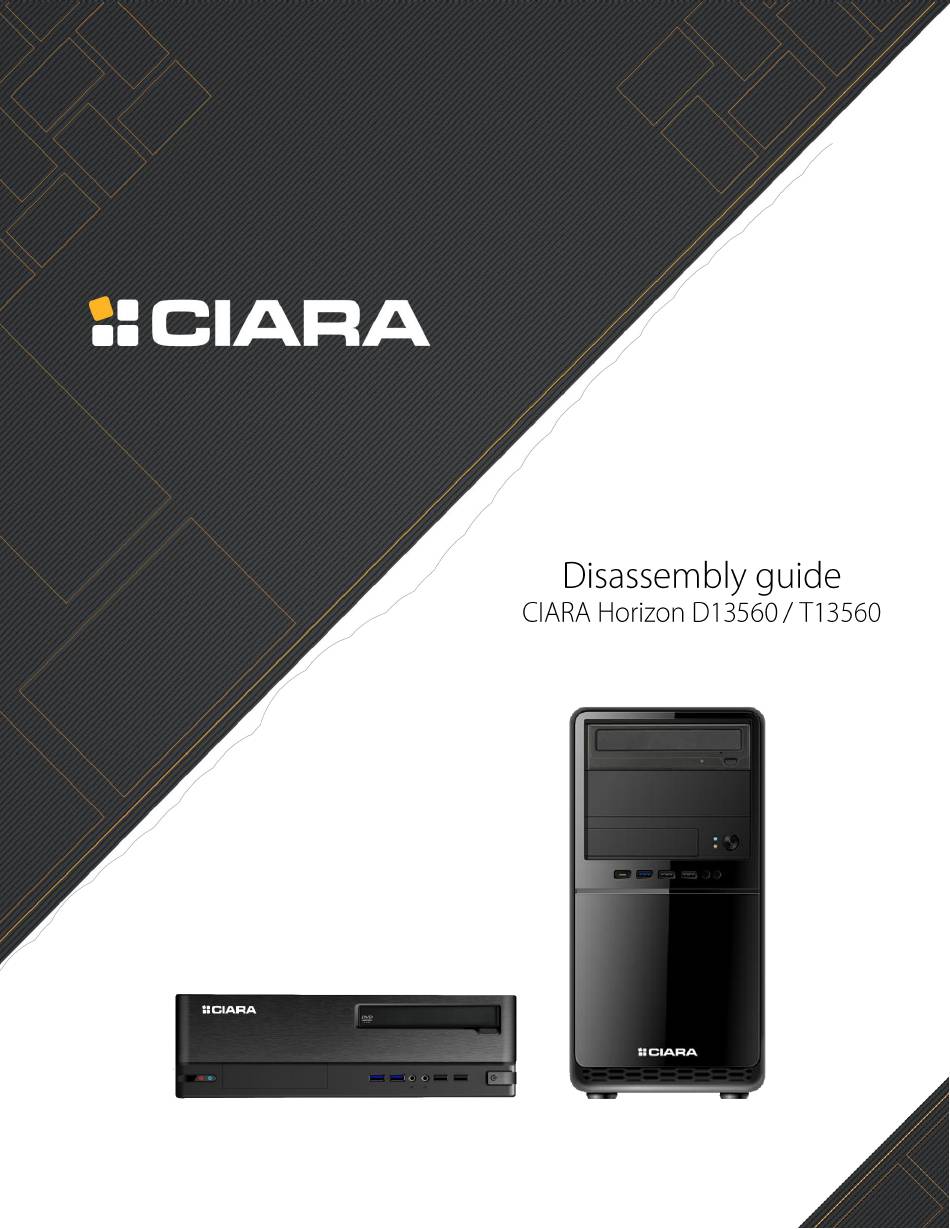

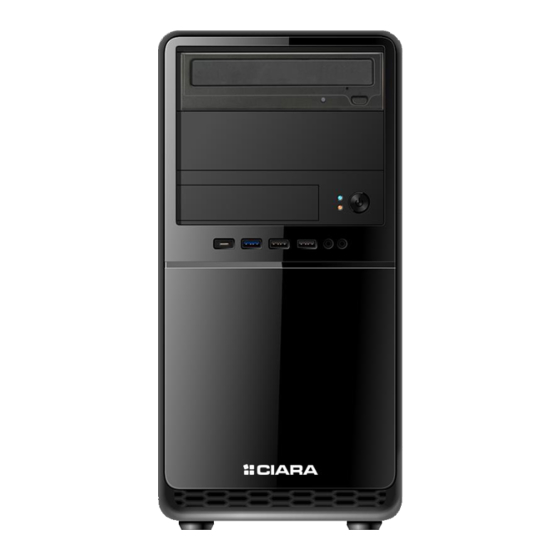

  • Page 4 CIARA Horizon D13560 / T13560 disassembly guide Just about every part of the CIARA Horizon D13560 / T13560 is recyclable. This guide will show you how to disassemble the following various parts in order to bring them to a recycler: 1.
  • Page 5 Item description Quantity of components PC board that is greater than 10 cm included in the product (Quantity) Casing and FPIO Yes (1) Casing fan Power supply Yes (1) Motherboard Yes (1) Motherboard battery Hard disk drive or SSD Yes (1) Optical drive Yes (1) Memory...

  • Page 6: Casing And Fpio

    1. Casing and FPIO 1.1 Horizon D13560 casing and FPIO Recyclable, ROHS compliant, ABS bezel and SGCC metal sheet. To remove the FPIO, unscrew theses 2 screws, then unplug all cables. 1.2 Horizon T13560 casing and FPIO Recyclable, ROHS compliant, ABS bezel and SGCC metal sheet.

  • Page 7: Casing Fan

    2. Casing fan 2.1 Horizon D13560 casing fan To remove the casing fan, remove the bezel, then unscrew these 4 screws. 2.2 Horizon T13560 casing fan To remove the casing fan, unscrew these 4 screws.

  • Page 8: Power Supply

    3. Power supply 3.1 Horizon D13560 power supply To remove the power supply, unscrew theses 3 screws, then unplug all cables. 3.2 Horizon T13560 power supply To remove the power supply, unscrew theses 4 screws, then unplug all cables.

  • Page 9: Motherboard

    4. Motherboard 4.1 Horizon D13560 motherboard To remove the motherboard, unscrew theses 8 screws. 4.2 Horizon T13560 motherboard To remove the motherboard, unscrew theses 8 screws.

  • Page 10: Motherboard Battery

    5. Motherboard battery The motherboard battery requires selective treatment per EU WEEE Directive Annex VII.

  • Page 11: Hard Disk Drive Or Ssd

    6. Hard disk drive or SSD 6.1 Horizon D13560 hard disk drive or SSD To remove the 3.5” HDD, press the latch and pull out the drive. To remove the 2.5” HDD or SSD, press the latch and pull out the drive.

  • Page 12: Horizon T13560 Hard Disk Drive Or Ssd

    6.2 Horizon T13560 hard disk drive or SSD To remove the 3.5” HDD, lift the tab and pull out the drive. To remove the 2.5” HDD or SSD, unscrew the retaining screw and remove the drive. To remove the M.2 SSD, unscrew the retaining screw, lift the drive and pull it out of the slot.

  • Page 13: Optical Drive

    7. Optical drive 7.1 Horizon D13560 optical drive To remove the optical drive, push the locking latch and pull the drive out. 7.2 Horizon T13560 optical drive To remove the optical drive, lift the locking tab and pull the drive out.

  • Page 14: Memory

    8. Memory 8.1 Horizon D13560 memory To remove a memory module, flip the latch and remove the module. 8.2 Horizon T13560 memory To remove a memory module, flip the latch and remove the module.

  • Page 15: Processor

    9. Processor 9.1 Horizon D13560 processor To remove the processor, turn the 4 latches counterclockwise, remove the heatsink, open the lever, lift the cover and remove the processor. 9.2 Horizon T13560 processor To remove the processor, turn the 4 latches...

  • Page 16: Discrete Video Controller

    10. Discrete video controller 10.1 Horizon D13560 discrete video controller To remove the video controller, tilt the cover of the PCI doors. it de dévisser ces 2 vis, puis de débrancher tous les câbles. You will then be able to pull out the controller.

  • Page 17: Power Cord

    11. Power cord The power cord is also recyclable but must be disposed of separately in accordance with the EU WEEE Directive Annex VII.

  • Page 18: Exploded View

    12. Exploded view 12.1 Horizon D13560 Exploded view Cover Intrusion switch M.2 Wi-Fi module Optical drive Heathsink 10 Casing Processor 11 Power supply Motherboard 12 Front panel M.2 NVMe SSD drive 13 Fan Memory...

  • Page 19: Horizon T13560 Exploded View

    12.2 Horizon T13560 Exploded view 1 Left side panel Heatsink 2 Intrusion switch Processor 3 Power supply 10 Motherboard 4 Casing fan 11 Casing 5 Memory 12 Front panel 6 M.2 Wi-Fi module 13 Optical drive 7 M.2 NVMe SSD drive 14 Right side panel...
