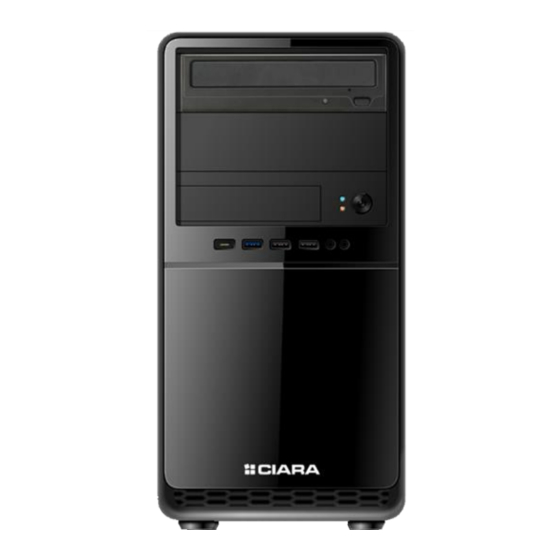

Summary of Contents for Ciara Horizon D11170

  • Page 2: Table Of Contents

    4.2 Horizon T11170 motherboard ........................ 8 5. Motherboard battery ........................8 6. Hard disk drive or SSD ........................10 6.1 Horizon D11170 hard disk drive or SSD ....................10 6.2 Horizon T11170 hard disk drive or SSD ....................11 7. Optical drive ..........................12 7.1 Horizon D11170 optical drive .......................

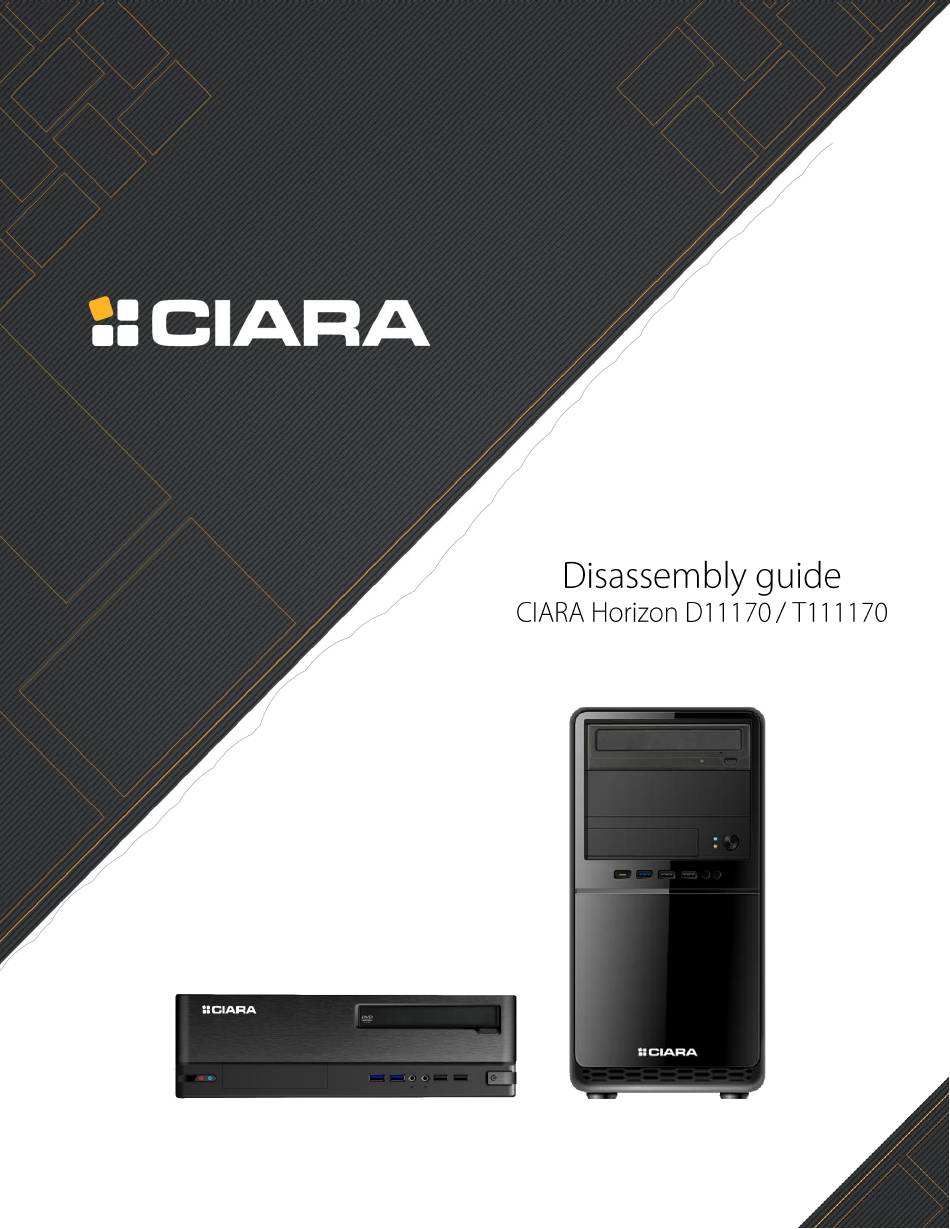

  • Page 3 CIARA Horizon D11170 / T11170 disassembly guide Just about every part of the CIARA Horizon D11170 / T11170 is recyclable. This guide will show you how to disassemble the following various parts in order to bring them to a recycler: 1.
  • Page 4 Item description Quantity of components PC board that is greater than 10 cm included in the product (Quantity) Casing and FPIO Yes (1) Casing fan Power supply Yes (1) Motherboard Yes (1) Motherboard battery Hard disk drive or SSD Yes (1) Optical drive Yes (1) Memory...

  • Page 5: Casing And Fpio

    1. Casing and FPIO 1.1 Horizon D11170 casing and FPIO Recyclable, ROHS compliant, ABS bezel and SGCC metal sheet. To remove the FPIO, unscrew theses 2 screws, then unplug all cables. 1.2 Horizon T11170 casing and FPIO Recyclable, ROHS compliant, ABS bezel and SGCC metal sheet.

  • Page 6: Casing Fan

    2. Casing fan 2.1 Horizon D11170 casing fan To remove the casing fan, remove the bezel, then unscrew these 4 screws. Horizon T11170 casing fan To remove the casing fan, unscrew these 4 screws.

  • Page 7: Power Supply

    3. Power supply 3.1 Horizon D11170 power supply To remove the power supply, unscrew theses 3 screws, then unplug all cables. 3.2 Horizon T11170 power supply To remove the power supply, unscrew theses 4 screws, then unplug all cables.

  • Page 8: Motherboard

    4. Motherboard 4.1 Horizon D11170 motherboard To remove the motherboard, unscrew theses 8 screws. 4.2 Horizon T11170 motherboard To remove the motherboard, unscrew theses 8 screws.

  • Page 9: Motherboard Battery

    5. Motherboard battery The motherboard battery requires selective treatment per EU WEEE Directive Annex VII.

  • Page 10: Hard Disk Drive Or Ssd

    6. Hard disk drive or SSD 6.1 Horizon D11170 hard disk drive or SSD To remove the 3.5” HDD, press the latch and pull out the drive. To remove the 2.5” HDD or SSD, press the latch and pull out the drive.

  • Page 11: Horizon T11170 Hard Disk Drive Or Ssd

    6.2 Horizon T11170 hard disk drive or SSD To remove the 3.5” HDD, lift the tab and pull out the drive. To remove the 2.5” HDD or SSD, unscrew the retaining screw and remove the drive. To remove the M.2 SSD, unscrew the retaining screw, lift the drive and pull it out of the slot.

  • Page 12: Optical Drive

    7. Optical drive 7.1 Horizon D11170 optical drive To remove the optical drive, push the locking latch and pull the drive out. 7.2 Horizon T11170 optical drive To remove the optical drive, lift the locking tab and pull the drive out.

  • Page 13: Memory

    8. Memory 8.1 Horizon D11170 memory To remove a memory module, flip the latch and remove the module. 8.2 Horizon T11170 memory To remove a memory module, flip the latch and remove the module.

  • Page 14: Processor

    9. Processor 9.1 Horizon D11170 processor To remove the processor, turn the 4 latches counterclockwise, remove the heatsink, open the lever, lift the cover and remove the processor. 9.2 Horizon T11170 processor To remove the processor, turn the 4 latches...

  • Page 15: Discrete Video Controller

    10. Discrete video controller 10.1 Horizon D11170 discrete video controller To remove the video controller, tilt the cover of the PCI doors. it de dévisser ces 2 vis, puis de débrancher tous les câbles. You will then be able to pull out the controller.

  • Page 16: Power Cord

    11. Power cord The power cord is also recyclable but must be disposed of separately in accordance with the EU WEEE Directive Annex VII.
