Page 1

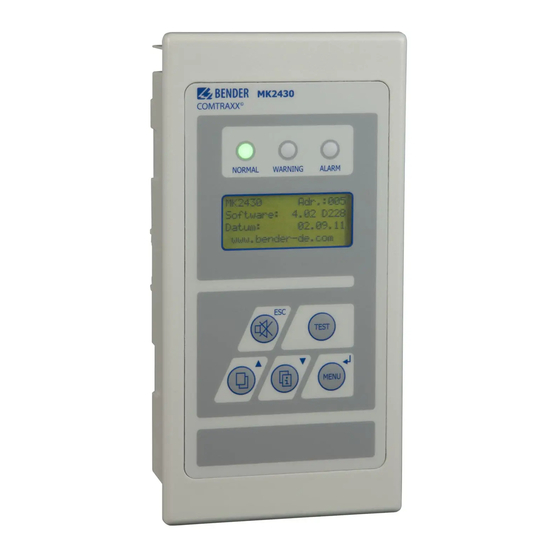

Kurzanleitung DE Quick-start guide EN COMTRAXX® MK2430 Melde- und Prüfkombination Alarm indicator and test combination MK2430_D00129_01_Q_DEEN/01.2024...
Page 2
Signalisierung von ing status and alarm messages from Bender‘s EDS, Betriebs- und Alarmmeldungen aus den Bender Syste- RCMS, ATICS® and MEDICS® systems. In MEDICS® moni- men EDS, RCMS, ATICS®...
COMTRAXX® MK2430 Abmessungen Dimensions 100.5 OBEN 185.5 Maßangaben in mm Dimensions in mm Montage Installation Unterputzmontage Flush-mounting Das Unterputzgehäuse ist im Lieferumfang der MK2430 The flush-mounting enclosure is within the scope of bereits enthalten. delivery of the MK2430. 1. Setzen Sie die mitgelieferte Pappe in das Unterputz- 1.
Terminating resistor BMS bus (R = 120Ω), can be connected via DIP Schalter zuschaltbar switch on the MK2430. Anschluss BMS-Bus (Bender-Messgeräte-Schnittstelle) zur Kommunika- BMS bus connection (Bender Measuring Device Interface) for communi- tion mit anderen Bender-Geräten cation with other Bender devices Netzteil im MEDICS®-Modul, ausreichend für die Versorgung von max.
Page 5
COMTRAXX® MK2430 Anschlussbelegung MK2430-12 Connection assignment MK2430-12 MK2430-12 enthält nur eine Klemmleiste, da sie alle The MK2430-12 features only one terminal strip as it Meldungen über BMS-Bus erhält. receives all messages via the BMS bus. Versorgungsspannung U Supply voltage U U2, V2 USB-Anschluss.
Gewicht ..................... ≤ 210 g Weight ....................≤ 210 g EU-Konformitätserklärung EU Declaration of Conformity Der vollständige Text der EU-Konformitätserklärung ist The full text of the EU Declaration of Conformity is unter der folgenden Internetadresse verfügbar: available at the following Internet address: https://www.bender.de/fileadmin/content/Products/CE/CEKO_MK2430.pdf MK2430_D00129_01_Q_DEEN/01.2024...
