Summary of Contents for Trek Procaliber 6

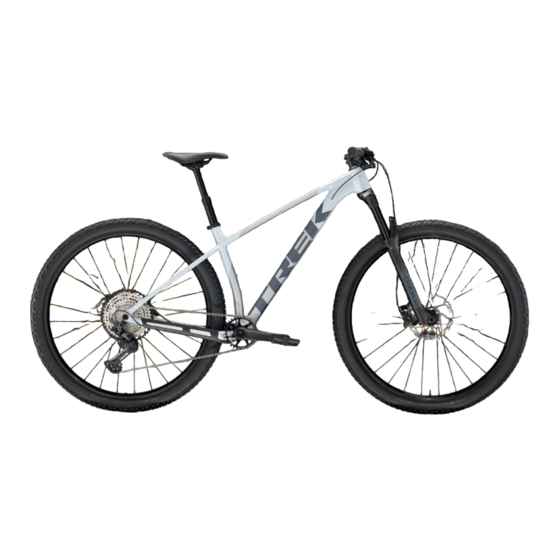

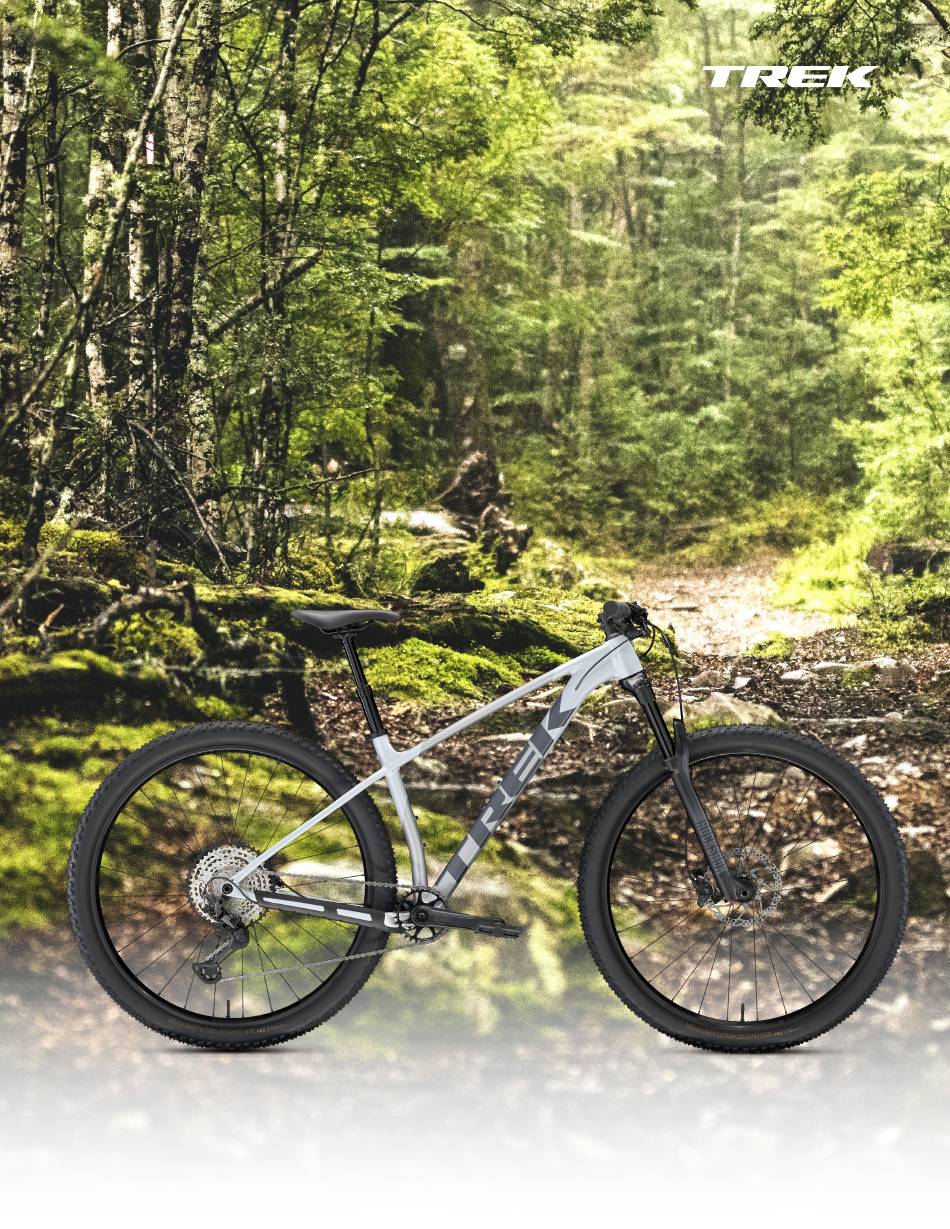

- Page 1 2024 Procaliber Alloy SERVICE MANUAL...
-
Page 2: Additional Resources
Notice: Measurements of actual tires may vary. Always verify there is sufficient clearance between the tire and the frame. Improper tire size could damage the bicycle frame. Trek recommends 6mm clearance above and on both sides of the tire. Minimum insertion: Refer to manufacturer... - Page 3 2024 Procaliber Alloy Rear axle and UDH Switch lever — W573860 Thru-axle, 12x174mm — W600321 Dérailleur hanger NOTICE: Do not apply grease. Washer, 25 mm NOTICE: The washer is frame-specific. Install only the washer size specified. — W5271425 Bolt, M12 NOTICE: Do not apply grease.
- Page 4 2024 Procaliber Alloy Brake and shift routing Rear brake hose Thread the rear brake hose through the foam sleeve. Route the hose and foam sleeve up the downtube. Shift housing Housing exits the downtube. Slide the foam sleeve over the housing. Route the housing and foam sleeve up the downtube.
- Page 5 2024 Procaliber Alloy Seat post dropper routing Bottom bracket must be removed to route the dropper housing. Insert housing into the downtube. Route housing out the bottom of the downtube. Slide the foam sleeve over the housing. Route the foam sleeve and housing up the downtube. Route the other end of the housing up the seat tube.
-
Page 6: Frame Guards
2024 Procaliber Alloy Frame guards Chainstay guard — W5293689 Downtube guard: SM/MD/ML frames — W5308424 LG/XL frames — W5308425 Use isopropyl alcohol to clean the frame surface where the guard is attached. Wait for the alcohol to dry before apply- ing the guard. -
Page 7: Specifications
Notice: Measurements of actual tyres may vary. Always verify that there is sufficient clearance between the tyre and the frame. Improper tyre size could damage the bicycle frame. Trek recommends 6mm clearance above and on both sides of the tyre. Bottom bracket...
