10M Digital Pet Pir Detector; Technical Specification - Pyronix KX10DP Quick Start Manual

KX10DP

10m Digital Pet PIR Detector

Security Grade 2
EN50131-2-2:2008
EN50131-1:2006+A1:2009
Environmental Class II
PD6662:2010
E N G L I S H

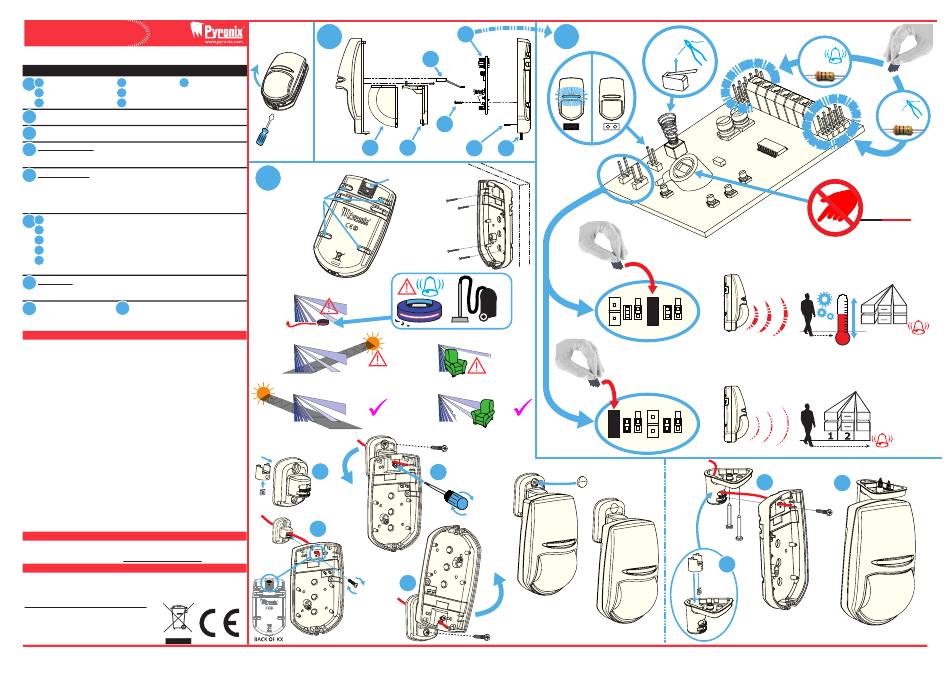

(Diagram references)
1 A Printed Circuit Board (PCB) D Lens holder G Casing screw
B LED light pipe / diffuser E PCB screw
C Lens F Captive nut
2
PCB configuration (Including PIR sensitivity)
3 3
Mounting Options
3 4 EOL Resistor Headers: The KX10DP has 2 sets of header pins (as shown). These
headers are used to select the End of Line resistance for EOL wiring applications.
NOTE: If EOL wiring is not used, leave the headers OFF.
3 5
Remote LED Enable: This is used when the LED is disabled via the LED ON/OFF
link. To enable this feature the LED terminal needs to be connected to an output
on the control panel. When the system is in walk test mode the output should
be at 0v. For Pyronix panels the output would usually be programmed as
'Remote LED enable'.
3 6 A N/C - Normally Closed Wiring
(EXAMPLE ONLY, SEE CONTROL PANEL INSTRUCTIONS)
B PCX DEOL Wiring
(EXAMPLE ONLY, SEE CONTROL PANEL INSTRUCTIONS)
C
EURO DEOL Wiring (EXAMPLE ONLY, SEE CONTROL PANEL INSTRUCTIONS)
D
Generic Control Panel (shows resistor locations)
E
2x Double End of Line Detectors to One Input (SEE CONTROL PANEL INSTRUCTIONS)
3 7
Powering Up: When the detector is first powered up, it will run through a self-test
routine (indicated by the flashing blue LED). Once the LED goes out the detector
is ready to use.
3 8 3 9
The 10m Pet Lens. Dimensions and Weight

Technical Specification

Model: KX10DP
Colour: White
LED Colour: Blue
Casing: 3mm ABS, 0.4mm HDPE in lens area
Detection Method: Digital Signal Processing
PIR Sensitivity: Auto (Default), Low
Max Pet Tolerance: 24Kg (55lbs)
Temperature Compensation: Digital
Detection Range: 10m
Detection Speed: 0.3 - 3.0 m/s
Operating Voltage: 9 - 16V DC 13.8V DC typical
Current Consumption: 13mA @ 12V (Min), 16mA @12V (Max)
Relay Output: 50mA 60V DC, 42 VAC (RMS)
Contact Resistance: < 10 ohms
Mounting Height: 1.8 - 2.4m (mount at 2.1m for INCERT)
Tamper Switch: 12V 50mA
o o
Storage Temperature: -40 C to 80 C
Certified Operating Temperature: -10 o C to 40 o C
Nominal Working Temperature: -30 o C to 70 o C
Accessories: Wall and Ceiling brackets
Emissions: EN55022 Class B
Immunity: EN50130-4
Warranty
This product is sold subject to our standard warranty conditions and is warranted
against defects in workmanship for a period of five years.
For further warranty information visit: www.pyronix.com/warranty
Product Warning Information
For electrical products sold within the European Community. At the end of the
electrical products life, it should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice in your country. The declaration of conformity may be consulted at
www.pyronix.com/product-compliance.php
This product is approved for use in the Residential,
Commercial and Light Industrial Environments.
 0845 6434 999 (UK). +44(0)1709 535 225
START
1
C
3
A
B
 customer.support@pyronix.com
 www.pyronix.com
2
A
B B
LED ON
f ) Back
E
Tamper
D
F G
C
D
Pyronix Limited, Pyronix House, Braithwell Way, Hellaby, Rotherham, S66 8QY, UK
PCB
TAMPER
LED OFF
DEFAULT
PREDEFINITO
= =
AUTO HI
LOW AUTO
=
AUTO HI
LOW AUTO
C3
B
A
ALARM
6K8, 5K6,
4K7, 2K2, 1K
TAMPER
5K6, 4K7, 2K2, 1K
PIR
AUTO
+
+
+ +
HIGH / LOW
LOW
® D The K
+ +
+ +
3
EOL
C
RINS1600-2
