Pyronix KX12DQ-WE Quick Start Manual

12m Digital Quad Wireless PIR
®
KX12DQ-WE Specifications
®

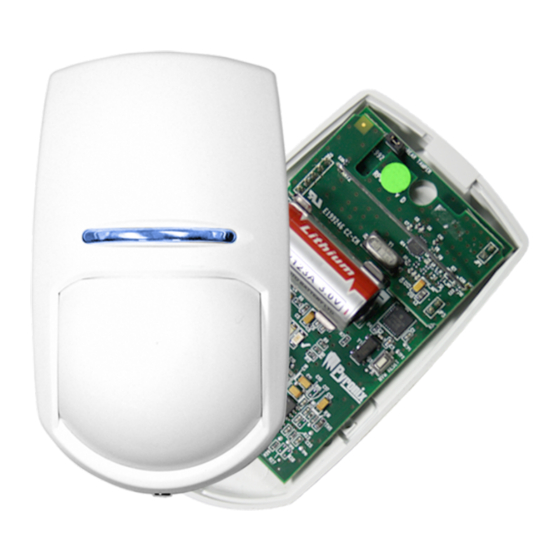

Model: KX12DQ-WE 12m Internal detector
Colour: WHITE
Casing: 3mmABS, 0.4mm HDPE in lens area
Transmission Frequency: 868MHz, FM Transceiver Narrow Band
Tranmission Method:
Fully Encrypted Rolling Code
Transmission Range: 300m Free Space
Detection Method: Low Noise Pyroelectric Sensor
Sensitivity: High, Low
Temperature Compensation: Advanced Automatic
Detection Range: 12m
Detection Zones: 30 beams positive, 30 beams negative
Detection Speed:
0.3 - 3.0 m/s
Detection Angle: 85
Battery: CR123A Lithium Battery
2.5V +/- 5% at 25 °C
Low Battery Threshold:
Battery Life: Greater than 2 years
Mounting Height: 1.8m to 2.4m
Certfied Mounting Height: 2.4m
(mount at this height only for the coverage shown below)
Tamper Switch: Front and RearTamper
Storage Temperature:
-20°C to 50°C
Certified Operating Temp:
-10°C to 40°C
Nominal Working Temp: -10°C to 50°C
Accessories: Wall and ceiling mounting brackets optional
Emissions / Immunity: EN55022 Class B / EN50130-4
Coverage Pattern
KX12DQ-WE
®
This product is approved for use in the Residential,
Commercial and Light Industrial Environment.
EN50131-2-2:2008
85°
2
EN50131-5-3:2005+A1:2008
30 zones
Security Grade 2
7 planes
Environmental Class II
RLNS074
Customer Support Line : +44(0)845 6434 999
or telephone +44(0)1709 535225
E-mail: customer.support@pyronix.com
website: www.pyronix.com
Pyronix Limited, Secure House, Braithwell Way,
Hellaby, Rotherham, S66 8QY. UK
WARRANTY
This product is sold subject to our standard warranty
conditions and is warranted against defects in
workmanship for a period of two years
excluded)
In the interest of continuing improvement of quality,
customer care and design, Pyronix Ltd reserves the
right to amend specifications, without giving prior
notice.
.
(batteries
RINS1426-3
