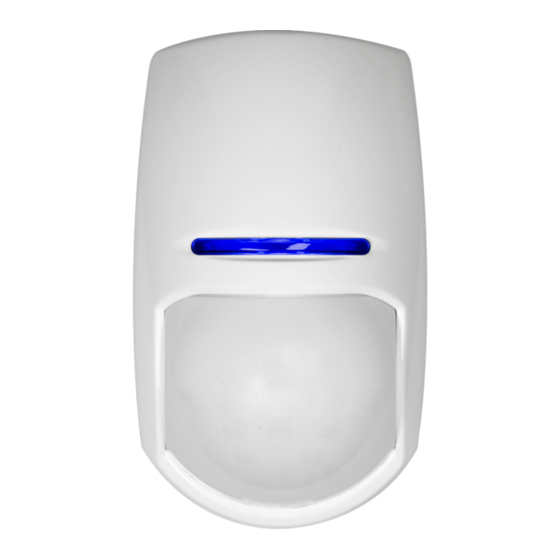

Pyronix KX15DC-WE Manual

15m Digital Curtain Wireless PIR
®

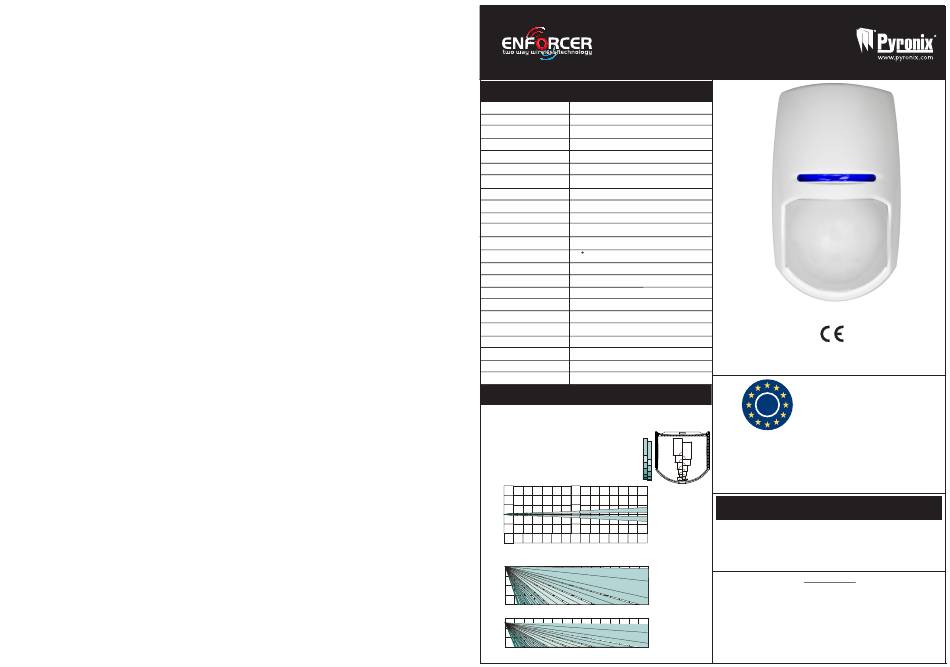

KX15DC-WE Specifications
®
Model: KX15DC-WE 15m Internal detector
Colour: WHITE
Casing: 3mmABS, 0.4mm HDPE in lens area
Transmission Frequency: 868MHz, FM Transceiver Narrow Band
Tranmission Method:
Fully Encrypted Rolling Code
Transmission Range: 300m Free Space
Detection Method: Low Noise Pyroelectric Sensor
Sensitivity: High, Low
Temperature Compensation: Advanced Automatic
Detection Range: 15m
Detection Zones: 24
Detection Speed:
0.3 - 3.0 m/s
Detection Angle: 20
Battery: CR123A Lithium Battery
2.5V +/- 5% at 25 °C
Low Battery Threshold:
Battery Life: Greater than 2 years
Mounting Height: 2.4m or 4m
Tamper Switch: Front and RearTamper
Storage Temperature:
-20°C to 50°C
Certified Operating Temp: -10°C to 40°C
Nominal Working Temp: -10°C to 50°C
Accessories: Wall and ceiling mounting brackets optional
Emissions / Immunity: EN55022 Class B / EN50130-4
Coverage Pattern
20
24 zone edges
6 planes
HORIZONTAL COVERAGE
1m
2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m 15m
VERTICAL COVERAGE
4m
15m
1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m
2.4m
1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m 15m
KX15DC-WE
®
This product is approved for use in the Residential,
Commercial and Light Industrial Environment.
EN50131-2-2:2008
2
EN50131-5-3:2005+A1:2008
O Security Grade 2
Environmental Class II
Suitable for use in systems installed
to conform to PD6662:2010
NOTE: Only the KX15DCHT-WE has
been certified by IMQ.
Customer Support Line : +44(0)845 6434 999
or telephone +44(0)1709 535225
E-mail: customer.support@pyronix.com
website: www.pyronix.com
Pyronix Limited, Secure House, Braithwell Way,
Hellaby, Rotherham, S66 8QY. UK
WARRANTY
This product is sold subject to our standard warranty
conditions and is warranted against defects in
workmanship for a period of two years
excluded)
In the interest of continuing improvement of quality,
customer care and design, Pyronix Ltd reserves the
right to amend specifications, without giving prior
notice.
.
(batteries
RIN1586-2
