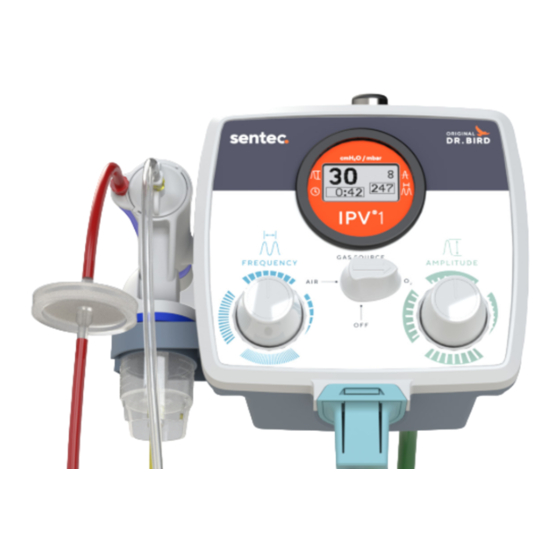

Sentec IPV 1 Quick Reference Manual

IPV
Before you start
Assembling Phasitron
Place a maximum of 20 ml of normal Place a maximum of 20 ml of normal
saline or prescribed medication in the saline or prescribed medication in the
nebulizer cup.
Connect yellow tubing quick-connect Connect yellow tubing quick-connect
fi tt ing to nebulizer cup.
Connect clear tubing quick-connect Connect clear tubing quick-connect
fi tt ing to the cap.
Press red tubing onto connector.
Connect blue corrugated tubing to Connect blue corrugated tubing to
exhalation port.
Connect the universal connector to Connect the universal connector to
the bott om of the IPV® 1 device, then the bott om of the IPV® 1 device, then
place the Phasitron in the holder. place the Phasitron in the holder.
Ensure Gas Source knob is in the OFF
position. Then, connect the IPV® to a
50 psi gas source.
1 Quick Reference Guide
®
Patient Connections
Mouthpiece
Instruct patient to keep
lips and cheeks splinted
to ensure the pulses are
directed into the lungs.
Mask
It is recommended
to use a resuscitation
mask or similar non-
vented mask.
Direct
The Phasitron can be
att ached directly to
an artifi cial airway or
airway adaptor.
NOTE: For patients under fi ve
years of age without an artifi cial
airway, mask confi guration is
recommended
