Timago YOLA TGR-R RA 883 Instructions For Use

INSTRUCTIONS FOR USE

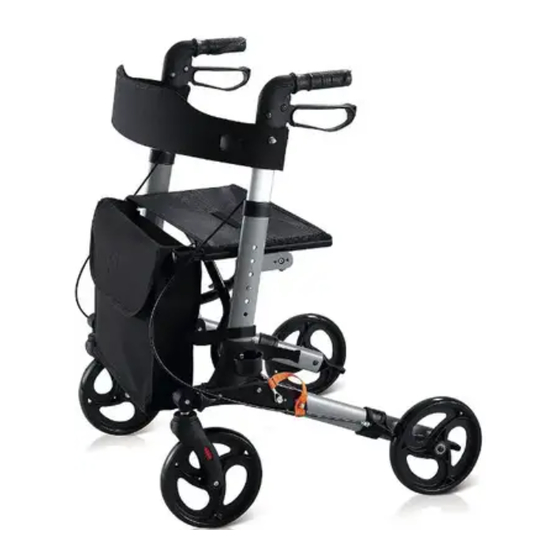

Aluminium 4-wheeled rollator YOLA
Product code: TGR-R RA 883

1. Characteristics

Folding 4-wheeled rollator is made of aluminium frame which is coated
with paint with metallic lustre. The rollator is equipped with brakes
with locking mechanism, seat with backrest and shopping bag. It is
supplied with wheels with narrow cross section 8'' in diameter and
height adjustable handles with anatomic handgrips. It can also be
folded into compact unit for transport. The axial pressure resistance
was significantly increased owing to the crossbar frame and oval cross
section of the tubes.
The set includes:
• Frame with seat and backrest
• Two push handles with brakes
• Shopping bag
• Bell
• Locking knobs – 4 pcs
• Front swivel wheels 8''
• Rear wheels 8''
Elements of the rollator:
a. push handle
b. brake
c. bell
d. backrest
e. shopping bag
f. brake cable
g. locking pin
h. locking knobs
