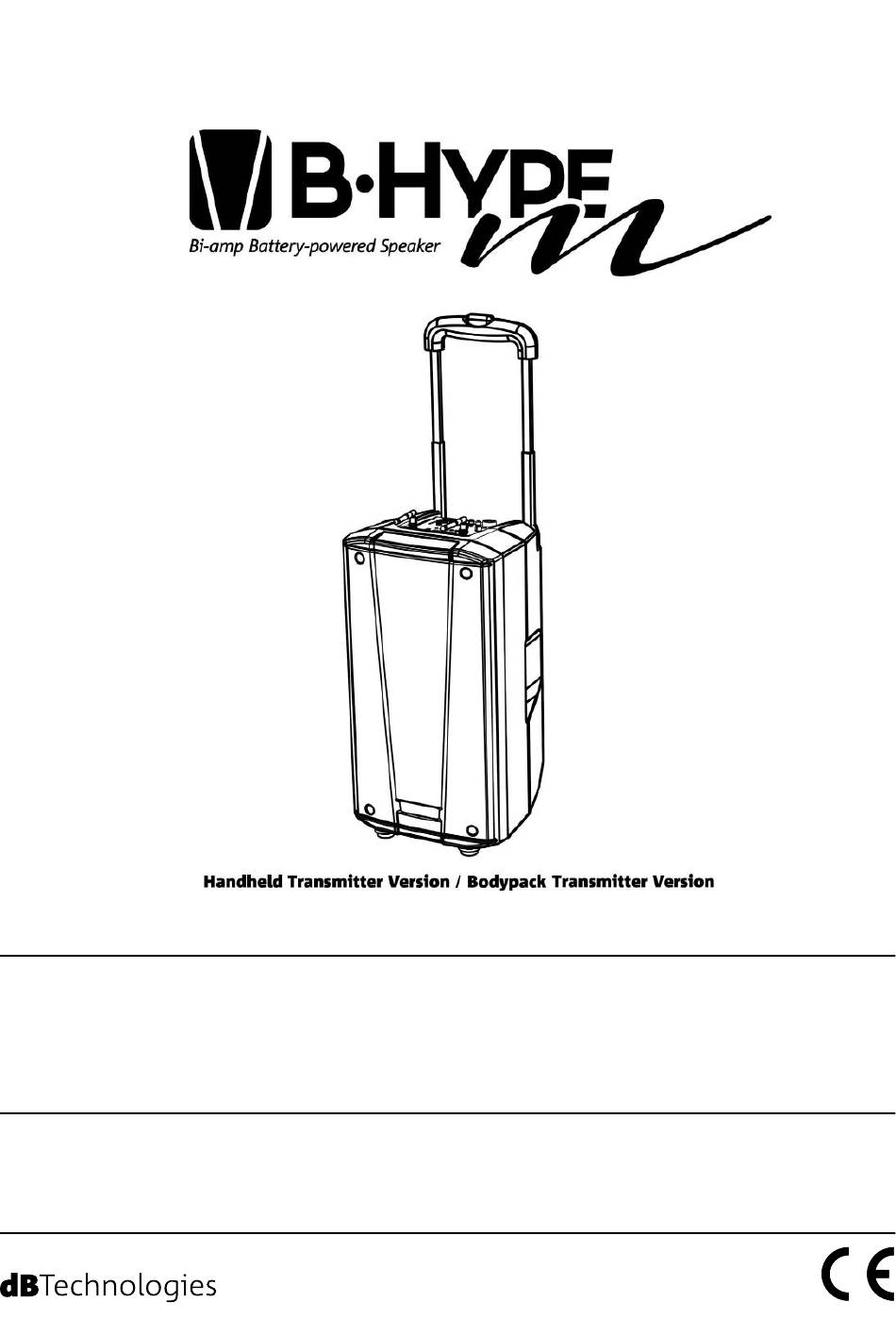

MANUALE D'USO – Sezione 1
USER MANUAL – Section 1
BEDIENUNGSANLEITUNG – Abschnitt 1
MANUEL D'UTILISATION – Section 1
MANUAL DE USO - Sección 1
Le avvertenze nel presente manuale devono essere osservate congiuntamente al "MANUALE D'USO - Sezione2".
The warnings contained in this manual as well as the information listed in "USER MANUAL - Section 2" must be complied with.
Die in diesem Handbuch enthaltenen Warnhinweise müssen gemeinsam mit den Angaben in der „BEDIENUNGSANLEITUNG - Abschnitt 2"
beachtet werden.
Les avertissements dans le présent manuel doivent être respectés conjointement au "MANUEL D'UTILISATION – Section 2".
Respetar las advertencias en el presente manual junto al "MANUAL DE USO - Sección 2".
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dB Technologies B-HYPE MOBILE
Summary of Contents for dB Technologies B-HYPE MOBILE
- Page 1 MANUALE D’USO – Sezione 1 USER MANUAL – Section 1 BEDIENUNGSANLEITUNG – Abschnitt 1 MANUEL D’UTILISATION – Section 1 MANUAL DE USO - Sección 1 Le avvertenze nel presente manuale devono essere osservate congiuntamente al “MANUALE D’USO - Sezione2”. The warnings contained in this manual as well as the information listed in “USER MANUAL - Section 2” must be complied with. Die in diesem Handbuch enthaltenen Warnhinweise müssen gemeinsam mit den Angaben in der „BEDIENUNGSANLEITUNG - Abschnitt 2”...
-
Page 2: Table Of Contents
ACOUSTICAL SPECIFICATIONS ......................... 37 INTERNAL BATTERY ..........................37 AMPLIFIER ..............................37 USER INTERFACE ............................38 INPUTS & OUTPUTS ..........................38 RF SECTION .............................. 38 POWER SUPPLY SPECIFICATIONS (ABSORPTION / INSTALLATION) ............38 DIMENSIONS ............................39 B-HYPE MOBILE Code 420120272 REV. 1.2... -
Page 3: General Information And Main Sections
SOLD ALSO SEPARATELY USER REFERENCE To make the most of your B-HYPE MOBILE, we recommend that you: • read the quick start user manual included in the package and this user manual thoroughly and keep this manual during the whole life of the product. -
Page 4: Mechanics
English MECHANICS B-HYPE MOBILE is equipped with: 1. side handles 2. housing for the HT-BHM radio microphone 3. wheels for handling 4. upper handle (with central release button) OVERVIEW OF THE EQUIPMENT On the upper side and at the back of the speaker there are: 5. -
Page 5: Power Supply Unit Section
For example, the Line Output of a the cable supplied) and in RECHARGE position. The B-HYPE MOBILE can be connected to the CH1 of a second one to obtain a distributed system. also during the operation in ON position. -
Page 6: Media Player Interface
• USB memory device • device correctly paired 1. Turn B-HYPE MOBILE on after connecting the power supply cable (switch in ON position). For further information, see paragraph “POWER SUPPLY UNIT SECTION”. 2. Insert the correct device in the relevant input use only one device at a time. - Page 7 English The diagram below shows a summary of the input/output possibilities of B-HYPE MOBILE. B-HYPE MOBILE Code 420120272 REV. 1.2...
-
Page 8: Antennae, Receiver And Transmitters
English 2. ANTENNAE, RECEIVER AND TRANSMITTERS The B-HYPE MOBILE system is equipped, depending on the purchased bundle, of a handheld radio microphone or bodypack. Based on the availability and on the Country of use, the system is sold in one of the following three frequency bands: •... -
Page 9: Ht-Bhm
HOUSING WITH BATTERY CHARGER FOR HT-BHM With B-HYPE MOBILE in ON or RECHARGE mode, if HT- BHM is correctly inserted in the housing on the back, an appropriate circuit will recharge the batteries (Ni-MH rechargeable batteries). -
Page 10: Bt-Bhm
If the radio microphone is not used for a long period, remove the batteries from the device and store them in a suitable place. To use BT-BHM with B-HYPE MOBILE see the synchronisation procedure in the relevant paragraph. B-HYPE MOBILE... -
Page 11: Synchronisation Of The Transmitter
English SYNCHRONISATION OF THE TRANSMITTER 1. Turn B-HYPE MOBILE on after connecting the power supply cable (switch in ON position). Check that the MASTER volume is on a medium/low level at this stage. 2. Open the battery compartments of the transmitters as shown in the previous sections. -
Page 12: Summary Table Of Channels And Frequencies
English SUMMARY TABLE OF CHANNELS AND FREQUENCIES B-HYPE MOBILE Code 420120272 REV. 1.2... -
Page 13: Change Of Frequency Band
(ESD) that could damage the product. The procedure requires to replace the receiver installed on B-HYPE MOBILE and then proceed with the synchronisation with a new radio microphone that works in the new selected band. To replace the R-BHM receiver: •... -
Page 14: Troubleshooting
4. If in “mobile” mode use, check that the battery is charged. If this is not the case, charge it by connecting B-HYPE MOBILE to the power mains and selecting “RECHARGE” mode. The loudspeaker turns on but does not play an audio track: 1. -
Page 15: Accessories/Spare Parts
HM-BHM TAN Beige headset * available in 3 frequency bands, according to the Country of sale: • 542-566 MHz • 638-662 MHz • 863-865 MHz Check new accessories/spare parts availability on the website www.dbtechnologies.com B-HYPE MOBILE Code 420120272 REV. 1.2... -
Page 16: Specifications
90° x 45° INTERNAL BATTERY Type: Li - Ion (25.9 V - 2200 mAh) Recharge time: approx. 4 hours Duration in medium conditions of up to 4 hours usage: AMPLIFIER Type: AMP SMPS Class D B-HYPE MOBILE Code 420120272 REV. 1.2... -
Page 17: User Interface
** NOTE FOR INSTALLER: Values refer to 1/3rd of power, under heavy operating conditions (music programme with frequent clipping and limiter activation). In case of professional installations and tours we recommend sizing according to these values. B-HYPE MOBILE Code 420120272 REV. 1.2... -
Page 18: Dimensions
A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA) Tel +39 051 969870 www.dbtechnologies.com info@dbtechnologies-aeb.com B-HYPE MOBILE Cód. 420120272 REV. 1.2 B-HYPE MOBILE Code 420120272 REV. 1.2...
