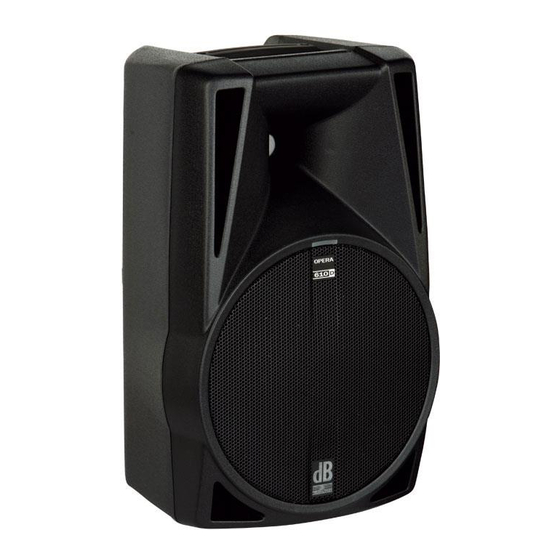

- Page 1 OPERA OPERA PROFESSIONAL ACTIVE SPEAKER OPERA OPERA digital power OPERA 610D MANUALE D’USO USER MANUAL BEDIENUNGSANLEITUNG CARACTERISTIQUES TECHNIQUES Made in Italy COD. 420120167...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS CAUTION: TO REDUCE THE RISK OF ELECTRICAL “CAUTION” SHOCK, DO NOT REMOVE THE COVER TO PREVENT ELECTRICAL SHOCK (OR BACK). NO USER SERVICEABLE DO NOT REMOVE COVER PARTS INSIDE; REFER SERVICING TO “AVIS” RISQUE DE CHOCH ELECTRIQUE QUALIFIED PERSONNEL.
- Page 3 Object and Liquid Entry The apparatus must be placed in inappropriate position. Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through cooling grid with consequent electrical danger. Ventilation The appliance should be situated so that its location or position does not interfere with its proper ventilation.
- Page 4 DESCRIPTION The models of the “OPERA D” series use cutting edge digital amplifiers of the DIGIPRO ® series, providing three different powers - 200W, 400W, and 600W - to meet the requirements of any kind of application. These highly efficient amplifiers provide high power with limited weight and dimension. OPERA 210D Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan.
-
Page 5: Commands And Functions
COMMANDS AND FUNCTIONS AMPLIFIER PANEL “Balenced Input” - “Link” - “Input Link” CONNECTORS These balanced inputs can be used to connect balanced or unbalanced microphones or audio sources at line level (0dB) (eg. preamplifier, mixer, recorder, CD player, musical instrument, ...). The balanced connector is connected in parallel and can be used to send the audio signal to other amplified speakers, recorders or supplementary amplifiers. -
Page 6: Characteristics And Protection
CHARACTERISTICS AND PROTECTION Front Grille The speakers’s components in the box are protected by 1.2mm metal steel grille (8” version) and by 1.5mm metal steel grille (10”,12” and 15” versions) covered by foam on backside. Cooling Thermal control is provided by the internal microprocessor which, by means of two sensors, controls the temperature of the amplifier and of the power supply, avoiding overheating by limiting the overall volume. -
Page 7: Loudspeaker Installation
Perform the checks listed below: Check if the speaker is properly connected to the power supply. Make sure that the power supply is of correct voltage. Check that the amplifier is not overheated. Disconnect the speaker from the mains power supply, wait for a few minutes and connect it again. - Page 8 DIMENSIONI / DIMENSIONS ABMESSUNGEN / DIMENSIONS OPERA 208D OPERA 208D OPERA 210D OPERA 210D OPERA 410D OPERA 410D O P E O P E 43° 43° 43° 43°...
- Page 9 ANGOLO DI COPERTURA TROMBA / HORN ANGLE COVERED HOCHTONHORN ABSTRAHLWINKEL / ANGLE DE COUVERTURE COTE 65° 60° 80° 65° 80° Long trough Near field...
- Page 10 UTILIZZO IN APPOGGIO SUPPORTED USE ANWENDUNG UTILISATION EN APPUI O P E O P E Fig. 1 UTILIZZO A PAVIMENTO (MONITOR) FLOOR USES (MONITOR) VERWENDUNG AUF DEM BODEN (MONITOR) UTILISATION AU SOL (ÉCRAN) Fig. 2 SUPPORTO PIANTANA STANDARD (D36M) STANDARD STAND (D36MM) STANDARD-HOCHSTÄNDERFLANSCH (D36MM) SUPPORT STANDARD (D36MM) FIG.
- Page 11 OPERA 610D _ 10“neodym woofer _ 1“ neodym compr. driver _ 80/65°x60°asym. CD horn _ 400 + 200 W/RMS digipro® _ 60 – 20.000 Hz (-10dB) _ Max. SPL: 128 dB _ 24 bit 48 kHz DSP _ Line/ Mic Input/ XLR/jack _ Multifunctional housing _ Weight: 9.9 kg _ Dimensions (WxHxD):...
