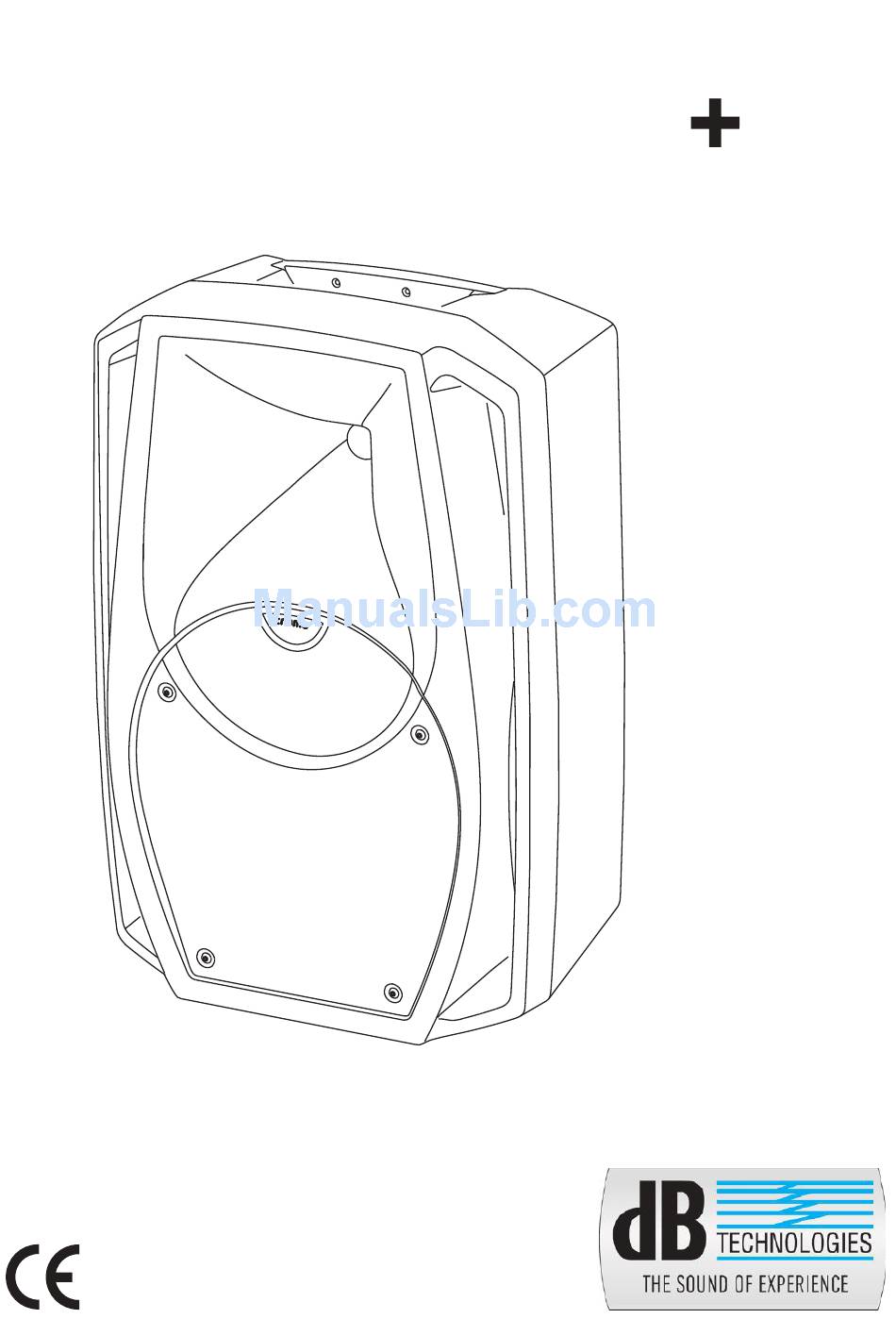

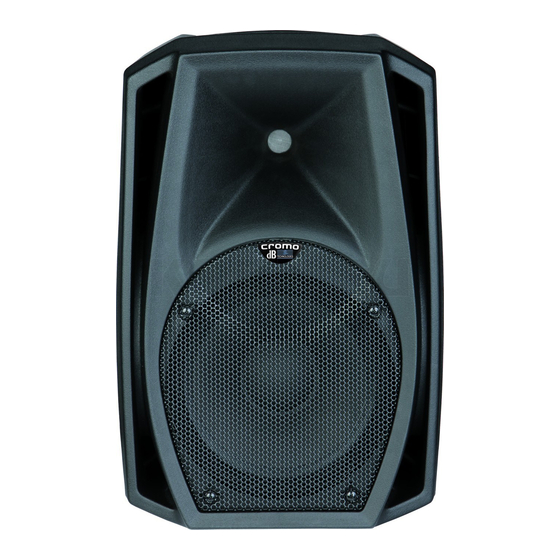

- Page 1 Cromo Series Club Series MANUALE D USO - Sezione 1 USER MANUAL - Section 1 BEDIENUNGSANLEITUNG - Abschnitt 1 CARACTERISTIQUES TECHNIQUES - Section 1 Made in China COD. 420120173A...
- Page 2 Series CROMO + e CROMO club DESCRIPTION The “CROMO +” and “CROMO club” series speakers use multichannel digital power amplifiers of last generation DIGIPACK . These highly efficient amplifiers provide high power with limited weight and dimension. Thanks to the low power dissipated, the cooling of the amplifier module does not require a fan.
- Page 3 CROMO 10 + The CROMO 10+ bi-amped active speaker is equipped with digital amplifier delivering 400W power. The 2-way bi-amplified speaker is equipped with 10” woofer (1,5” voice coil) and 1” Neodymium driver (1” voice coil) loaded with 90°/70°x60°asymmetric horn. The speaker is made of plastic material, and is provided with a top handle, rubber coated , which eases transportation.
- Page 4 CROMO 15+ The CROMO 15+ bi-amped active speaker is equipped with digital amplifier delivering 600W power. The 2-way bi-amplified speaker is equipped with 15” woofer (2” voice coil) and 1” compression driver (1.5” voice coil) loaded with 90°/70°x60°asymmetric horn. The speaker is made of plastic material, and is provided with a top handle, rubber coated , which eases transportation.
-
Page 5: Commands And Functions
COMMANDS AND FUNCTIONS AMPLIFIER PANEL (Ref. page 25) “ Inputs” CONNECTORS These balanced inputs can be used to connect balanced or unbalanced microphones or audio sources at line level (0dB) (eg. preamplifier, mixer, recorder, CD player, musical instrument, ...). The balanced connector is connected in parallel and can be used to send the audio signal to other amplified speakers, recorders or supplementary amplifiers. -
Page 6: Loudspeaker Installation
LOUDSPEAKER INSTALLATION WARNING Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons, animals or property. For safety reasons do not place one loudspeaker on top of another without proper fastening systems. - Page 8 AMPLIFICATORE - AMPLIFIER VERSTÄRKER - AMPLIFICATEURS PUSH LIMITER VOLUME READY NPUTS SENSITIVITY LINE -40dB “CAUTION” TO PREVENT ELECTRICAL SHOCK DO NOT REMOVE COVER “AVIS” RISQUE DE CHOCH ELECTRIQUE NE PAS OUVRIR Made in China CROMO 220-240V~ 50-60Hz 110-120V~ 50-60Hz Digital Power POWER FUSE MAINS...
- Page 9 SCHEMA A BLOCCHI - BLOCK DIAGRAM BLOCKSCHALTBILD - SCHEMAS FONCTIONNELS CROMO 8 + AMPLFIER CROMO 300W POWER MAINS SWITCH FUSE INTERNAL POWER SUPPLY TRANSFORMER DIGIPACK DRIVER SENSITIVITY INPUTS Class D igital ignal rocessing WOOFER 8” VOLUME Class D LIMITER READY CROMO 10 + AMPLFIER CROMO 400W...
- Page 10 CROMO 12 + AMPLIFIER CROMO 600W POWER MAINS SWITCH FUSE INTERNAL POWER SUPPLY TRANSFORMER DIGIPACK Class D DRIVER SENSITIVITY INPUTS Class D igital ignal rocessing WOOFER 12” VOLUME Class D Class D LIMITER READY CROMO 15 + AMPLIFIER CROMO 600W POWER MAINS SWITCH...
-
Page 11: Long Throw
CROMO 12 club AMPLFIER CROMO 400W POWER MAINS FUSE SWITCH INTERNAL POWER SUPPLY TRANSFORMER DIGIPACK SENSITIVITY DRIVER INPUTS Class D igital ignal rocessing WOOFER 12” VOLUME Class D LIMITER READY ANGOLO DI COPERTURA TROMBA / HORN COVERAGE ANGLE HOCHTONHORN ABSTRAHLWINKEL / ANGLE DE COUVERTURE COTE 70°... - Page 12 DIMENSIONI / DIMENSIONS ABMESSUNGEN / DIMENSIONS CROMO 8 + CROMO 10 + 320 mm 297 mm 270 mm 252 mm 45° 45°...
- Page 13 DIMENSIONI / DIMENSIONS ABMESSUNGEN / DIMENSIONS CROMO 12 + CROMO 12 club 356 mm 402 mm 45°...
- Page 14 DIMENSIONI / DIMENSIONS ABMESSUNGEN / DIMENSIONS CROMO 15+ 475 mm 423 mm 45°...
- Page 15 COLLEGAMENTI - CONNECTIONS - ANSCHL ÜSSE - BRANCHEMENTS Funzionamento sbilanciato con Funzionamento bilanciato con connettore jack 1/4” (6,3mm) connettore jack 1/4” (6,3mm) Unbalanced use of stereo 1/4” jack plug Balanced use of stereo 1/4” jack plug Punta = Segnale Punta = Positivo/Caldo/Fase +VE Tip = Signal Tip = Positive/Hot/+VE Phase Gambo=Schemo/Massa/Terra...
- Page 16 A.E.B. INDUSTRIALE s.r.l. Via Brodolini, 8 - 40056 Crespellano (Bo) - ITALIA Tel. + 39 051 969870 - Fax. + 39 051 969725 Internet: www.dbtechnologies.com E-mail: info@dbtechnologies-aeb.com...
