Summary of Contents for Boya BOYALINK

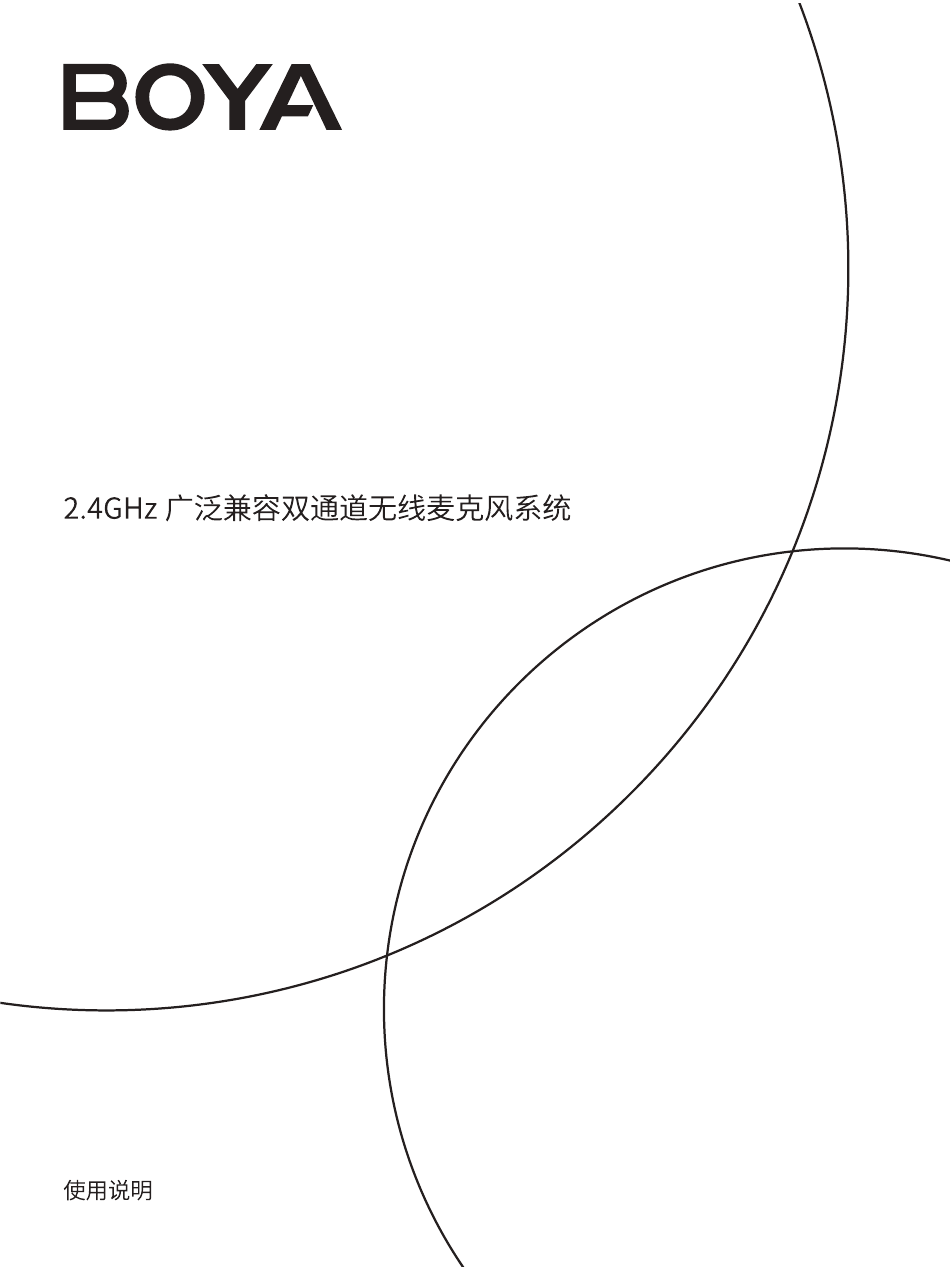

- Page 1 Multi-Compatible 2.4GHz Dual-Channel Wireless Microphone System BOYALINK Instruction Manual...
-
Page 2: General Introduction
• Also available in 48kHz HD audio when delivering broadcast-quality sound with noise cancellation enabled remarkable ease of use. The BOYALINK is • Wide-range 20-20,000Hz frequency ideal for content creation, live streaming, response - deliver exceptional high-quality... -
Page 3: Product Structure
Product Structure Transmitter In-built Microphone Capsule Power Button Status Indicator • Press and hold to power on or o . • Press to mute or unmute the microphone. Status Indicator +/- Button • Press the “+” or “-” button to adjust mic Unpaired Blinking blue slowly gain in 6 levels. - Page 4 Receiver Status Indicator mode, the two capsules' audio output will be separated to the left and right sides. Status Indicator Contacts Clasp Unpaired Blinking blue slowly Charging Contacts Paired USB-C Charging Port Static blue successfully For charging the receiver. An external Low battery Blinking red quickly device can be powered and charged...
- Page 5 Charging Case Slot for Transmitter(s) Status Battery Level Indicator Slot for Adapters Slot for Fur Windshield Low battery Slot for Receiver Charging Contacts USB-C Charging Port 25%-50% OPEN Button Charging Charging Indicator 50%-75% 75%-100% Fully charged 100%...
- Page 6 Operation Guide 1. Attach the fur windshield to the transmitter(s) when using it outdoors or in a windy environment. 2. Push the selected adapter into the receiver. Connect the receiver to your audio devices, such as a camera, smartphone, tablet, computer, etc.
- Page 7 6. It is recommended to record a sample and play it back to check if the audio level is acceptable before recording. 7. In order to improve the recording e ect in a noisy environment, it is recommended that press the "+" and "-" buttons on the transmitter(s) at the same time...
-
Page 8: Troubleshooting
Troubleshooting If you encounter problems when using the unit, please refer to the following checklist before contacting technical support. If the problem cannot be solved, please contact the dealer's after-sales service department. If there is no sound from the unit or no sound when connected to an external device Make sure the adapter on the receiver is well connected to your device. -
Page 9: Specifications
Specifications Transmitter & Receiver Transmission Type 2.4GHz digital frequency Modulation Digital modulation Polar Pattern Omnidirectional Antenna Ceramic antenna Operating Range (Without Up to 100m (This value is tested in the open areas without any Obstacle) interferences according to FCC standard.) RF Output Power <... - Page 10 In the Box BOYALINK BOYALINK A2 2× BOYALINK Transmitter 2× BOYALINK Transmitter 1 × BOYALINK Receiver 1 × BOYALINK Receiver 1 × USB-A to USB-C Cable 1 × USB-A to USB-C Cable 1 × MFi Certified Lightning Adapter 1 × MFi Certified Lightning Adapter 1 ×...
- Page 20 SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD. The BOYA logo is a trademark which is registered and owned by Shenzhen Jiayz Photo Industrial., Ltd. TEL: 400 6131096 Email: sales@boya-mic.com www.boya-mic.com / www.jiayz.com...
