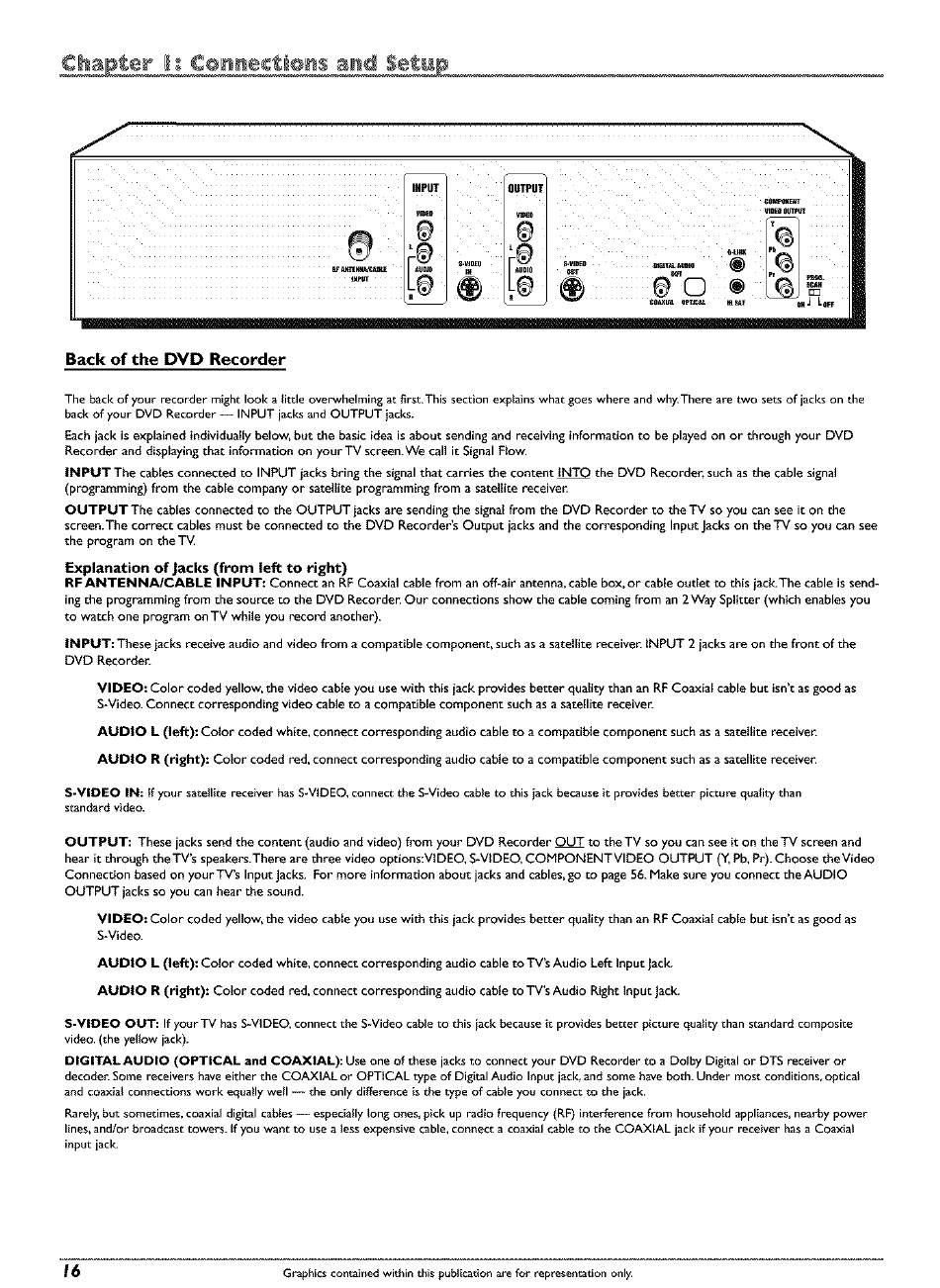

Back of the DVD Recorder
The back of your recorder
might look a little overwhelming at first.This section explains what goes where and wh)_There are two sets of jacks on the
back of your DVD Recorder m INPUT jacks and OUTPUT
iacks.
Each jack is explained
individually below, but the basic idea is about sending and receiving information to be played on or through
your
DVD
Recorder
and displaying that information on your TV screen.We
calJ it Signal Plow.
INPUT
The cables connected
to INPUT iacks bring the signal that carries the content
iNTO the DVD Recorder, such as the cable signal
(programming)
from the cable company or satellite programming
from a s=teUite receiver.
OUTPUT
The cables connected
to the OUTPUT
jacks are sending the signal from the DVD Recorder
to the TV so you can see it on the
screen.The
correct
cables must be connected
to the DVD Recorder's
Ou_ut
jacks and the corresponding
Input Jacks on the TV so you can see
the program on the TV
Explanation
of Jacks
(from
left
to right)
RF ANTENNA/CABLE
INPUT:
Connect
an RF Coaxial cable from an off-air antenna, cable box, or cab{e oudet to this iack.The
cable is send-
ing the programming
from the source to the DVD Recorde_ Our connections
show the cable coming from an 2Way Splitter
(which enables you
to watch one program on TV while you record another).
INPUT:
These iacks receive audio and video from a compatible
component,
such as a sateffite receiver. INPUT 2 jacks are on the front of the
DVD Recorder.
VIDEO: Color coded yellow,the video cab{eyou use with this iack provides better quality than an RFCoaxial cable but isn't as good as
S-Video.Connect corresponding video cable to a compatible component such asa satellite receiver.
AUDIO
L (left): Color
coded white, connect corresponding
audio cable to a compatib{e
component
such as a satellite receiver.
AUDIO
R (right):
Color
coded red, connect corresponding audio cable to a compatible component
such as a satellite
receivea
S-VIDEO
IN: if your satellite receiver has S-VIDEO, connect the S-Video cable to this iack because it provides better picture quality than
standard video.
OUTPUT:
These jacks send the content (audio and video) from your DVD Recorder O_T to theTV so you can see it on theTV screen and
hear it through the TV's speakers.There are three video options:VIDEO, S-VIDEO,COMPONENTVIDEO
OUTPUT (Y,Pb,Pr). Choose the Video
Connectfon basedon your TV's Input Jacks. For more information about jacks and cables,go to page56. Make sure you connect the AUDIO
OUTPUT jacksso you can hear the sound.
VIDEO: Color coded yellow,the video cab{eyou use with this iack provides better quality than an RFCoaxial cable but isn't as good as
S-Video.
AUDIO
L (left): Color
coded white, connect corresponding
audio cable to TV's Audio
Left Input Jack.
AUDIO
R (right):
Color
coded red, connect corresponding
audio cab{e to TV's Audio
Right Input Jack.
S-VIDEO
OUT:
If your TV has S-VIDEO, connect the S-Video cable to this iack because it provides better picture quality than standard composite
video. (the yeffow jack).
DIGITALAUDIO
(OPTICAL
and COAXIAL):
Use one of these jacks to connect your DVD Recorder to a Do,by Digital or DTS receiver or
decoder. Some receivers have either the COAXIAL
or OPTICAL
type of Digital Audio Input jack, and some have both. Under most conditions, optical
and coaxial connections work equally well -- the only difference is the type of cable you connect to the jack.
Rare_y,but sometimes, coaxial digital cables -- especially long ones, pick up radio frequency (RF) interference
from household appliances,nearby power
lines, and/or broadcast towers. _fyou want to use a less expensive cable, connect a coaxial cable to the COAXtAL
jack if your receiver has a Coaxial
input jack.
16
Graphics
contained
within
this publica_on
are for _epresentation
only.
