¢lhap el Celnlne lielns and

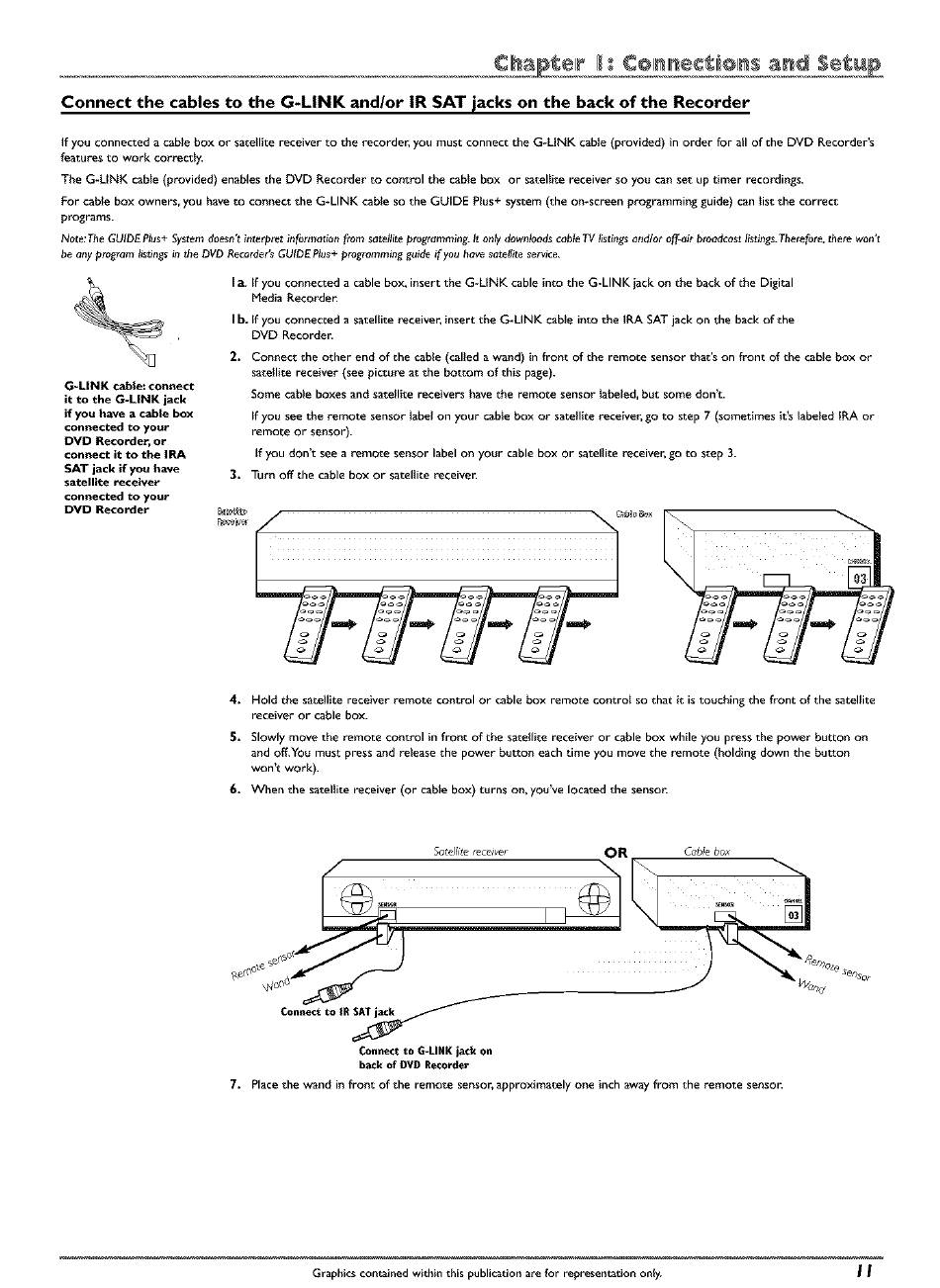

Connect the cables to the G-LINK and/or IR SAT iacks on the back of the Recorder
If you connected a cable box or satellite receiver to the recorder, you must connect the G-LINK cable (provided) in order for all of the DVD Recorder's
features to work ¢orrecd_
The G-LINK cable (provided) enables the DVD Recorder to control the cable box or satellite receiver so you can set up timer recordings.
For cable box owners, you have to connect the G-LINK cable so the GUIDE Plus+ system (the on-screen programming guide) can tist the correct
programs.
Note:The GUIDEPlus+ Systemdoesn't interpretinformationfrom satellite programming. It only downloadscable TV //stingsoad/or off-air broadcast listings.Therefore,there won't
be any program llstthgsin the DVD RecordersGUIDE Plus+programming guideif you hove sote_te service.
G-LINK cable: connect
it to the G-LINK jack
if you have a cable box
connected to your
DVD Recorder, or
connect it to the IRA
SAT jack if you have
satellite receiver
connected to your
DVD Recorder
I a. If you connected a cable box, insert the G-LINK cable into the GdsINK iack on the back of the Digital
Media Recorden
I b. If you connected a satellite receiver, insert the G_LINK cable into the IRA SAT jack on the back of the
DVD Recorden
2. COnnect the _ther end _f the cabie (ca_ed a wand) in fr_nt _f the remote sens_r that's on front _f the cab_e bo× _r
satellite receiver (see picture at the bottom of this page).
Some cable boxes and satellite receivers have the remote sensor tabooed,but some don_t.
If you see the remote sensor label on your cable box or satellite receiver, go to step 7 (sometimes it's labeled IRA or
remol_e
or
sensor).
_fyou don_t see a remote sensor label oN your cable box or satellite receiver, go to step 3.
3. Turn off the cable box or satellite receiven
° ° °° o o °!o o
7
4, Hold the satellite receiver remote control or cable box remote control so that it is touching the front of the satellite
receiver or cable box.
S, Slowly move the remote control in front of the satellite receiver or cable box while you press the power button on
and off.You must press and release the power button each time you move the remote (holding down the button
won't work).
6. When the satellite receiver (or cable box) turns on, you've located the sensor.
_at_//,tereceiver OR _uhle hox
-" \1\
Connect to IR_
Connect to G-LINKjack on
back of DVD Recorder
7. Place the wand in front of the remote sensor, approximately one inch away from the remote senson
Graphics contained within this publication are for representation on{y. I I
