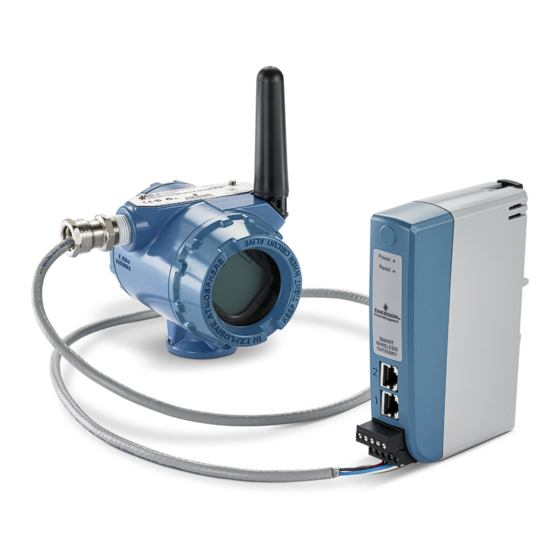

- Page 1 Quick Start Guide 00825-0200-4410, Rev ED October 2023 Emerson Wireless Gateway 1410D ™ Gateway with 781 Field Link...
-
Page 2: Table Of Contents
Quick Start Guide October 2023 Safety messages NOTICE This guide provides basic guidelines for the Emerson Wireless 1410 and 1410D Gateway. It does not provide instructions for diagnostics, maintenance, service, or troubleshooting. Refer to the Emerson Wireless Gateway 1410 Reference Manual for more information and instructions. -
Page 3: Wireless Planning
October 2023 Quick Start Guide 1 Wireless planning Power up sequence The Gateway should be installed and functioning properly before power modules are installed in any wireless field devices. Wireless field devices should also be powered up in order of proximity from the Gateway beginning with the closest. -
Page 4: Personal Computer (Pc) Requirements
Configuration of the Gateway is done through a secure web interface. Recent versions of the following browsers are supported: • Chrome browser ™ • Mozilla Firefox ® • Microsoft Edge Hard disk space 6.5 GB AMS Wireless Configurator 400 MB Security Setup Utility (SSU) Emerson.com... -
Page 5: Initial Connection And Configuration
Powering the Gateway For the 1410D, bench top power will be needed to power the Gateway by wiring a 10.5–30 Vdc (20–30 Vdc if a 781 is connected with intrinsically safe [IS] barriers to the 1410D) power source, with a capacity of at least 250 mA to the power terminals. - Page 6 D. Ethernet port 1. When this port is activated, the factory IP address is 192.168.1.10. See Table 3-1 E. Emerson 1410 power and serial connections. Black terminal included in the box. F. Emerson Wireless 781 Field Link power and data connections. Black terminal included in box. Emerson.com...
- Page 7 October 2023 Quick Start Guide 3.1 Establishing a connection Connect the personal computer (PC) or laptop to the Ethernet 1 (primary) receptacle on the Gateway using an Ethernet cable. 3.1.1 Connect with Windows ™ Procedure 1. Click the Internet Access icon on the bottom right of the screen.
- Page 8 4. Select Properties. 5. Select Internet Protocol Version 4 (TCP/IPv4); then select Properties. Figure 3-4: Internet Protocol Version 4 (TCP/IPv4) Note If the personal computer (PC)/laptop is from another network, record the current IP address and other settings, so the Emerson.com...
- Page 9 October 2023 Quick Start Guide PC/laptop can be returned to the original network after the Gateway has been configured. 6. Select Use the following IP address. Figure 3-5: IP Address 7. Enter an IP address in the IP address field: • Enter 192.168.1.12 •...
- Page 10 Quick Start Guide October 2023 3.1.2 Connect with Windows ™ Procedure 1. Select the Network icon in the lower right corner. 2. Select Network settings. Emerson.com...
- Page 11 October 2023 Quick Start Guide 3. Select Ethernet on the left hand side of the Network Settings dialog. 4. Select Change adapter options. 5. See Step 4 through Step 9 from Connect with Windows ™ instructions. Quick Start Guide...
- Page 12 192.168.1.12 255.255.255.0 Ethernet 2 192.168.2.10 192.168.2.12 255.255.255.0 3.1.3 Disable proxies Procedure 1. Open web browser. 2. Navigate to Tools → Internet Options → Connections → LAN Settings. This may be a different process for other browsers. 3. Under Proxy server, deselect Use a proxy server..Emerson.com...
- Page 13 October 2023 Quick Start Guide 3.2 Configure the Gateway Procedure 1. Access the default web page for the Gateway at https:// 192.168.1.10 a) Log on as Username: admin b) Type in Password: default 2. Navigate to System Settings → Gateway → Ethernet Communication to enter the network settings. a) Configure a static IP Address or set for dynamic host configuration protocol (DHCP) and enter a Host Name.
- Page 14 Quick Start Guide October 2023 3. Restart application at System Settings → Gateway → Backup and Restore → Restart Apps. Note Resetting applications will temporarily disable communications with field devices. 4. Disconnect the power and Ethernet cable from the Gateway. Emerson.com...
-
Page 15: Physical Installation
Quick Start Guide 4 Physical installation 4.1 Emerson and 1410D mounting You can snap the device onto a DIN TS35/7.5 or TS35/15 rail system. NOTICE When mounting the device in an electrical enclosure or other location, comply with the appropriate local and national installation codes. - Page 16 781 determines whether it needs to be installed with barriers. Installation without barriers A shielded twisted pair cable is needed for connecting the 1410D and 781 (refer to Figure 4-3). The 781 can be located up to 656 ft. (200 m) from the 1410D.
- Page 17 October 2023 Quick Start Guide Figure 4-3: 1410D and 781 without barriers installation A. Wireless 1410D Gateway B. 10.5 to 30 Vdc power input C. Serial Modbus ® D. Gray line means internal connection E. Power outputs F. Data G. Red H.
- Page 18 Gateway should be 20–30 Vdc, with current capacity of at least 330 mA. The signal barrier needs additional power. You can wire it to the 1410D terminals or to a separate power supply. Make sure power supply is rated to handle power drawn for the barrier. Figure 4-4 Figure 4-5 show the two variations of powering the signal barrier.
- Page 19 October 2023 Quick Start Guide Figure 4-4: 1410D and 781 with Gateway-powered barrier installation A. Wireless 1410D Gateway B. 20 to 30 Vdc power input C. Serial Modbus D. Gray line means internal connection E. Power outputs F. Data G. Red H.
- Page 20 Quick Start Guide October 2023 P. Hazardous area Q. Tape back shield wire and foils R. IS segregation S. Return T. Connect for terminator U. Short these terminals for 250 Ω V. Wireless 781 Field Link Emerson.com...
- Page 21 October 2023 Quick Start Guide Figure 4-5: 1410D and 781 with additional power-supplied barrier installation A. Wireless 1410D Gateway B. 20 to 30 Vdc power input C. Serial Modbus D. Gray line means internal connection E. Power outputs F. Data G. Red H.
- Page 22 Power barrier Shield grounding The shield of the twisted pair cable needs to be grounded using the grounding terminal on the 1410D, and it should be taped back on the 781 side. 1410D grounding The 1410D DIN rail cabinet must be grounded as well. Emerson recommends A #6 American Wire Gauge (AWG) (4.11 mm European)
- Page 23 October 2023 Quick Start Guide Figure 4-6: 1410D grounding A. #6 AWG copper wire B. Protective ground C. Reference ground (when present) D. Earth E. May be polymer with grounding plate 781 grounding Grounding of the electronics enclosure should be done in accordance with local and national installation codes.
- Page 24 Terminating resistances For best performance, the terminating resistances should be matched across the 1410D, 781, and the signal barrier. The 1410D has an integral 250 Ω terminating resistor. Short the 781 terminator terminals to engage a 250 Ω resistor (see...
- Page 25 October 2023 Quick Start Guide 4.4 Best practice Twisted shielded pair cable is generally used to wire the serial connection, and it is standard practice to ground the shield on the serial host side, leaving the shield floating on the Gateway side. Insulate the shield to avoid grounding issues.
-
Page 26: Software Installation (Optional)
1. Exit/close all Windows programs, including any running in the ™ background, such as virus scan software. 2. Open the SSU software file downloaded from the Emerson Gateway Firmware Upgrade page. 3. Follow the prompts. 5.2 Install AMS Wireless Configurator... -
Page 27: Verifying Operations
Figure 6-1: Gateway Login screen The Gateway is now ready to be integrated into the host system. If wireless field devices were ordered with the Gateway,Emerson pre- configured them with the same Network ID and Join Key information. Once the field devices are powered, they will appear on the wireless network, and communications can be verified under the Explore tab using the web interface. -
Page 28: Product Certifications
All wireless devices require certification to ensure they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. - Page 29 Equipment must be installed in a suitable tool accessible enclosure subject to the end use application. • Using the Emerson 1410D and the Smart Wireless Field Link 781 in a hazardous location requires barriers between the two units. 7.2.1 Canada...
- Page 30 4. When fitted, the surface resistivity of the remote antenna is greater than 1 GΩ. To avoid electrostatic charge build up, it must not be rubbed with a dry cloth or cleaned with solvents. Note Not currently available for 1410D option. 7.4 International N7 IECEx Type n IECEx BAS 14.0067X...
- Page 31 October 2023 Quick Start Guide Note Currently not available for Emerson 1410D option. 7.5 EAC - Armenia, Belarus, Kazakhstan, Kyrgyzstan, Russia NM (EAC) Type n EAЭC RU C-US.EX01.B.00167/2 Certificate 2Ex nA IIC T4 Gc X, T4 (–40 °C ≤ Ta ≤ +75 °C), V...
- Page 32 Quick Start Guide October 2023 7.7 Emerson 1410 Wireless Gateway Declaration of Conformity Figure 7-1: Declaration of Conformity Emerson.com...
- Page 33 October 2023 Quick Start Guide Quick Start Guide...
- Page 34 Quick Start Guide October 2023 Emerson.com...
- Page 35 October 2023 Quick Start Guide Figure 7-2: China RoHS table Quick Start Guide...
- Page 36 2023 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
