TCL Air Conditioner Service Manual
2 Installation

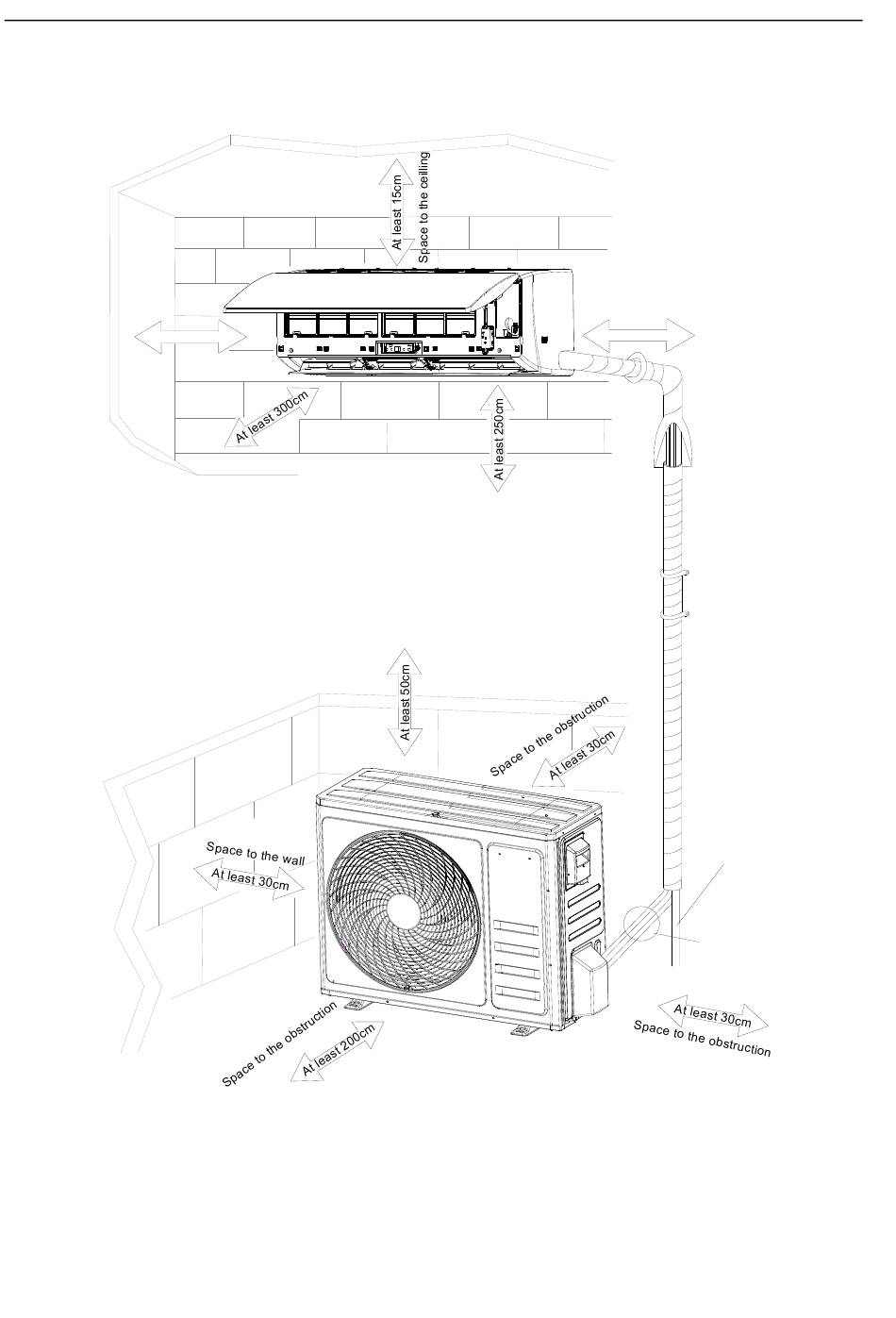

2.1 Installation Dimension Diagram
Space to the wall
At least 15cm
At least 15cm
Space to the wall
Space to the obstruction
Space to the floor
Space to the obstruction
Drainage pipe
Connecting wire
24
