TCL TAC-09CSD/XAB1 Service Manual page 10

7K, 9K, 12K, 18K，24K

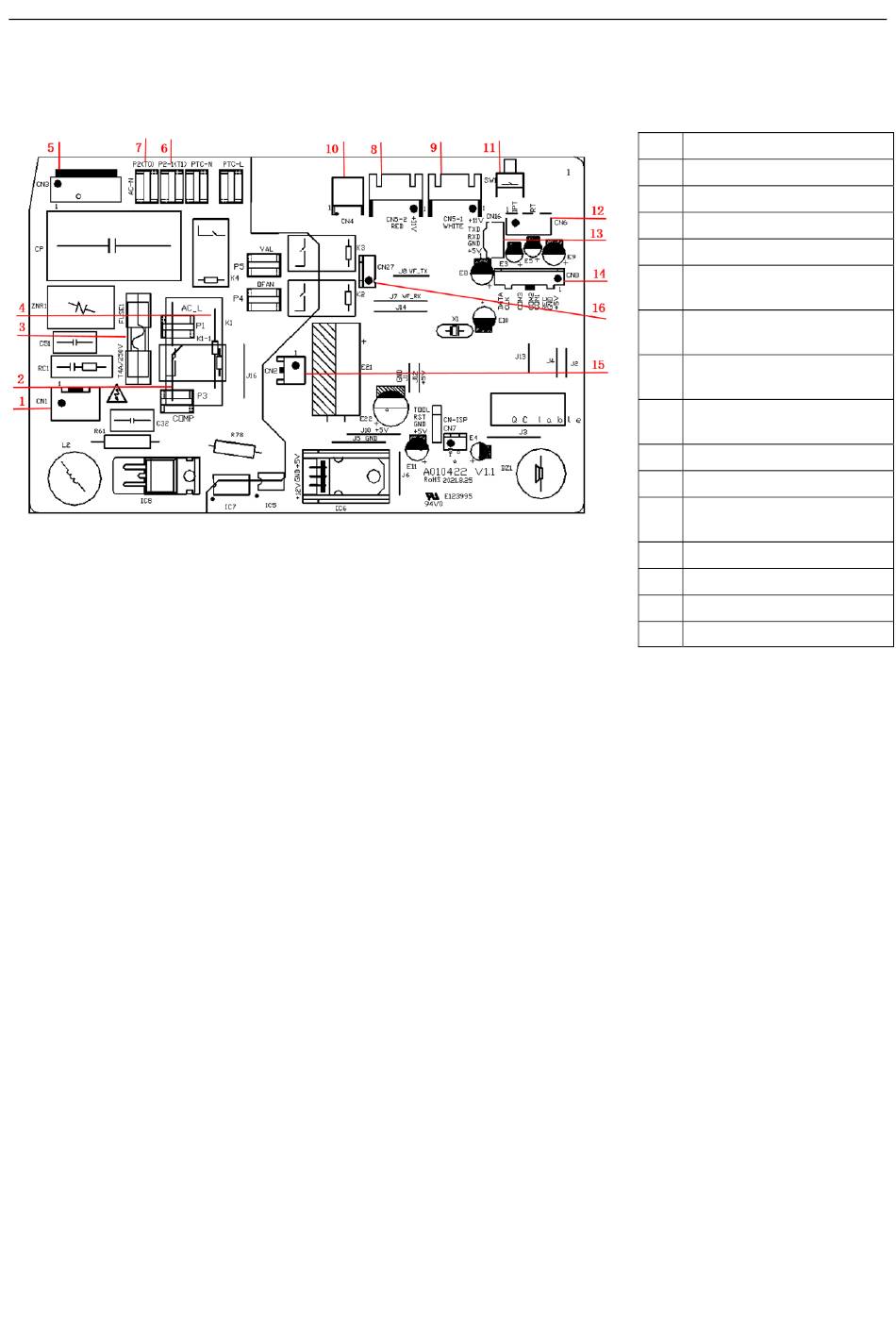

Top view
A010422
TCL Air Conditioner Service Manual
1 Trans former IN
2 ODU AC power output
3 Fuse
4 ODU AC power input
5 AC motor driver
IDU/ODU wiring
6
connection‐N connector
Power supply‐N
7
connector
Left‐Right swing
8
connector
Up‐Down swing
9
connector
10 AC Motor feedback
11 Emergency button
Temperature sensor
12
connector
13 WIFI connection
14 Display
15 Trans former OUT
16 Anion connrctor
