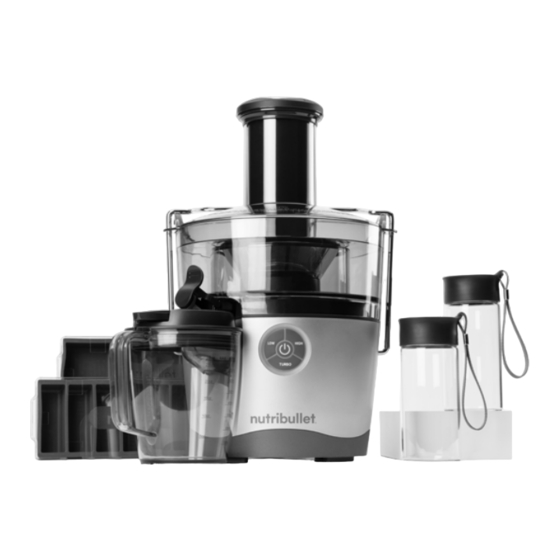

- Page 1 User Manual of Product 1: Nutribullet NBJ-200 Juicer Pro Compact 2 Litre Pulp Basin 1000 W Black, Silver...
- Page 2 User guide.
-
Page 4: Important Safeguards
Important safeguards. Warning! To avoid the risk of serious injury, carefully read all instructions before operating your NutriBullet Juicer Pro™. When using any electrical appliance, basic safety precautions should always be observed, including the following important information. Save these instructions! - Page 5 • Do not let the power cord • Do not use the juicer if the hang over the edge of a table rotating sieve is damaged. or counter top. • Do not use the juicer • Do not let the power cord without the pulp basin and touch hot surfaces, such as a basin cover attached to...
- Page 6 Always make sure the • Remove rind from all citrus fruits before juicing. Juicer is properly and completely assembled • Do not juice stone fruit unless pits or seed stone has before connecting to power been removed. outlet and operating. Do not leave the appliance Ensure that the surface unattended while in use.
-
Page 8: Table Of Contents
What’s included Assembly guide Assembly & use Usage instructions Control panel Juicing tips Disassembly Care and maintenance Juice and unit storage Troubleshooting guide Replacement parts NutriBullet Juicer Pro™ one-year limited warranty Warranty registration Thank you for purchasing the NutriBullet Juicer Pro™. -
Page 9: What's Included
What’s included. DUAL-SIZE 1000 WATT MOTOR PULP BASIN COVER FOOD PUSHER BASE WITH WITH 3" FEED CHUTE LOCKING HANDLE 2L PULP BASIN STAINLESS STEEL SIEVE 27 OZ JUICE PITCHER WITH NO-DRIP SPOUT JUICE PITCHER LID CLEANING BRUSH TWO 12 OZ GLASS WITH FROTH SEPARATOR STORAGE BOTTLES 2 OZ FREEZER TRAY... -
Page 10: Assembly Guide
Assembly guide. dual-size food pusher 3” feed chute basin cover stainless steel sieve (inside basin) 2L pulp basin locking handle no-drip spout juice pitcher lid multi-speed control panel motor base 27 oz juice pitcher... -
Page 11: Assembly & Use
Assembly & use. Motor Base Pulp Basin Place the Place the on top a dry, level counter top. of the Motor Base. Align the Pulp Basin Ensure the dial is set to the with the Motor “OFF” position and the unit Base so that the spout is is unplugged. - Page 12 Locking Handle Raise the No-Drip Spout Swing the and move it into the “ears” on cover up vertically so that each side of the Basin Cover. it is no longer covering the Locking Handle should juice spout. be in a vertical position and locked into place.
-
Page 13: Usage Instructions
Usage instructions. Gather all of your desired After the juicer is fully ingredients. Wash and assembled, plug the power prepare them for juicing. cord into an outlet. NOTE: If no speed is selected after 10 minutes, the unit will power off. - Page 14 Dual-Size To operate the Select a speed to begin Food Pusher, grip the juicing. The speed selected outer edge of the top of will illuminate on the the pusher with one hand control panel. You may and the bottom of the start at any speed and can pusher with the other hand.
- Page 15 If you are using smaller If you are using larger ingredients (smaller ingredients, keep the feed fruits, leafy greens, stalk chute empty (creating a vegetables like celery or wider chute) and lock the carrots), place the outer part inner pusher back inside of the pusher into the chute, the outer pusher.
- Page 16 NOTE: You may alternate Juice will begin to flow out between the two chute sizes of the spout and into the (narrow and wide) as you Juice Pitcher, while the are juicing. pulp will be separated and WARNING: Pulp Basin. Do not use stored in the excess force when pushing...
- Page 17 To stop juicing, press the speed Pulp Basin When the at which you are currently completely full, it must be juicing. To completely power emptied before continuing off the juicer, press the center juicing. See disassembly power button and wait for the instructions.
-
Page 18: Control Panel
Control panel. MULTI-SPEED CONTROL PANEL & JUICING SETTINGS. OFF: Power is OFF. If the unit is ON, the center power button will be illuminated. Pressing the center button will turn the unit OFF. LOW: Best for juicing softer fruits and vegetables. HIGH: Best for harder produce like pineapples. -
Page 19: Juicing Tips
Juicing tips. JUICING SPEED SELECTION GUIDE INGREDIENTS SPEEDS SEASONS Apple Turbo All Year Beets Turbo Summer / Fall / Winter Blueberry Turbo Summer Broccoli Turbo Fall / Spring Brussels Sprouts Turbo Fall / Winter Cabbage Fall / Winter / Spring Carrots Turbo All Year... - Page 20 VITAMINS / NUTRIENTS source of quercetin excellent source of folate good source of vitamin C high in vitamin C, high in folate, good source of potassium high in vitamin C, good source of folate high in vitamin C excellent source of vitamin A, good source of vitamin C high in vitamin C, good source of folate good source of vitamin C, good source of vitamin A good source of vitamin C...
- Page 21 PROPER PRODUCE PREP FEED CHUTE Prepare fruit and veggies before Food Pusher Selecting which inserting them into the juicer: to use (narrow or wide) affects feed chute thickness. If you • Properly clean produce pull out the thinner inner food (rinse with produce wash, or pusher from within the full lukewarm water and apple...
- Page 22 CONSUMING JUICE AND PULP OVERHEATING, SPEED SELECTION, & AUTO SHUT-OFF Instead of composting or throwing away the pulp left • If the motor overheats, the over after juicing, you can juicer will turn off. choose to consume it. See our •...
-
Page 23: Disassembly
Disassembly. Ensure the unit is powered Remove the pitcher from “OFF” and unplugged. under the spout. To prevent No-Drip Spout drips use the cover to close the juice spout. Locking Handle Pulp Basin Unlock the Remove the Basin Cover from the Motor Base by from the pulling upwards with the pulling the handle backward... - Page 24 Food Pusher Remove the Lift the Basin Cover lifting it out of the feed chute. vertically off of the Pulp Basin and remove any pulp from the inside of the cover. You may use the flat end Cleaning Brush of the scrape pulp off of the cover.
-
Page 25: Care And Maintenance
Care & maintenance. Cleaning the NutriBullet Juicer Pro™ is quick and easy. All Sieve Always clean the soon as possible after juicing using components except for the Cleaning Brush. If allowed to Food Pusher and Motor Base sit, pulp will dry on the... -
Page 26: Juice And Unit Storage
Juice & unit storage. Included with your Juicer Pro are some great storage accessories: a Juice Pitcher, two Juice Storage Bottles, and two Freezer Trays. The storage accessories give you For best taste, consume three options for storing juice: fresh juice and pulp within 48 hours of juicing. -
Page 27: Troubleshooting Guide
SOLUTION: Ensure the down for 15 minutes before Locking Handle is securely continuing use. locked into place. Replacement parts. To order additional parts and accessories, please visit our website nutribullet.com/shop/accessories or contact Customer Service 1 (800) 523-5993. -
Page 28: Nutribullet Juicer Pro
If a defect exists and subject website at nutribullet.com, simply to this limited warranty, at its click the contact us link, fill out option NutriBullet will (1) repair and submit the customer contact the product at no charge, form and we will be glad to using new or refurbished help you. - Page 29 NutriBullet products distributed ® rights which vary from state to by or for NutriBullet that can be state. NutriBullet is not liable identified by the “NutriBullet” for any damage to products trademark, trade name, logo not covered by this warranty and bar code.
- Page 30 WARRANTIES, REMEDIES AND CONDITIONS, WHETHER Some states and provinces ORAL OR WRITTEN, EXPRESS do not allow the exclusion OR IMPLIED. NUTRIBULLET or limitation of incidental or SPECIFICALLY DISCLAIMS ANY consequential damages or AND ALL IMPLIED WARRANTIES, exclusions or limitations on the...
-
Page 31: Warranty Registration
Please visit warranty-registration or call 1 (800) 523-5993 to register your new NutriBullet Juicer Pro™. You will be asked to enter the Serial Number* of your product, along with the purchase date and place of purchase. The registration will enable us... - Page 33 1 (800) 523-5993 | nutribullet.com NUTRIBULLET is the registered trademark of CAPBRAN HOLDINGS, LLC ® Copyright © 2020 CAPBRAN HOLDINGS, LLC. Distributed by CAPITAL BRANDS DISTRIBUTION, LLC. LOS ANGELES, CA 90025 USA All Rights Reserved. MADE IN CHINA Illustrations may differ from the actual product. We are constantly striving to improve our products, therefore the specifications contained herein are subject to change without notice.
