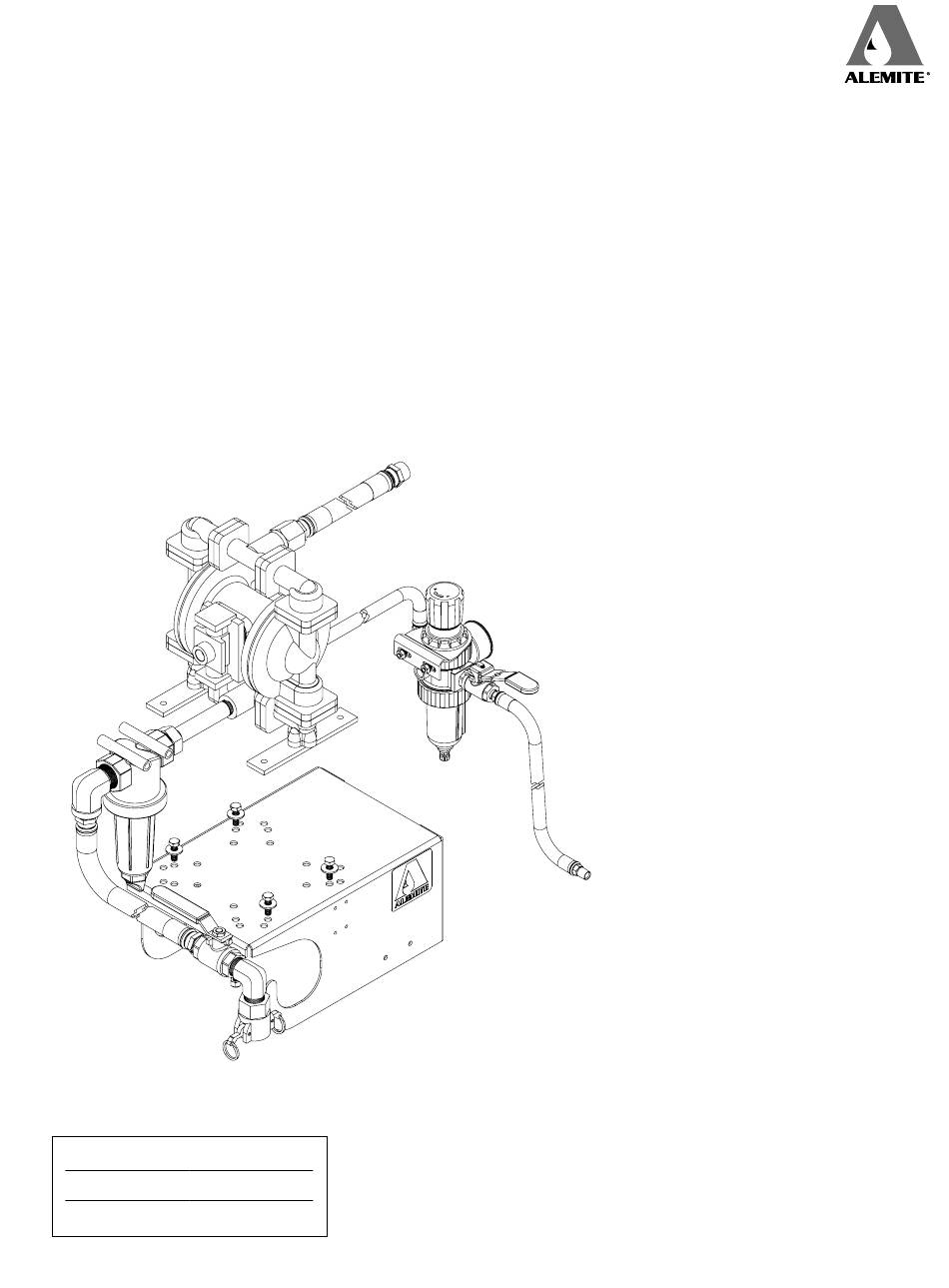

- Page 1 Service and installation manual Fluid evacuation system Model 8595-C Date of issue January 2024 Form number 671044 Version...
-
Page 2: Table Of Contents
Contents Safety * Description Optional kits Installation and maintenance Installation Maintenance Service parts Indicates change... -
Page 3: Safety
Safety * Explanation of signal WARNING Do not operate equipment words for safety without reading and fully Read and carefully observe these installation understanding safety warn- instructions before installing/operating/ ings and instructions troubleshooting Pump must be installed, Failure to follow warnings and NOTE maintained and repaired exclusively by Emphasizes useful hints and recom-... -
Page 4: Description

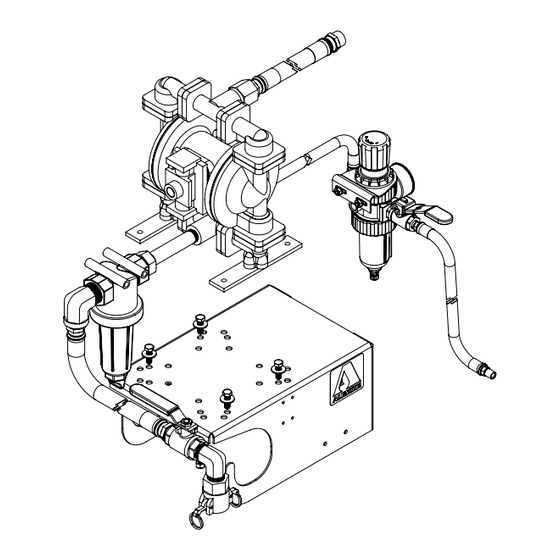

Model 8595-C includes a pump for transferring non-flammable fluids such as used motor oil, coolant or windshield cleaner... -
Page 5: Installation And Maintenance
Installation and maintenance Installation WARNING WARNING Do not exceed lowest pressure rating of • Make sure pump and equipment used Depending on type of fluid to be evacuated, any component in system or located in pumping area are fluid evacuation system installation and use Failure to comply may result in grounded... -
Page 6: Service Parts
Fig. IPB 1 Service parts... - Page 7 Service parts Item Description Quantity Part Air line hose – Full port ball valve, in NPT – Nipple, in × in NPTF 327033 Filter/regulator, 7504-1 * Elbow, in × in NPTF – Union adapter 1000-44 Ball valve, in NPTF 338564 1) 2) Check valve, 343274...
- Page 8 Fig. IPB 2 Fig. IPB 3 Wall bracket kit (pump) (21) Wall bracket kit (FRL) (22) Service parts Item Description Quantity Wall mount bracket Hex head cap screw, in -18 Flat washer, Elastic stop nut, in -18 Bracket Hex nut with exterior lock washer, 6-32 Pan head screw, 6-32 ×...
- Page 9 This page left intentionally blank...
- Page 10 ® Alemite, LLC is a registered trademark The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written permission is granted Every care has been taken to ensure the accuracy...
