Alemite 8702 Series Service Manual

Description
The major components of the 8702 series pumps consist
of an hydraulic reciprocating motor and a double acting pump
tube.
These hydraulic pumps are designed to deliver a range of
light to heavy lubricants directly from their original
container.
The follower tube contains a 1/4 " NPTF (f) inlet to allow
the return of lubricant to the container when relieving system
pressure.
Each pump model is designed with a pump tube length to
accommodate different size containers. See Figure 1.
Specifications
Hydraulic Motor
Piston Diameter x Stroke
Inches Centimeters
1 5/16 x 1-5/8 3.3 x 4.1
For information on the air motor, refer to Service Guide SER 340952
Pump Tube
Max. Material
Pressure
Material
Outlet
psi Bars
3/8 " NPTF (f) 7500 517
* For detailed information, refer to Figure 3
Table 1 Model 8702 Series Specifications
-A1
This document contains confidential information that is the property of Alemite LLC
670978
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
High-Pressure Hydraulic Pump
Max. Hydraulic
Pressure
Hydraulic
psi
1/4 " NPSI (f) 600
Max. Delivery/Minute Displacement
(Approximate)* per Cycle
3
Ounces Grams
in
6 454 0.277
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
Bars
41.3
Container Size
3
cm
Pump Model
4.54
8702-A
8702-B
8702-C

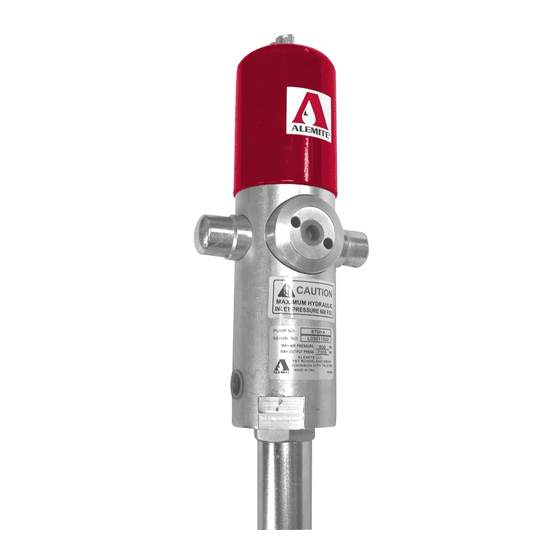

Figure 1 High-Pressure Hydraulic Pump
©
2010 by Alemite LLC
Hydraulic
X
lbs kg Inches Cm Inches
35 20 19 48.3 29-1/2
120 50 27-3/4 70.5 38-1/4
400 180 37 94 47-1/2
Model 8702 Series
Revision (1-10)
8702
Y
Cm
75
97.2
120.7
SER 8702
